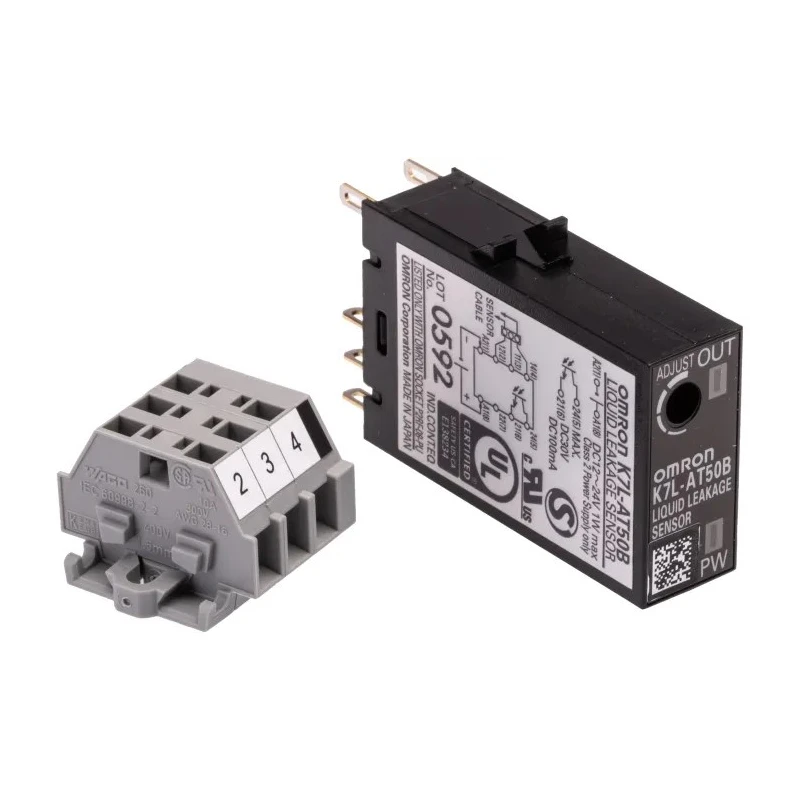

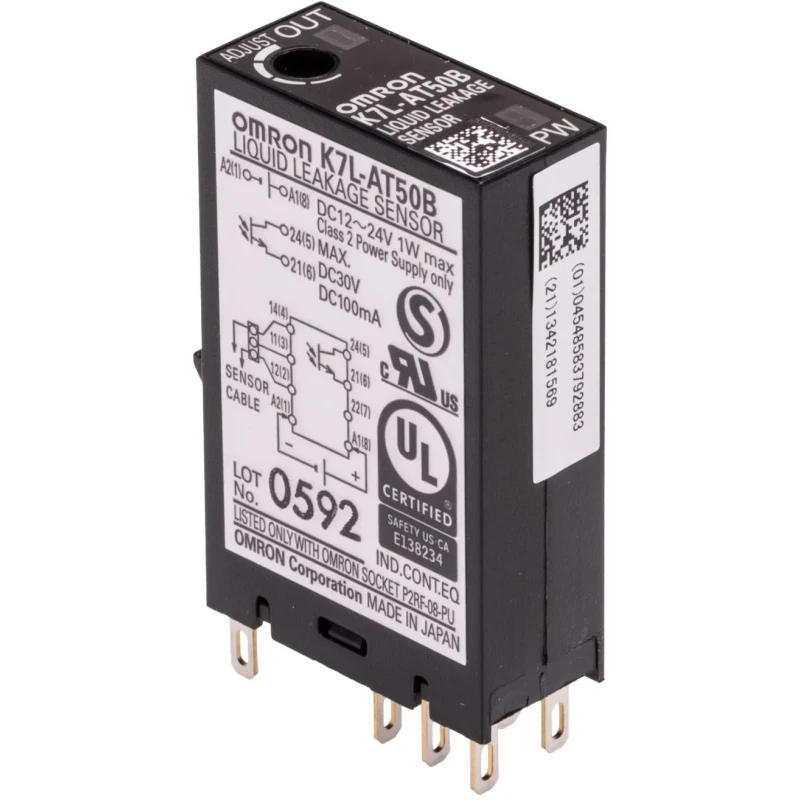

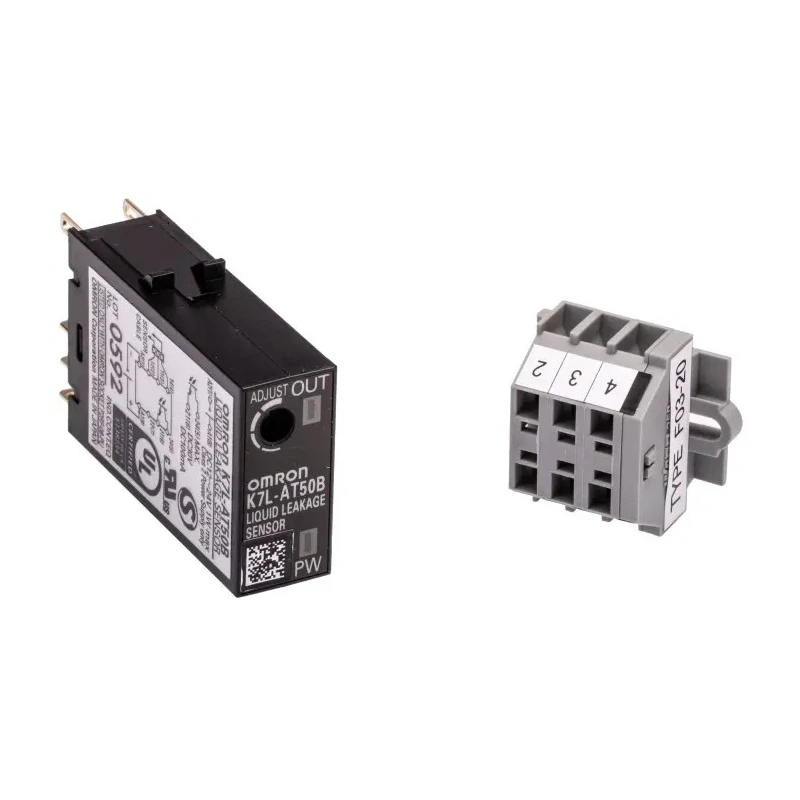

Omron Liquid Leak Sensor DIN Rail 1 Input 24V DC PNP/NPN K7L-AT50B
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | Input 24V dc-Rated PNP/NPN RS Stock No |
| Brand | Omron |
| Response time | 800ms |
| Model | K7L-AT50B |
| SENSITIVITY | 50mΩ |
| Mount Type | DIN Rail |
| Overall Length | 12.8mm |
| Number of inputs | 1 |
| Output type | PNP/NPN |
| Series | K7L |
| Overall Width | 46mm |
| Input Type | Voltage |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Number of outputs | 1 |
| Terminal type | Screw |
| Standards/Approvals | CE, CSA Certified, cULus, UL Certified |
| Maximum Supply Voltage | 24V dc |
| Overall Depth | 28.8mm |
| Probe Voltage | 12V |
Key Features
- Detects liquid leaks efficiently with high sensitivity from 250KΩ to 50MΩ.
- Supports DIN rail mounting for stable integration into control panels.
- Operates with a supply voltage range of 12 to 24V DC for flexible installations.
- Features 1 input, 1 output, and response time of 800 ms.
- Works reliably across temperatures from -10°C to 55°C.
- Compatible with both PNP and NPN output types for wider application support.
- Screw terminal design enables simple and secure electrical connection.
- Certified to CE, CSA, cULus, UL for industrial compliance.
Product Description
The Omron K7L-AT50B Liquid Leak Sensor is engineered for high-sensitivity leak detection in industrial, HVAC, manufacturing, and water treatment environments. It utilizes a wide sensitivity range (250KΩ to 50MΩ) to reliably spot even minor liquid leaks, minimizing potential damage and downtime. This sensor is ideal for the early detection of fluid presence in control systems, machinery, enclosures, and process lines.
Equipped for DIN rail mounting, the K7L-AT50B ensures straightforward installation within electrical and automation panels. The sensor operates with a flexible power supply range (12 to 24V DC) and delivers both PNP and NPN output signals, facilitating integration with diverse monitoring or alarm systems. It features a rapid response time of 800 ms and supports reliable detection with a single input and output configuration.
The sensor's robust construction includes compact dimensions (12.8 mm length, 28.8 mm depth, 46 mm width) and a secure screw terminal interface. Its operational temperature (-10°C to 55°C) allows continued functionality in challenging industrial settings. This design, along with compliance to CE, CSA, cULus, and UL standards, positions the K7L-AT50B for universal acceptance in regulated installations.
Applications span the monitoring of pumps, valves, tanks, and pipework for leak-related faults, preventive maintenance in manufacturing lines, water ingress detection in HVAC systems, and safety assurance in water treatment facilities. The wide sensitivity range efficiently identifies small leaks, ensuring early warning and reducing the risk of operational disruptions.
Industries benefitting from this sensor include Industrial Automation, HVAC, Water Treatment, Manufacturing, Facility Maintenance, Commercial Plant Operations, and Laboratory Safety.
Browse more Omron sensors and full industrial sensor solutions in the EnvMart Level Sensor category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The K7L-AT50B operates with a supply voltage range of 12 to 24V DC.
It has a response time of 800 ms, allowing for quick detection of liquid leaks.
This model has dimensions of 12.8 mm in length, 28.8 mm in depth, and 46 mm in width.
It supports both PNP and NPN output types, providing flexibility for integration with various systems.
The sensitivity range of this sensor is from 250KΩ to 50MΩ, enabling it to detect even minor liquid leaks.
It is designed for DIN rail mounting, facilitating easy integration into control panels.
The K7L-AT50B operates reliably within a temperature range of -10°C to 55°C.
This model features a screw terminal design, allowing for secure and simple electrical connections.
Industries such as Industrial Automation, HVAC, Water Treatment, and Manufacturing can benefit from its leak detection capabilities.
It is certified to CE, CSA, cULus, and UL standards, ensuring compliance for industrial applications.
This sensor has 1 input and 1 output, designed for straightforward leak detection applications.
The maximum supply voltage for this sensor is 24V DC.
