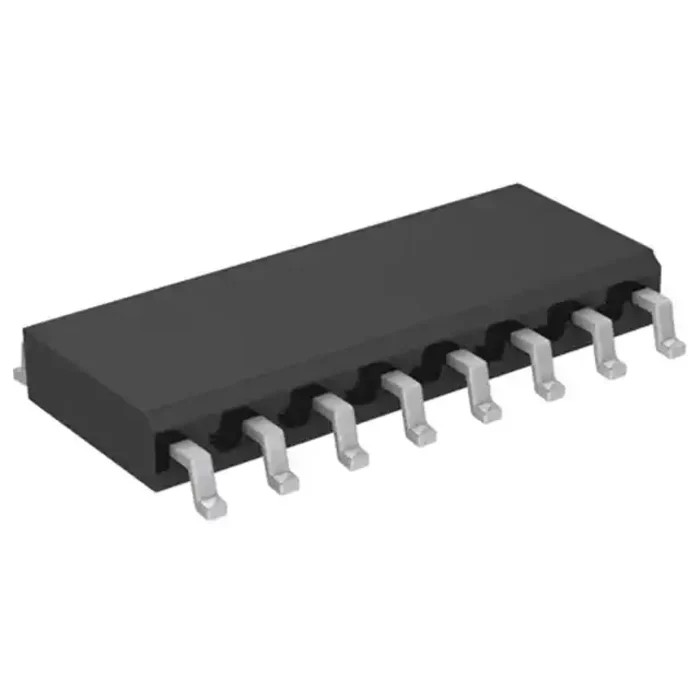

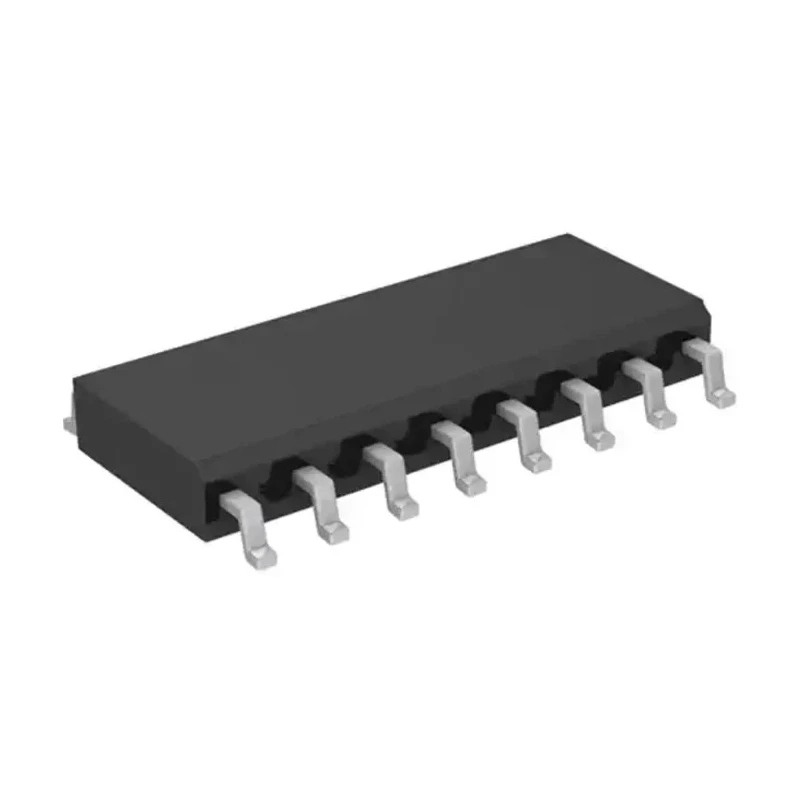

Renesas Electronics 2-Channel Line Transceiver CMOS Logic Function 3 State Output 16-Pin SOIC Package HIN202CBNZ
Specifications
| Country of Origin | India |
|---|---|
| Brand | Renesas Electronics |
| Height | 1.75mm |
| Length | 10mm |
| Model | HIN202CBNZ |
| Width | 6.2mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | HIN202 |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| IC Type | Transceiver IC |
| Number Of Channels | 2 |
| Pin Count | 16 |
| Maximum Supply Voltage | 5V |
| Logic Family | CMOS |
| Logic Function | Transceiver |
| Maximum Propagation Delay Time @ CL | 10μs |
| Supply Current | 5mA |
Key Features
- Meets all EIA RS-232E and V.28 specifications for line transceivers.
- Operates from a single +5V power supply with low typical power consumption of 5mA.
- Includes on-board voltage doubler and inverter for ±12V level generation.
- Features low power shutdown mode with typical current of 1μA.
- Provides 2 channels with three-state receiver TTL/CMOS outputs.
- Compact surface mount SOIC package with 16 pins and dimensions 10mm x 6.2mm x 1.75mm.
- Operating temperature range from 0°C to 70°C suitable for commercial applications.
- High data rate up to 120kbit/s for reliable communication.
Product Description
Renesas Electronics HIN202CBNZ is a 2-channel line transceiver featuring CMOS logic family and 3 state output technology in a 16-pin SOIC surface mount package. It is specifically designed to meet all the EIA RS-232E and V.28 standards, making it ideal for line interface applications requiring ±12V signals without an external power supply.
This device requires only a single +5V power supply and integrates a voltage doubler and inverter circuit onboard, which generates the necessary voltage levels internally. The typical operating current is low at 5mA, and it includes an efficient low power shutdown mode drawing just 1μA, making it suitable for power-sensitive designs.
The HIN202CBNZ supports data rates up to 120kbit/s providing reliable communication for RS-232 interface systems. The device has an operating temperature range of 0°C to 70°C, which covers most commercial environments. The package measures 10mm in length, 6.2mm in width, and 1.75mm in height, fitting compact PCB layouts.
This non-automotive line transceiver offers two channels and features three-state TTL/CMOS compatible receiver outputs, offering flexibility in various industrial, laboratory, and communication equipment applications.
Meets all EIA RS-232E and V.28 specifications for reliable line interface operation. Single +5V supply operation with integrated charge pumps for ±12V voltages. Low power consumption and shutdown current enhance efficiency in electronic designs.
Compact 16-pin SOIC surface mount package enables space saving on PCBs. Operating temperature from 0°C to 70°C suitable for standard commercial electronics. High data rate of 120kbit/s ensures efficient serial communication.
Two independent channels provide flexibility in multi-line communication systems. Three-state outputs allow easy bus sharing and interfacing with various logic levels.
The Renesas Electronics HIN202CBNZ is widely used in industrial automation, laboratory instrumentation, computer communication equipment, and embedded systems requiring reliable RS-232 interface solutions.
Discover more semiconductor products and similar Line Interface ICs in the EnvMart Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 5V.
It supports a high data rate of up to 120kbit/s, ensuring reliable communication for RS-232 interface systems.
This model has dimensions of 10mm in length, 6.2mm in width, and 1.75mm in height.
It features two independent channels, providing flexibility for multi-line communication systems.
It provides three-state TTL/CMOS compatible outputs, allowing for easy bus sharing and interfacing with various logic levels.
The typical supply current is 5mA, making it suitable for power-sensitive designs.
The operating temperature range is from 0°C to 70°C, suitable for commercial applications.
It comes in a 16-pin SOIC surface mount package, which is compact for PCB layouts.
Yes, it includes a low power shutdown mode with a typical current of just 1μA.
Yes, it meets all EIA RS-232E and V.28 specifications for line transceivers.
The maximum propagation delay time is 10μs at a specified load capacitance.
The logic family for this line transceiver is CMOS, which is suitable for various applications.
