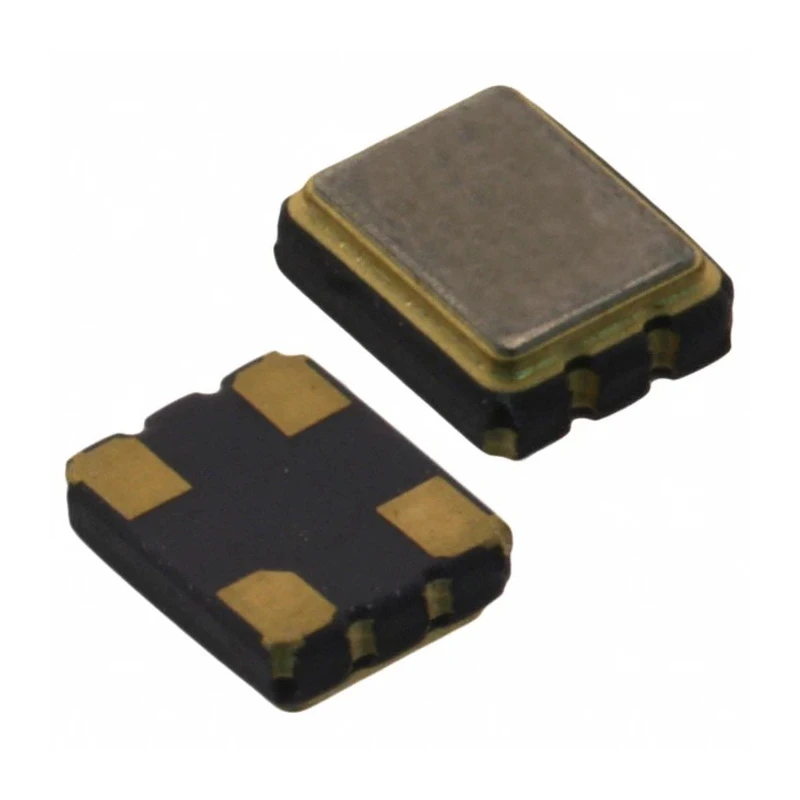

Renesas Electronics 48MHz XO Oscillator, ±25 ppm LVCMOS, 4-Pin Surface Mount XLH736048.000000I

Renesas Electronics XLH736048.000000I is a 48MHz ultra-precision XO crystal oscillator featuring ±25 ppm frequency stability and LVCMOS output level. Designed as a 4-pin surface mount device, this oscillator provides reliable and precise clock generation for industrial, telecommunications, and consumer electronics applications.

This product operates over a temperature range of -20°C to +70°C, supporting a supply voltage of 2.5V or 3.3V, with a maximum supply voltage rating of 5V. The compact package measures 7mm length, 5mm width, and 1.3mm height, making it suitable for space-constrained circuit board designs.

The oscillator utilizes proprietary ASIC technology to minimize phase jitter, offering phase jitter values from 750fs to 890fs typical across a bandwidth of 12kHz to 20MHz. These characteristics make it ideal for timing-sensitive applications in communications equipment and instrumentation.

The surface mount design with 4 pins ensures easy and robust mounting on PCBs. The XL series devices from Renesas provide a variety of package sizes and frequency ranges from 0.75MHz up to 1350MHz. This model additionally complies with RoHS environmental standards, emphasising its suitability for modern, eco-friendly electronics manufacturing.

Operates at 48MHz frequency with XO oscillator type. LVCMOS output compatible for digital logic systems. Wide operating temperature from -20°C to +70°C ensures application versatility. Compact surface mount package: 7mm x 5mm x 1.3mm.

Low phase jitter enhances signal integrity. Supply voltage options of 2.5V or 3.3V with max 5V rating. 4-pin mounting facilitates circuit board assembly. Compliance with RoHS environmental standards.

This crystal oscillator is widely applied in industrial electronics, telecommunications, computing devices, instrumentation, and consumer electronics requiring precise timing signals. Its compact form factor and robust performance profile make it a reliable choice for designers and engineers.
