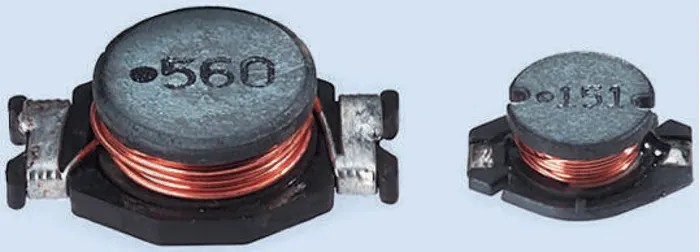

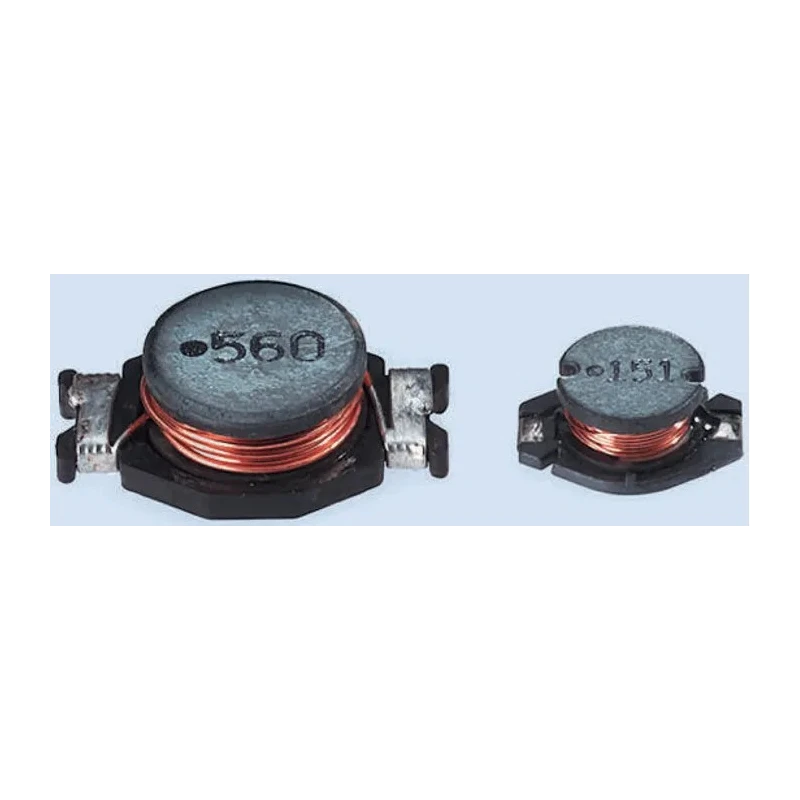

Wurth Elektronik WE-PD4 Unshielded Wirewound Surface Mount Inductor Ferrite Core 100 μH ±10 % 2 A 7445720
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13.5mm |
| Brand | Wurth Elektronik |
| Height | 7mm |
| Length | 22mm |
| Model | 7445720 |
| Depth | 15mm |
| Packaging | Tape & Reel |
| Series | WE-PD4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | REACH, JEDEC JS709B, RoHS |
| Maximum DC Current | 2A |
| Maximum DC Resistance | 202mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 6.2MHz |
| Inductor Construction | Wirewound |
Key Features
- Compact wirewound design for efficient power management.
- Ferrite core ensures low loss and high reliability.
- Operates within a wide temperature range from -40°C to 125°C.
- Maximum DC resistance of 202 mΩ improves performance.
- Suitable for high efficiency SMPS and interference suppression.
- Surface mount termination compatible with automated assembly.
- Maximum self-resonant frequency up to 6.2 MHz for high frequency applications.
- Packaged in tape and reel format for manufacturing efficiency.
Product Description
Wurth Elektronik 7445720 is an unshielded wirewound Surface Mount Inductor featuring a ferrite core with 100 μH inductance and ±10% tolerance. Designed for power and electronic circuit applications requiring reliable inductance up to 2 amps DC current, this component offers a compact and durable solution.
The wirewound construction with a low loss ferrite core provides efficient inductance with minimal energy dissipation. It withstands operating temperatures from -40°C to 125°C, ensuring robust performance in demanding industrial and commercial electronic environments.
The inductor has a maximum DC resistance of 202 mΩ and a maximum self-resonant frequency of 6.2 MHz, enabling operation in high frequency switching power supplies and interference suppression circuits.

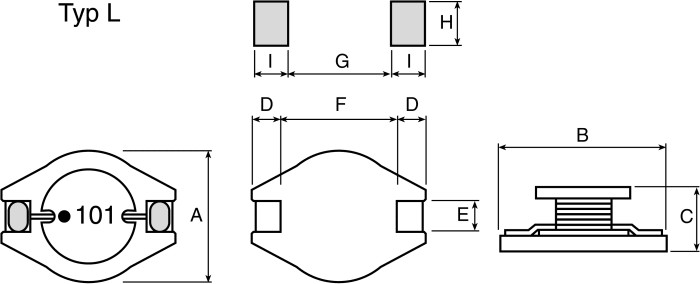

Its surface mount termination style and tape & reel packaging enable easy integration into automated PCB assembly lines, improving production efficiency. Dimensions include length of 22 mm, diameter of 13.5 mm, height of 7 mm, and depth of 15 mm, making it suitable for compact electronic designs.
Compact wirewound design for efficient power management. Ferrite core ensures low loss and high reliability. Operates within a wide temperature range from -40°C to 125°C. Maximum DC resistance of 202 mΩ improves performance.
Suitable for high efficiency SMPS and interference suppression. Surface mount termination compatible with automated assembly. Maximum self-resonant frequency up to 6.2 MHz for high frequency applications. Packaged in tape and reel format for manufacturing efficiency.
Compliance with REACH, JEDEC JS709B and RoHS standards. Compact dimensions for versatile industrial use.
This inductor is ideal for applications in industrial electronics, power supply units, electronic manufacturing, and embedded system design. Its compliance to environmental and quality standards ensures dependable use in commercial and industrial equipment.
Explore a wide range of Wurth Elektronik inductors and components for your electronics projects at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 100 μH with a tolerance of ±10%.
This unit can handle a maximum DC current of 2 A.
The maximum self-resonant frequency is up to 6.2 MHz, suitable for high frequency applications.
The dimensions are 22 mm in length, 13.5 mm in diameter, 7 mm in height, and 15 mm in depth.
It operates within a wide temperature range from -40°C to 125°C.
The maximum DC resistance is 202 mΩ, which improves performance in applications.
This inductor features a surface mount termination style, compatible with automated assembly processes.
The inductor is constructed with a ferrite core and features a wirewound design.
It complies with REACH, JEDEC JS709B, and RoHS standards.
It is packaged in tape and reel format, facilitating efficient integration into manufacturing processes.
This model is suitable for applications in high efficiency switching power supplies and interference suppression circuits.
This inductor belongs to the WE-PD4 series from Wurth Elektronik.
