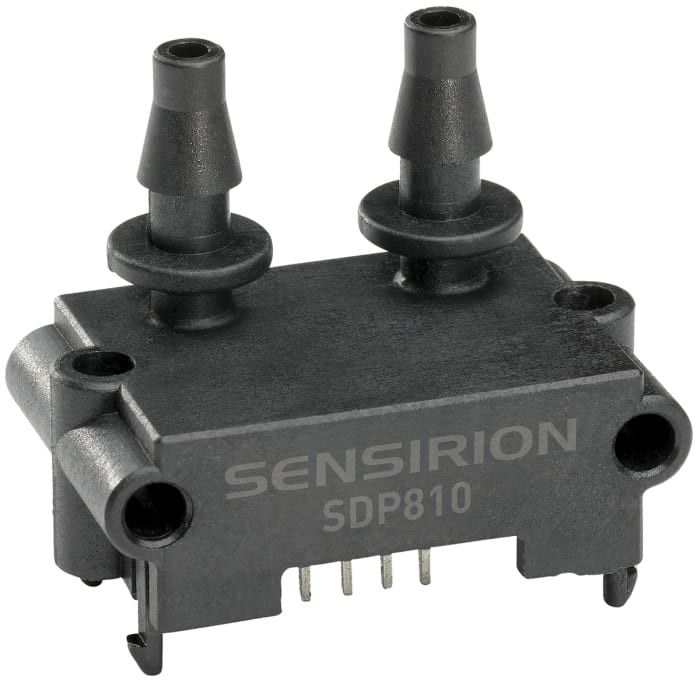

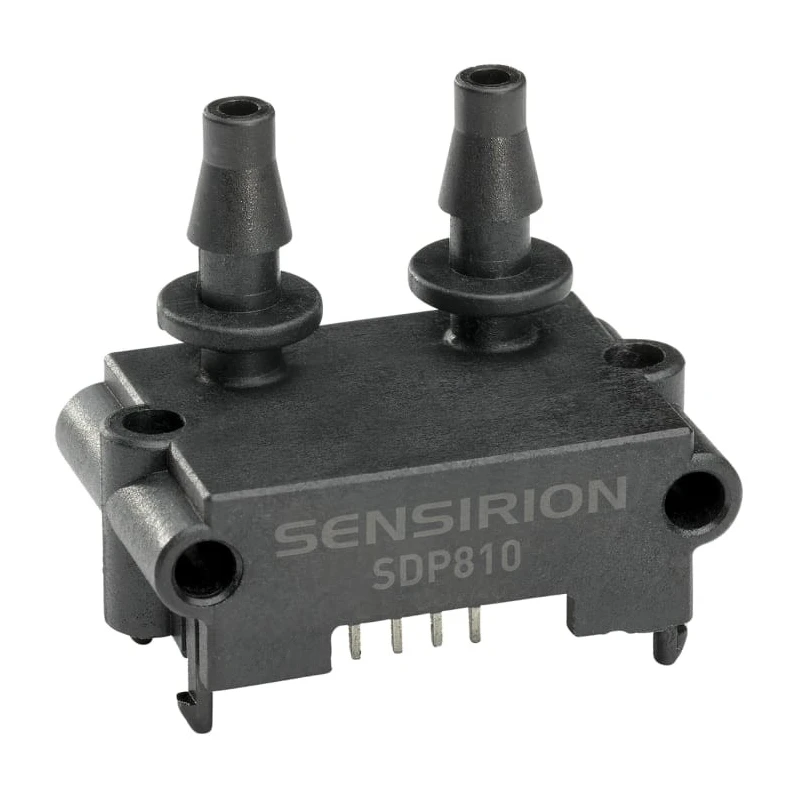

Sensirion Analog Differential Pressure Sensor Surface Mount 4 Pin 3-5.5V 500 Pa SDP816-500Pa

Free Delivery in India | Lowest Global Shipping Charges

Sensirion Analog Differential Pressure Sensor Surface Mount 4 Pin 3-5.5V 500 Pa SDP816-500Pa

Name: Sensirion Analog Differential Pressure Sensor Surface Mount 4 Pin 3-5.5V 500 Pa SDP816-500Pa
Brand: Sensirion
SKU: 201404
Price: 30.37 USD
Availability: InStock



Category Pressure Sensors Brand Sensirion Condition New

Specifications

Country of Origin	Switzerland
Accuracy	±0.1 Pa
Brand	Sensirion
Maximum Operating Pressure	500 pA
Height	23.75mm
Length	29mm
Model	SDP816-500Pa
Sensor Type	Differential Pressure Sensor
Mount Type	Surface
Series	SDP816-500Pa
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Maximum Output Voltage	900mV
Pin Count	4
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	3V
Minimum Output Voltage	100mV
Minimum Operating Pressure	-50Pa
Maximum Overload Pressure	1bar

Key Features

Operates on a supply voltage range of 3 V to 5.5 V providing a stable output voltage.
Employs CMOSens technology ensuring high signal-to-noise ratio and long-term stability.
Highly accurate with ±0.1 Pa accuracy over a measurement range of -50 Pa to 500 Pa.
Operates effectively in temperatures ranging from -40°C up to 85°C.
Analog ratiometric voltage output with configurable linear or square root transfer characteristic by pin selection.
Maximum overload pressure of 1 bar with output voltage range from 100 mV minimum to 900 mV maximum.
Manufactured in Switzerland ensuring high quality and reliability standards.
Does not comply with automotive standards specifically, targeted at industrial and laboratory use cases.

Product Description

Sensirion SDP816-500Pa is a high-performance analog differential pressure sensor designed for precise measurement in a variety of industrial, laboratory, and HVAC applications. Featuring a surface mount configuration with 4 pins, this sensor operates using CMOSens technology to deliver an accurate and stable analog voltage output proportional to measured pressure differences.

The device supports operation between supply voltages of 3 V to 5.5 V and withstands a maximum overload pressure of 1 bar, ensuring robust performance.

Physically compact with dimensions of 29 mm length and 23.75 mm height, the SDP816-500Pa allows easy integration onto printed circuit boards. It is suitable for air and other non-aggressive gases, providing reliable measurement even at very low differential pressures. The sensor can operate within a wide temperature range from -40°C to +85°C, making it versatile for diverse environments.

The output is configurable between linear and square root response curves via a pin, with output voltages ranging from 100 mV minimum to 900 mV maximum. The sensor is not designed specifically for automotive standards but excels in industrial, laboratory, HVAC, and manufacturing process control systems.

Manufactured in Switzerland, the SDP816-500Pa sensor adheres to high-quality production standards ensuring consistent performance. It is widely used in air flow monitoring, ventilation, pneumatic control, and other applications requiring precise differential pressure sensing.

Operates with supply voltages from 3 V to 5.5 V with analog voltage output. Accuracy of ±0.1 Pa over a measurement range from -50 Pa to 500 Pa. Compact surface mount design with 4 pins and dimensions 29 mm × 23.75 mm. Wide operating temperature range from -40°C to 85°C.

Maximum overload pressure capability of 1 bar for robustness. Configurable output transfer function (linear or square root). Manufactured in Switzerland for quality assurance. Explore the complete range of pressure sensor ICs and electronics components on EnvMart for your electronic design and manufacturing needs.
