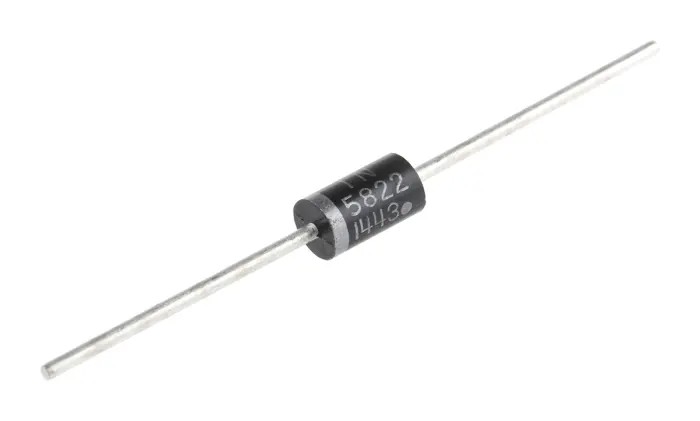

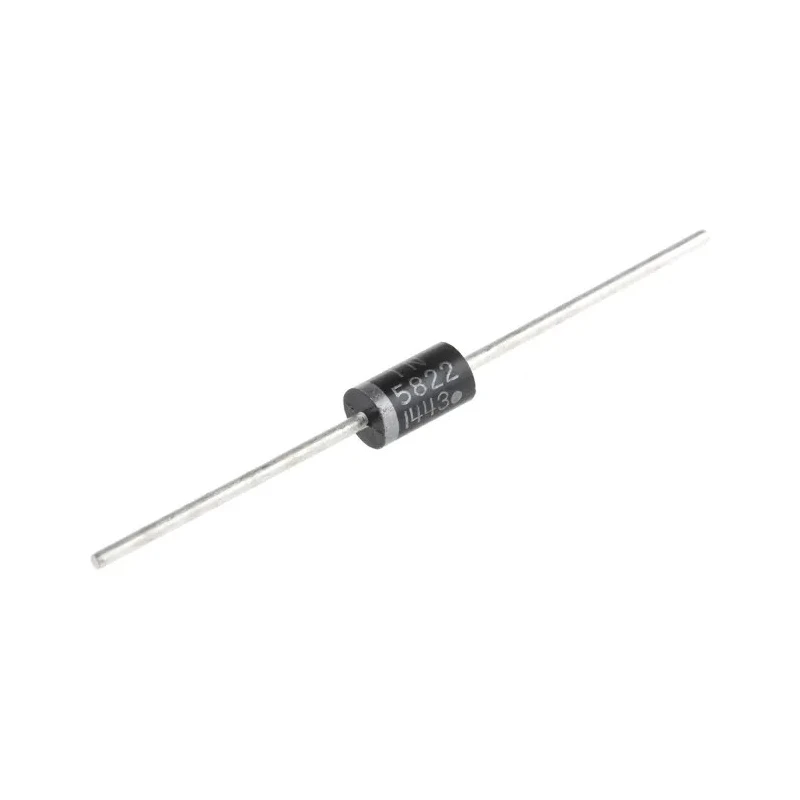

onsemi 40 V 3 A Schottky Diode 2-Pin DO-201AD 1N5822RLG

onsemi 1N5822RLG is a high-performance Schottky diode designed for low voltage and high-frequency rectification applications. This diode features a DO-201AD through-hole package measuring approximately 9.5 mm in length and 5.3 mm in diameter, making it compact and easy to mount on printed circuit boards. Its maximum repetitive reverse voltage rating of 40 V and continuous forward current of 3 A make it suitable for many power electronics designs.

The diode exhibits a low forward voltage drop of 950 mV, which contributes to higher efficiency and reduced heat generation during operation. It also withstands high surge currents up to 80 A, catering to transient conditions efficiently. With a peak reverse current of only 2 mA and a fast reverse recovery time of 1.6 ns, it supports rapid switching required in modern electronic circuits.

Operating over a temperature range from -65°C to 125°C, this diode ensures reliability in demanding environments. Its epoxy moulded case provides robust protection and stress resistance, while the lightweight design (approximately 11.7 mg) supports automated assembly processes.

This Schottky diode is commonly used for applications including power rectification, freewheeling diodes in motor drives, polarity protection, and switching power supplies in industrial and commercial electronics. The product is RoHS compliant and suitable for automated manufacturing lines.

Through hole mount type with compact DO-201AD package. Maximum forward voltage drop of 950 mV ensures efficient operation. High surge current capability up to 80 A peak forward surge current. Wide operating temperature range from -65°C to 125°C.

Fast recovery time of 1.6 nanoseconds for high-frequency applications. Low peak reverse current of 2 mA for improved performance. Dimensions approximately 9.5 mm length and 5.3 mm diameter. Suitable for power rectification, freewheeling, and polarity protection in electronic circuits.

Epoxy moulded lightweight construction designed for automated board assembly.
