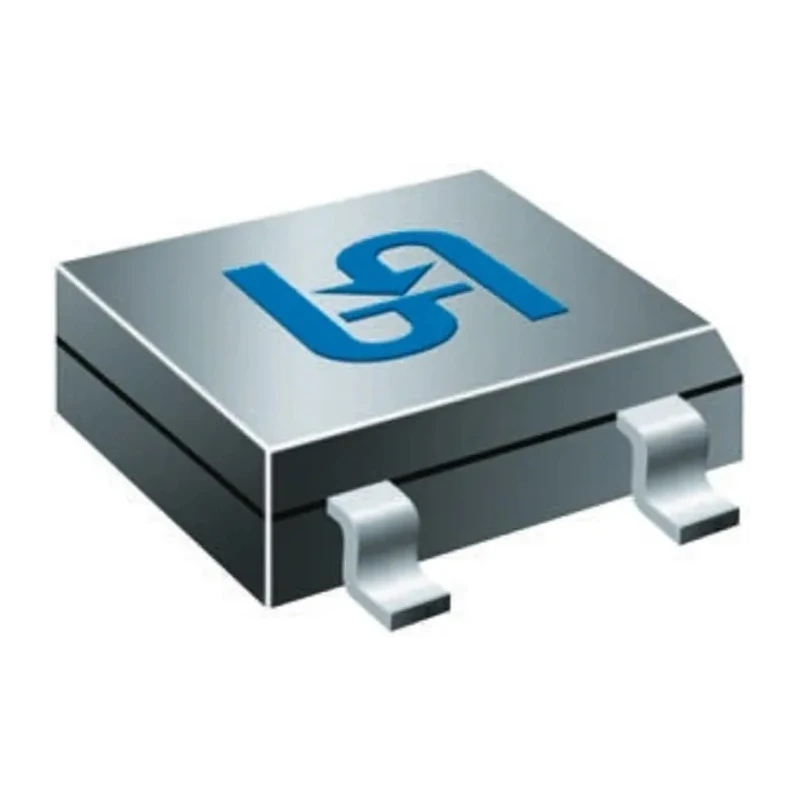

Taiwan Semiconductor Bridge Rectifier, Surface Mount, 800 V VRRM, 50 A Surge, 4-Pin Single DBLS206G RD

Taiwan Semiconductor DBLS206G RD Bridge Rectifier is a high-quality surface mount device designed for AC to DC conversion in power and electronic circuits. The device features an 800 V peak reverse repetitive voltage (VRRM) rating, allowing it to withstand high voltage transients while providing reliable performance.

This 4-pin single configuration bridge rectifier utilizes a glass passivated junction and molded plastic package, ensuring durability and cost efficiency. Its compact footprint with dimensions measuring 8.51 mm in length, 6.5 mm in width, and 2.6 mm in height facilitates automated PCB assembly processes.

The device supports a maximum continuous forward current of 2 A and can withstand surge currents up to 50 A, making it suitable for demanding industrial and automotive applications. Its operational temperature range from -55°C to 150°C ensures stable performance in harsh environments.

The low peak forward voltage of 1.15 V improves efficiency by minimizing power loss during conduction. Additionally, a peak reverse current of just 10 µA reduces leakage, contributing to energy savings and device longevity.

Compliant with automotive standard AEC-Q101, this rectifier meets stringent quality requirements for automotive electronic systems. Its robust design supports applications in power supply units, motor control, battery chargers, and industrial automation equipment.

Glass passivated junction enhances reliability and longevity. Constructed with molded plastic technique for cost-effective, durable assembly. 4-pin single configuration suitable for automated PCB placement. Maximum operating temperature of 150°C enables high-temperature operation.

Forward current rating of 2 A with a low peak forward voltage of 1.15 V. Operating temperature range from -55°C to 150°C ensures wide environmental tolerance. Meets automotive standard AEC-Q101 for rigorous quality assurance.

Compact dimensions with length 8.51 mm, width 6.5 mm, and height 2.6 mm. Peak reverse current of 10 µA minimizes leakage current under rated conditions. Ideal for industrial, automotive, and electronic power conversion applications.

This Taiwan Semiconductor Bridge Rectifier is a reliable solution for engineers designing power conversion circuits in industrial, automotive, HVAC, and manufacturing environments. Its performance and quality ensure stable DC output from AC sources, optimizing system efficiency and longevity.
