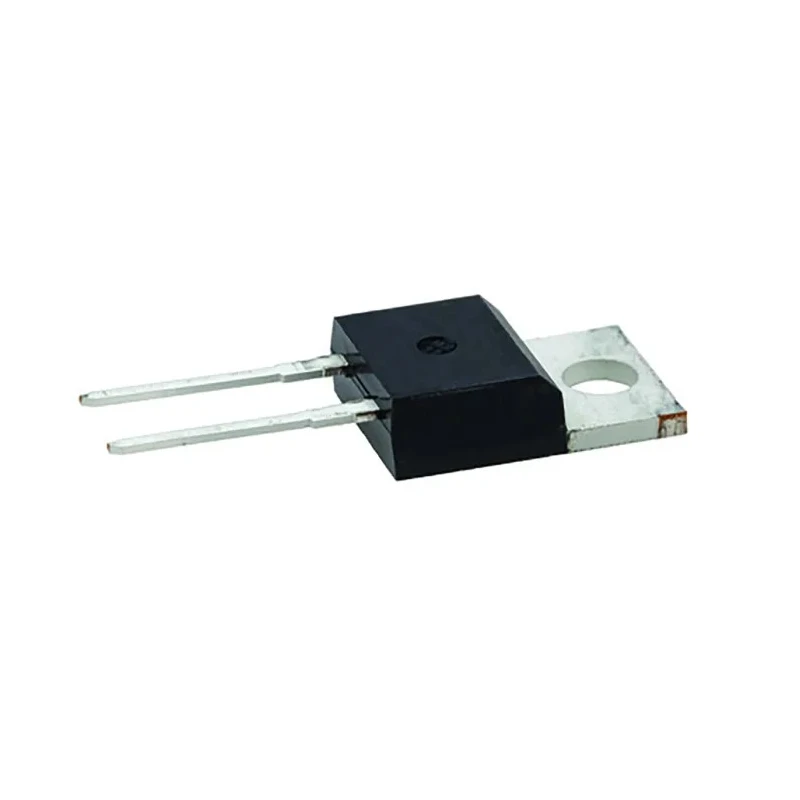

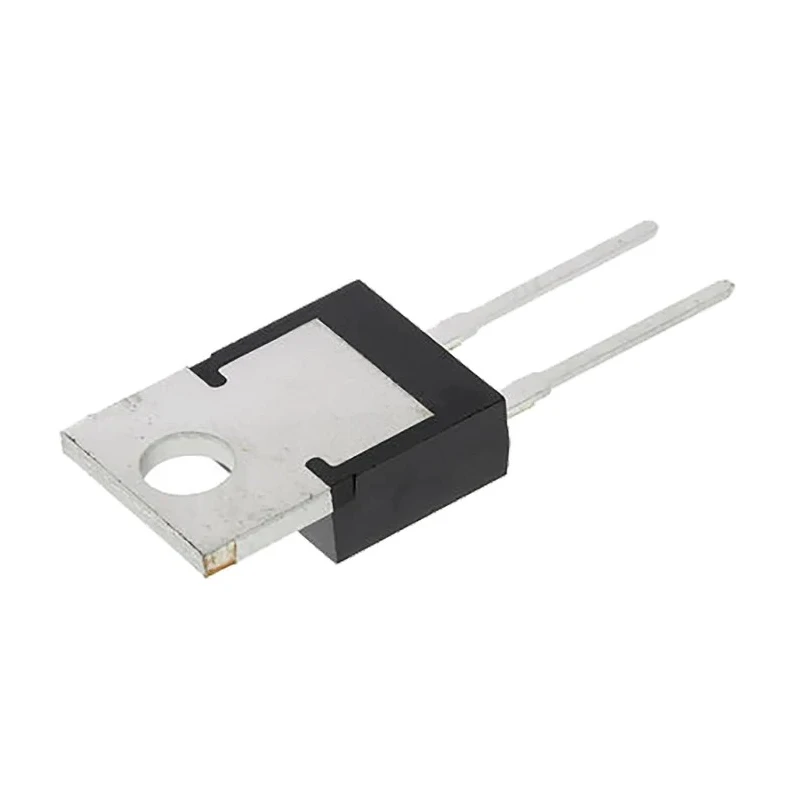

Infineon 650 V 60 A Switching Diode Single 3-Pin TO-220 Package IDP30E65D1XKSA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon 650 V 60 A Switching Diode Single 3-Pin TO-220 Package IDP30E65D1XKSA1

Name: Infineon 650 V 60 A Switching Diode Single 3-Pin TO-220 Package IDP30E65D1XKSA1
Brand: Infineon
SKU: 201791
Price: 1.31 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Infineon Condition New

Specifications

Country of Origin	Malaysia
Brand	Infineon
Height	15.95mm
Length	10.2mm
Model	IDP30E65D1XKSA1
Width	4.5mm
Mount Type	Through Hole
Series	IDP30E65D1
Maximum Operating Temperature	175°C
Package Type	TO-220
Minimum Operating Temperature	-40°C
Pin Count	3
Maximum Continuous Forward Current If	60A
Peak Reverse Repetitive Voltage Vrrm	650V
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	800μA
Peak Non-Repetitive Forward Surge Current Ifsm	180A
Maximum Forward Voltage Vf	1.7V
Low reverse recovery charge	forward voltage ratio for BiC performance

Key Features

Fast switching emitter controlled diode ideal for power electronics applications.
Maximum operating temperature up to 175°C ensuring reliable performance under thermal stress.
Designed for use in telecom, UPS, welding, and motor drive applications up to 30 kHz.
Low forward voltage of 1.7 V improves energy efficiency and reduces losses.
Compact TO-220 package with 3 pins facilitating through-hole mounting.
Peak non-repetitive forward surge current rating at 180 A for transient tolerance.
Low reverse recovery time and low reverse recovery charge for enhanced switching performance.
Operating temperature range from -40°C to 175°C for wide environmental suitability.

Product Description

Infineon IDP30E65D1XKSA1 switching diode is a single diode device designed for fast switching applications with a TO-220 3-pin package. It supports a peak reverse repetitive voltage of 650 V and can conduct a maximum continuous forward current of 60 A, making it suitable for demanding power electronics uses.

This diode features a peak forward surge current of 180 A, enabling tolerance to high transient current loads encountered in applications such as welding and power factor correction circuits. Its maximum forward voltage of 1.7 V contributes to low conduction losses during operation.

Operating temperature limits from -40°C to 175°C allow deployment in harsh industrial environments, including telecommunication and motor drive systems operating at switching frequencies up to 30 kHz.

The low reverse recovery charge and time enhance efficiency and reduce electromagnetic interference, important for advanced power management circuits. The TO-220 through-hole mounting package with dimensions 15.95 mm height, 10.2 mm length, and 4.5 mm width enables straightforward integration in printed circuit boards.

Fast switching emitter controlled diode ideal for power electronics applications. High maximum continuous forward current rating of 60 A for robust current handling. Maximum operating temperature of 175°C for reliable use in industrial conditions.

Peak reverse voltage of 650 V suited for protective circuitry and rectification. Low forward voltage drop to optimize energy efficiency. Peak surge current of 180 A for transient current accommodation. Low reverse recovery charge minimizes switching losses.

3-pin TO-220 package allows easy mounting and heat dissipation. Manufactured in Malaysia under rigorous quality controls.

This diode is highly suitable for industrial, laboratory, and commercial power electronics, including UPS systems, telecommunication power supplies, welding equipment, and motor drives. It delivers dependable switching performance combined with thermal stability and efficiency.

Explore similar semiconductor components and Schottky diodes at EnvMart to meet specialized electronic circuit requirements.
