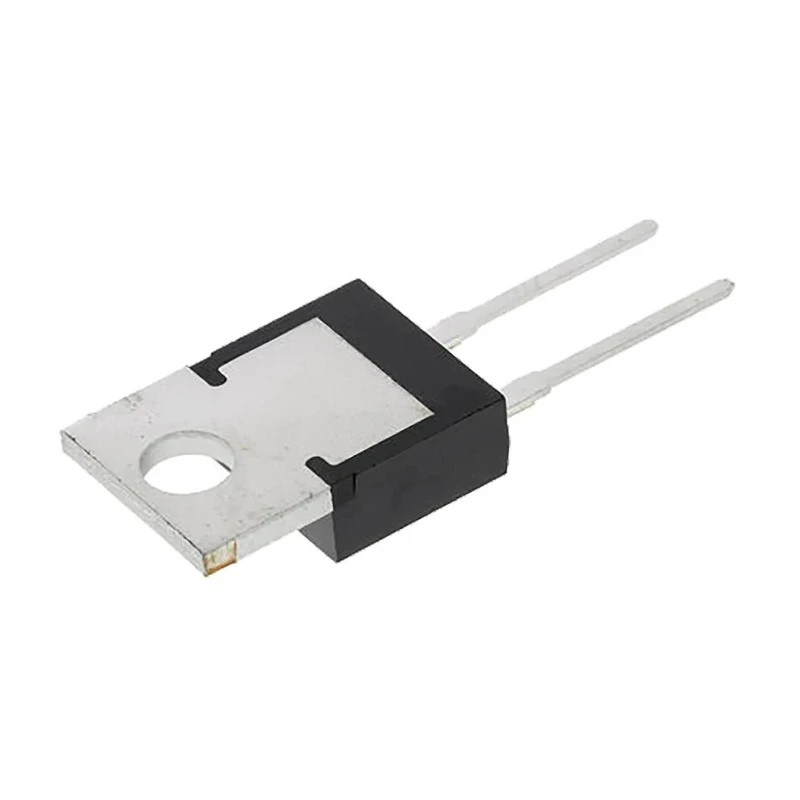

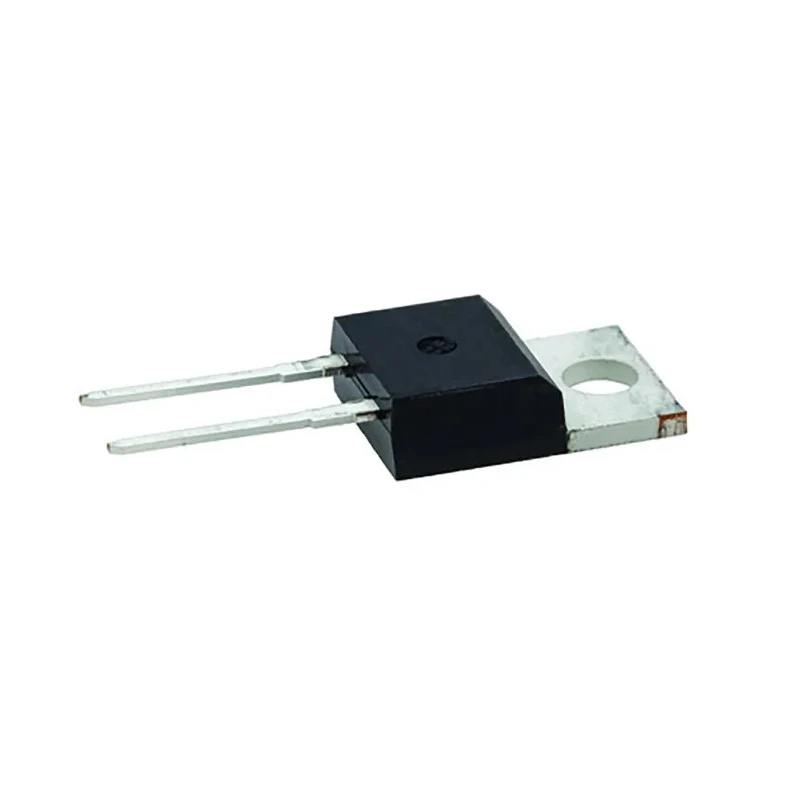

Infineon 1200 V 56 A Schottky Diode 3-Pin TO-220 IDH20G120C5XKSA1
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | Infineon |
| Height | 15.95mm |
| Length | 10.2mm |
| Model | IDH20G120C5XKSA1 |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Series | IDH20G120C5 |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 56A |
| Peak Reverse Repetitive Voltage Vrrm | 1200V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 630μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 198A |
| Maximum Forward Voltage Vf | 2.6V |
Key Features
- The diode supports maximum continuous forward current of 56 A.
- It offers peak reverse repetitive voltage rating of 1200 V.
- Constructed with Silicon Carbide (SiC) technology for enhanced efficiency.
- Designed with a 3-pin through-hole mount in a TO-220 package.
- Operates reliably within a temperature range of -55°C to 175°C.
- Features a maximum forward voltage drop of 2.6 V ensuring reduced power loss.
- Capable of handling peak non-repetitive forward surge current up to 198 A.
- Compact dimensions of 15.95 mm height, 10.2 mm length, and 4.5 mm width enable space-saving PCB design.
Product Description
Infineon IDH20G120C5XKSA1 is a high-performance Silicon Carbide (SiC) Schottky diode designed for demanding power electronic applications. Its 3-pin TO-220 through-hole package facilitates easy mounting and integration on PCBs.
This diode supports a continuous forward current of 56 A and a peak reverse repetitive voltage of 1200 V, making it ideal for high voltage circuit designs. The Schottky diode technology offers low forward voltage drop (2.6 V max), minimizing power dissipation and heat generation.
With an operating temperature range from -55°C to 175°C and a surge current capability of 198 A, the IDH20G120C5XKSA1 ensures robust and reliable performance in harsh industrial environments.
The device's thin wafer generation 5 technology enhances thermal characteristics and efficiency, particularly advantageous in Telecom Switch Mode Power Supplies (SMPS), high-end servers, uninterruptible power supplies (UPS), motor drives, solar inverters, PC Silverbox units, and lighting systems.
Key features include its single diode configuration, 3-pin count, and compact dimensions (Height: 15.95 mm, Length: 10.2 mm, Width: 4.5 mm). Its Malaysia origin guarantees quality manufacturing standards.
The diode supports maximum continuous forward current of 56 A. It offers peak reverse repetitive voltage rating of 1200 V. Constructed with Silicon Carbide (SiC) technology for enhanced efficiency. Designed with a 3-pin through-hole mount in a TO-220 package.
Operates reliably within a temperature range of -55°C to 175°C. Features a maximum forward voltage drop of 2.6 V ensuring reduced power loss. Capable of handling peak non-repetitive forward surge current up to 198 A. Compact dimensions enable efficient PCB layout and device integration.
Suitable for industrial, telecom, solar, UPS, and motor drive applications. Explore more products in Semiconductor Schottky Diodes & Rectifiers for your industrial and electronic needs at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 56 A.
It offers a peak reverse repetitive voltage rating of 1200 V.
This diode operates reliably within a temperature range of -55°C to 175°C.
The maximum forward voltage drop is 2.6 V, which helps in reducing power loss.
It is capable of handling a peak non-repetitive forward surge current of up to 198 A.
This model is designed in a 3-pin TO-220 through-hole package.
The dimensions are 15.95 mm in height, 10.2 mm in length, and 4.5 mm in width.
The diode is manufactured in Malaysia.
This model features a single diode configuration.
It is a Schottky rectifier, known for its low forward voltage drop.
The peak reverse current is specified at 630 μA.
This diode is suitable for applications in telecom, solar, UPS, and motor drives.
