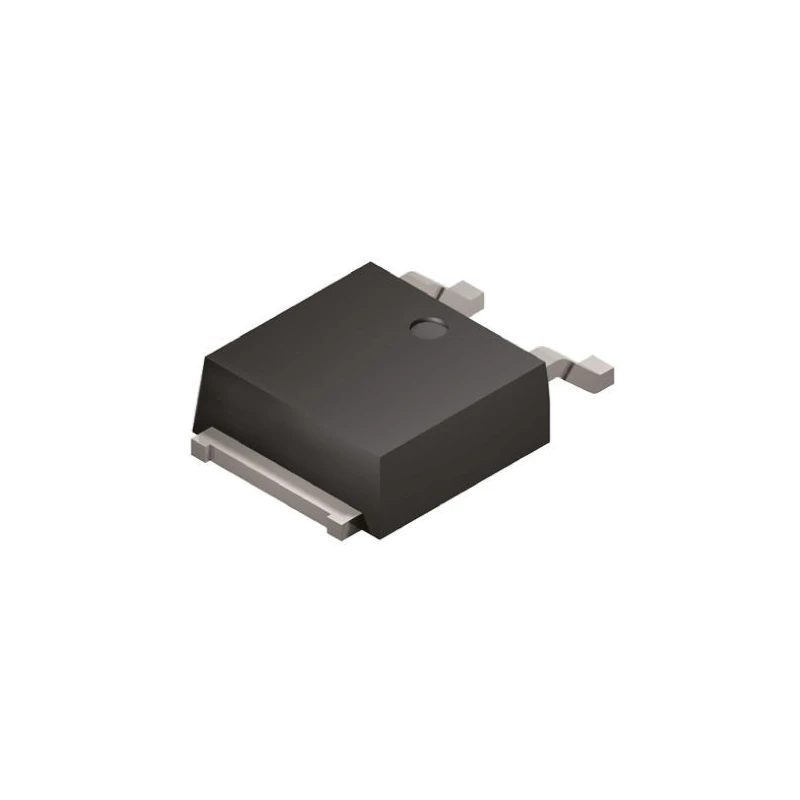

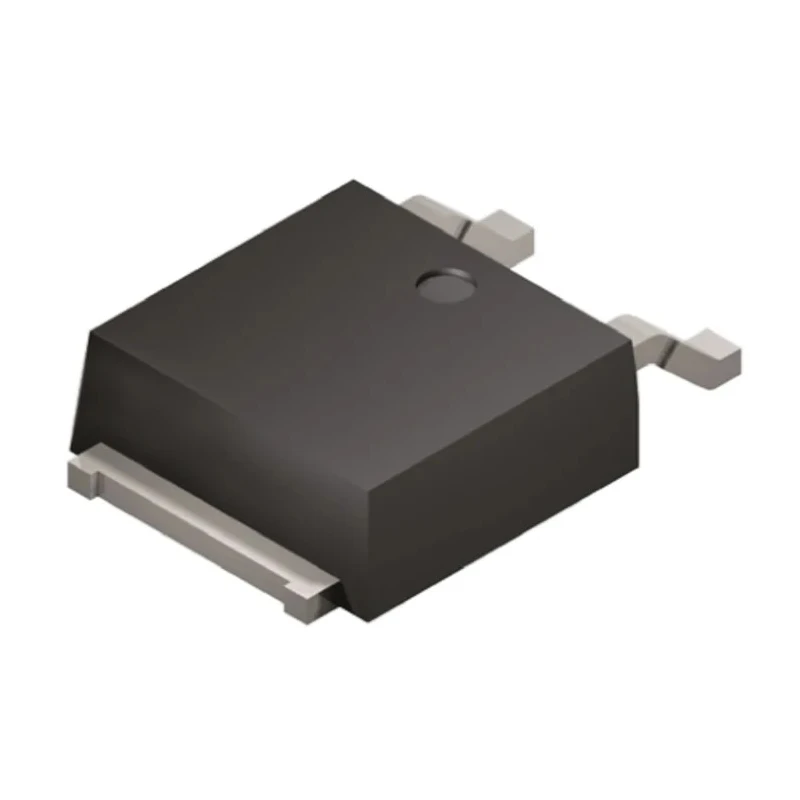

Vishay 30 V 12 A Schottky Diode 3-Pin DPAK Surface Mount TO-252 Package VS-12CWQ03FN-M3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.73mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ03FN-M3 |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 0.55V |
| Vishay 30V 12A, Dual Schottky Diode, 3-Pin D-PAK VS-12CWQ03FNPBFBrand | Vishay |
| Vishay Diode, 12CWQ03FNBrand | Vishay |
Key Features
- Surface mount diode ideal for fast switching applications.
- Maximum continuous forward current of 12 amperes.
- Peak reverse repetitive voltage rating of 30 volts.
- Very low forward voltage of 0.55 volts ensures efficiency.
- Compact 3-pin DPAK (TO-252) package with dimensions 6.73 mm length by 6.22 mm width.
- Operating temperature range from -55°C to 150°C supports harsh environments.
- Peak non-repetitive forward surge current rating of 320 amperes.
- Common cathode diode configuration.
Product Description
Vishay VS-12CWQ03FN-M3 is a high-performance Schottky diode designed for electronic circuits requiring fast switching and low forward voltage drop. This diode is rated for a maximum continuous forward current of 12 amperes and a peak reverse repetitive voltage of 30 volts, making it suitable for power management and protection applications.
The device features a 3-pin DPAK (TO-252) surface mount package, measuring approximately 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height. Its low forward voltage of 0.55 volts helps reduce power dissipation and improves efficiency in power conversion circuits.
Operating temperature spans from -55°C to 150°C, allowing use in demanding industrial, laboratory, and electronics manufacturing settings. The diode's fast switching and low reverse recovery characteristics make it ideal for applications in power supplies, solar inverters, motor drives, and voltage clamping.
The peak non-repetitive forward surge current of 320 amperes accommodates transient load spikes commonly encountered in industrial environments. With a common cathode configuration and 3 mA peak reverse current, it offers reliable rectification performance.
Surface mount package for high-density PCB assembly. Robust electrical ratings for power electronics. Fast switching reduces electromagnetic interference. Compact dimensions for space-constrained designs. Temperature ratings suitable for automotive electronics, though not certified automotive.
Schottky rectifier suitable for power and switching circuit applications.
This Vishay Schottky Diode is a reliable component for use in industrial electronic component inventories and is well-suited to rigorous applications in discrete semiconductor systems. Explore other semiconductor components and Vishay products at EnvMart for comprehensive electronic solutions.
