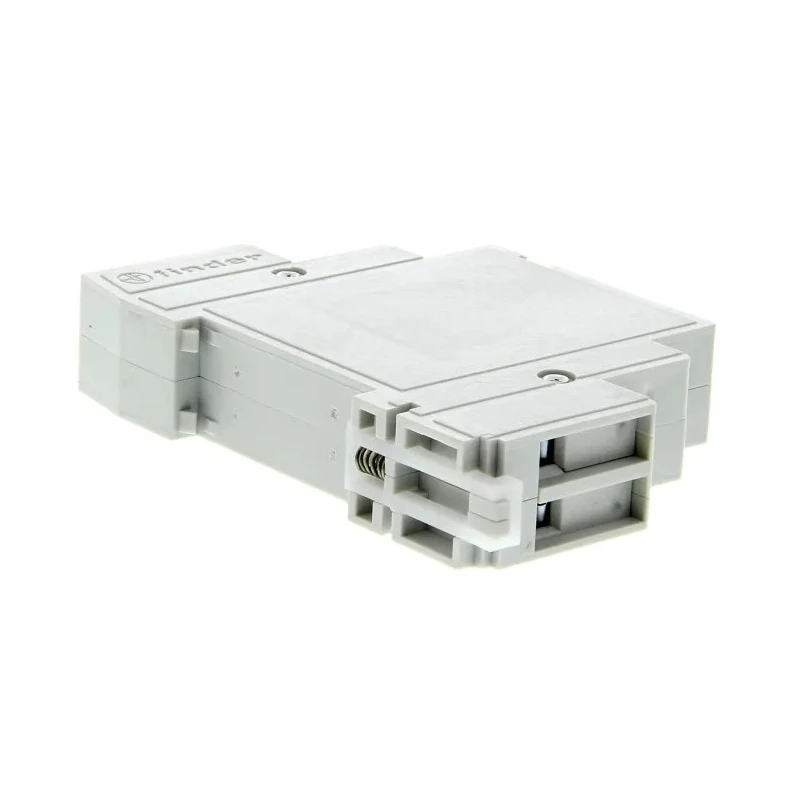

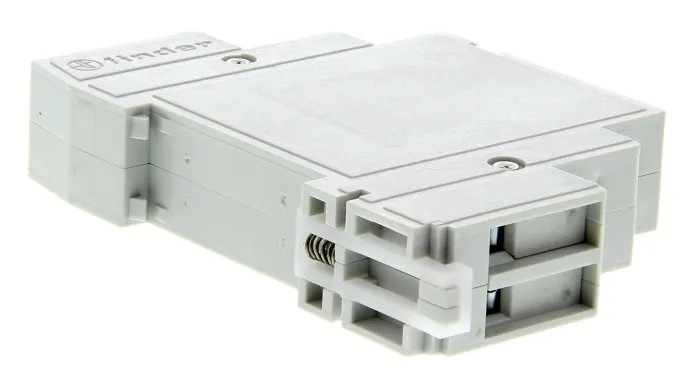

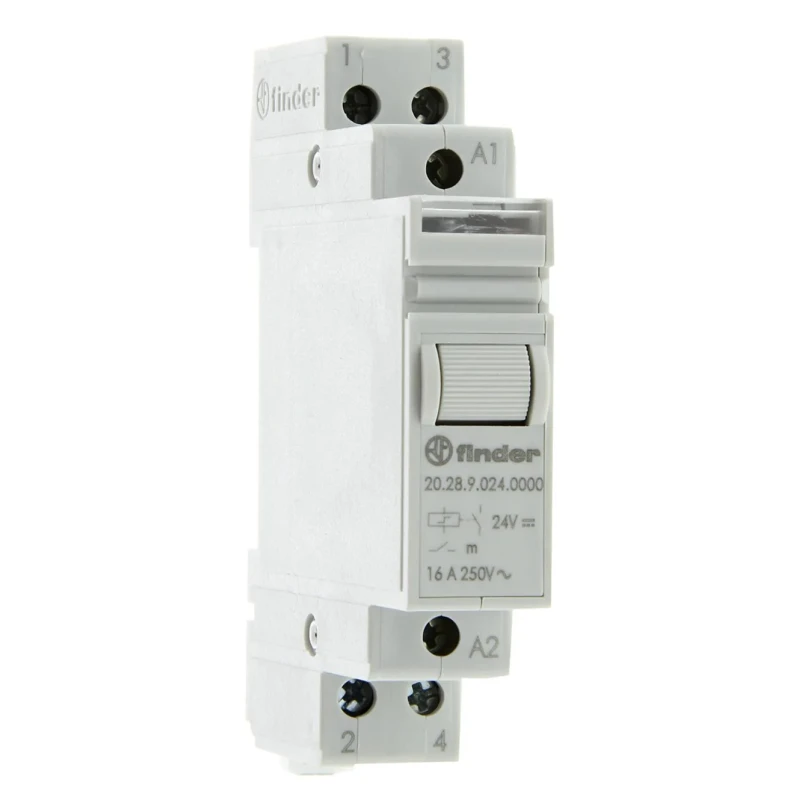

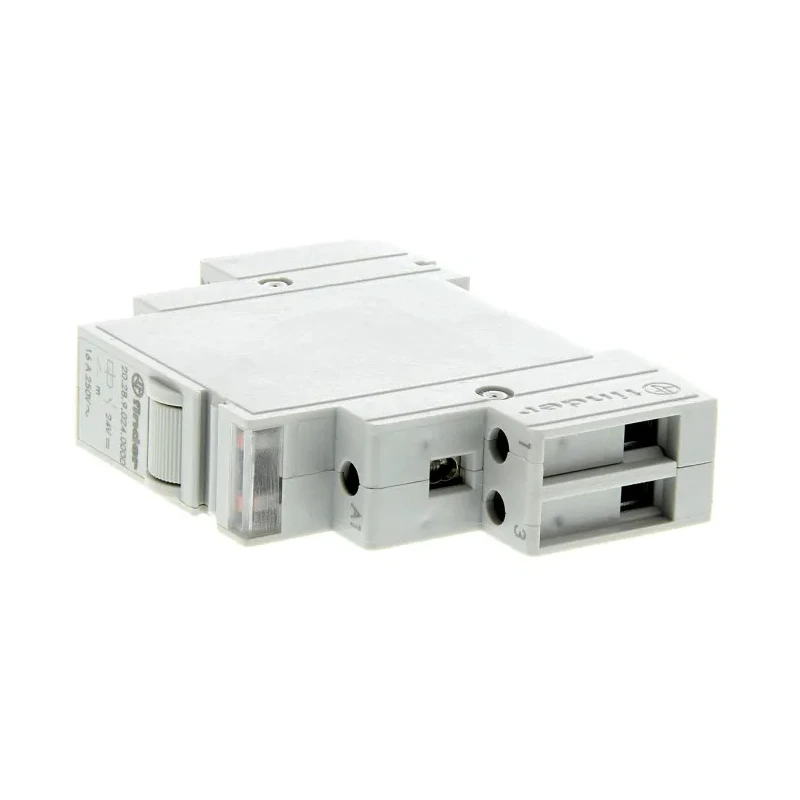

Finder DIN Rail Modular Step Relay 24V DC Coil 16A DPST 20.28.9.024.0000

Finder 20.28.9.024.0000 DIN Rail Modular Step Relay is engineered for precise automation and control in industrial and commercial electrical systems. Featuring a 24V DC coil voltage and robust 16A switching current rating, this device ensures dependable operation. Its modular construction and DIN rail mounting facilitate easy integration and optimal space usage in electrical enclosures.

Equipped with a double-pole single-throw (DPST) contact arrangement and silver alloy contacts, the relay maintains high switching performance with a maximum AC voltage of 400V. The coil operates at a low power of 5W with a resistance of 105 ohms, ensuring energy efficiency. Mechanical indicators enable straightforward monitoring of operational status.

Designed to operate reliably in harsh environments, it supports temperatures from -40°C to 40°C. The relay provides a long mechanical life of 300,000 cycles and an electrical lifespan of 100,000 cycles at rated load conditions, making it ideal for demanding applications.

Key applications include corridor and public space lighting control, motorized blinds, grilles, shutters automation, and bedroom or living room light management. The relay can handle up to 15 illuminated push buttons in the coil circuit, enhancing user interaction and control flexibility.

For optimal performance and longevity, it is recommended to maintain proper ventilation with a 9mm gap between adjacent units to minimize heat buildup during continuous operation.

This product is made in Italy, adhering to international standards and approvals including EAC, RINA, CE, RoHS, cURus, and EN certifications, ensuring quality and regulatory compliance.

Compact DIN rail mounting for space-efficient installation. 24V DC coil voltage with 5W power consumption. DPST contact configuration with silver alloy contacts. Supports switching current up to 16A and maximum AC voltage of 400V.

Mechanical status indicators for operational clarity. Wide operating temperature range from -40°C to 40°C. Long mechanical and electrical lifespan for reliable automation. Applications include lighting and blind/shutter control with illuminated push buttons.

Requires 9mm ventilation gap for heat dissipation. Explore our extensive range of relays and signal conditioning products at EnvMart to support your industrial, electrical, and automation needs.
