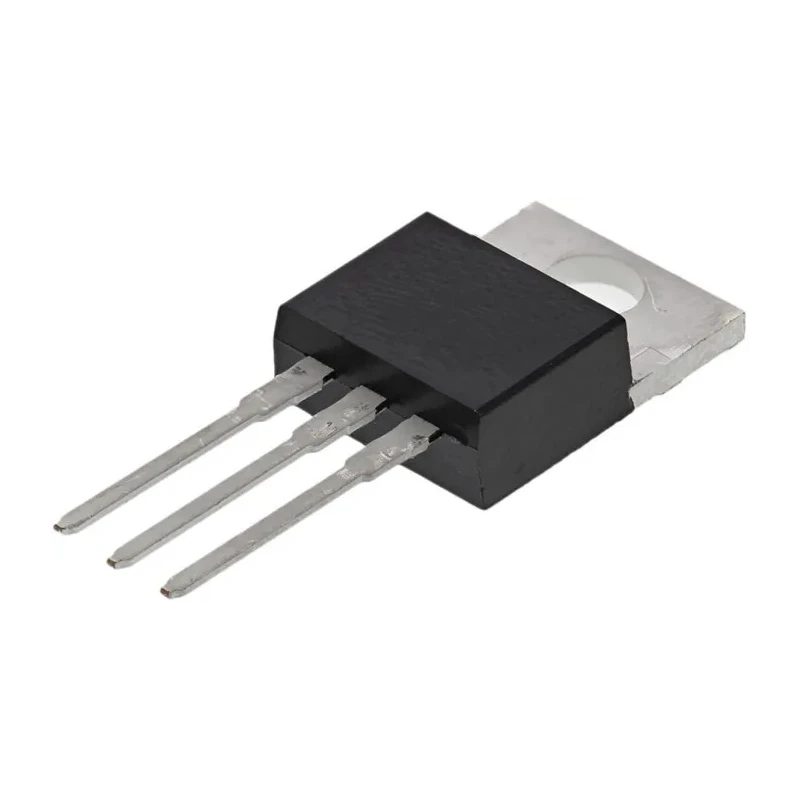

DiodesZetex 120 V 40 A Switching Schottky Barrier Diode 4-Pin TO-220AB SDT40A120CT

Free Delivery in India | Lowest Global Shipping Charges

DiodesZetex 120 V 40 A Switching Schottky Barrier Diode 4-Pin TO-220AB SDT40A120CT

Name: DiodesZetex 120 V 40 A Switching Schottky Barrier Diode 4-Pin TO-220AB SDT40A120CT
Brand: DiodesZetex
SKU: 201578
Price: 1.32 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	16.51mm
Length	10.66mm
Model	SDT40A120CT
Width	4.82mm
Mount Type	Through Hole
Series	40A TRENCH SCHOTTKY RECTIFIER
Maximum Operating Temperature	150°C
Package Type	TO-220AB
Minimum Operating Temperature	-55°C
Standards/Approvals	FBI
Pin Count	4
Maximum Continuous Forward Current If	40A
Peak Reverse Repetitive Voltage Vrrm	120V
Diode Configuration	2x Common Cathode Pair
Rectifier Type	Switching
Peak Reverse Current Ir	25mA
Peak Non-Repetitive Forward Surge Current Ifsm	250A
Maximum Forward Voltage Vf	880mV

Key Features

The diode supports a maximum continuous forward current of 40 amperes.
It has a peak reverse repetitive voltage rating of 120 volts.
Constructed as a 2x common cathode pair configuration for optimal switching performance.
The device can operate within a temperature range from -55°C to 150°C.
Features a low maximum forward voltage of 880 millivolts to enhance efficiency.
Offers peak non-repetitive forward surge current capacity of 250 amperes.
Compact dimensions with a height of 16.51 mm, length of 10.66 mm, and width of 4.82 mm.
Ideal for power management and rectification in industrial and electronic applications.

Product Description

DiodesZetex SDT40A120CT is a high-performance switching Schottky barrier diode with a 4-pin TO-220AB through-hole mounting package. Rated for a maximum continuous forward current of 40 A and a peak reverse repetitive voltage of 120 V, this diode delivers reliable rectification and fast switching capabilities essential for power electronics and industrial applications.

This device utilizes advanced 40A trench Schottky rectifier technology, offering low forward voltage drop (maximum 880 mV) and excellent thermal stability with an operating temperature range from -55°C to 150°C. Its configuration as a 2x common cathode pair enables efficient current conduction and switching performance.

Measuring 16.51 mm in height, 10.66 mm in length, and 4.82 mm in width, the diode is compact and suited for through-hole mounting in electronic circuits. The peak non-repetitive forward surge current capacity of 250 A provides robustness during transient conditions.

This Schottky diode is commonly used in power supply rectification, voltage clamping, and industrial switching applications within semiconductors and power management systems. Its standards approval includes FBI certification, ensuring compliance and quality.

Maximum continuous forward current of 40A. Peak reverse repetitive voltage rating of 120V. 2x common cathode pair diode configuration. Operating temperature range from -55°C to 150°C. Low maximum forward voltage of 880mV.

Peak forward surge current capacity of 250A. Compact 4-pin TO-220AB package. Suitable for industrial power management and electronic assemblies. Explore the full range of semiconductor diodes at EnvMart for advanced electronic and industrial solutions.
