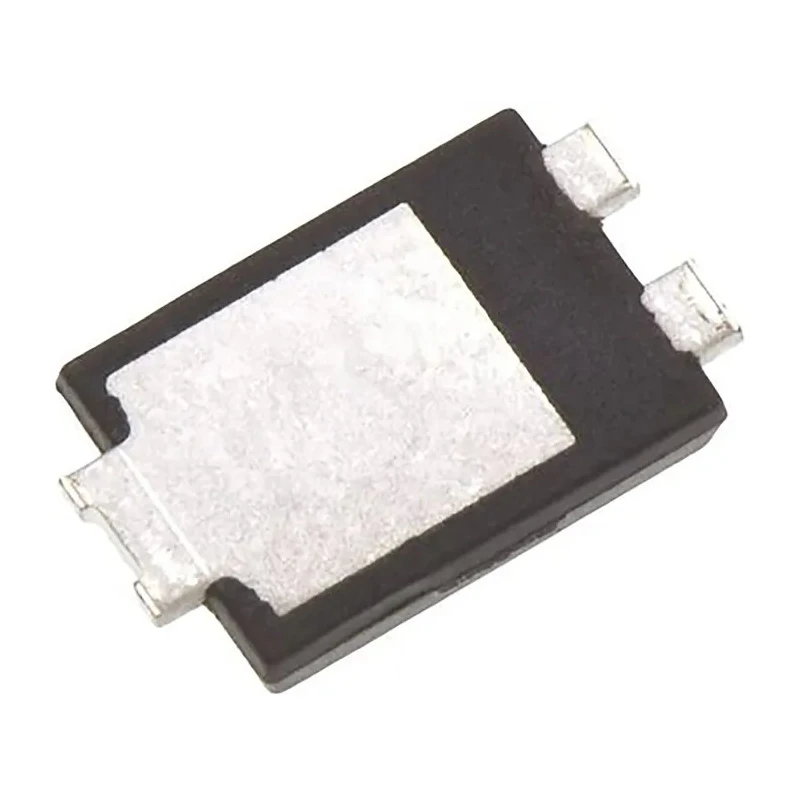

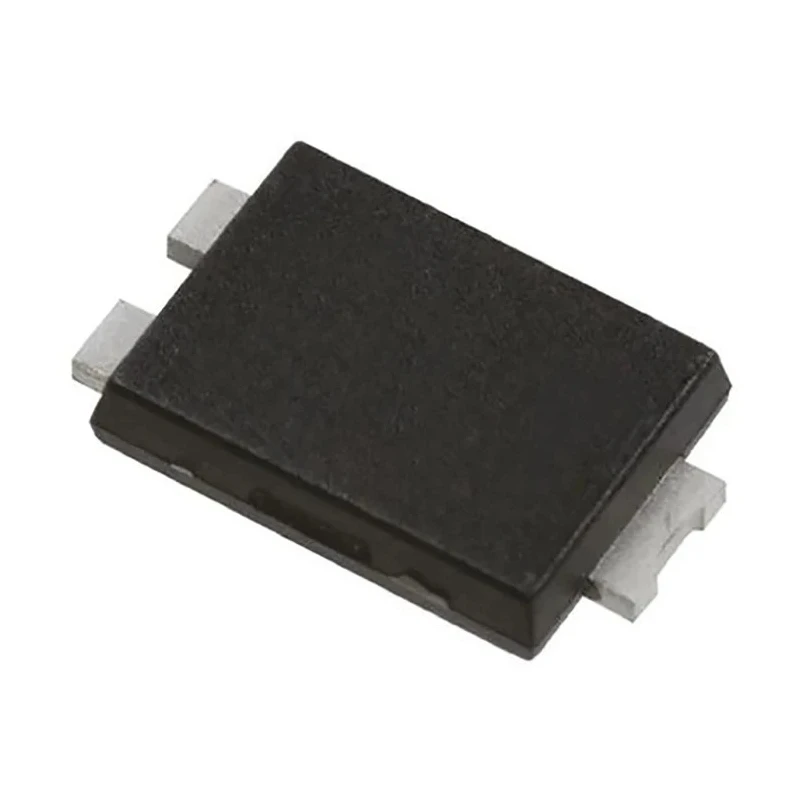

DiodesZetex 100 V 5 A Switching Diode PowerDI5 3-Pin Surface Mount SDT5H100LP5-7

DiodesZetex SDT5H100LP5-7 switching diode is a versatile Schottky barrier rectifier designed for high efficiency and reliability in power electronics. Featuring a surface mount PowerDI5 package with a 3-pin configuration, it can continuously carry forward currents up to 5 amperes while withstanding peak reverse voltages up to 100 volts. This diode ensures low forward voltage drop at 660 millivolts, significantly improving energy efficiency and reducing heat generation during operation.

Engineered for demanding industrial and electronic applications, the diode supports a peak non-repetitive forward surge current of 150 amperes, allowing transient high current events without damage. Its operating temperature range from -55°C to 150°C guarantees stable performance in harsh environmental conditions often encountered in manufacturing, automotive electronics (non-automotive standard), and power supply systems.

The SDT5H100LP5-7 also delivers a low peak reverse current of 4.5 milliamperes, enhancing circuit protection and minimizing leakage in reverse bias conditions. Its compact physical dimensions of 5.45 mm length, 4.05 mm width, and 1.1 mm height make it suitable for modern compact PCB designs that require space-efficient and surface mounted discrete semiconductor components.

This diode belongs to the 5A Trench Schottky Barrier Rectifier series providing the benefits of low forward voltage and high thermal stability. It is ideal for use in switching power supplies, voltage clamping, and rectification tasks across industrial automation, telecommunications, and power management circuits.

This diode supports a peak non-repetitive forward surge current of 150 amperes. The maximum forward voltage drop is 660 millivolts. It operates reliably in temperatures ranging from -55°C up to 150°C. The component provides a peak reverse current rating of 4.5 milliamperes.

Its compact dimensions are 5.45 mm length, 4.05 mm width, and 1.1 mm height. The diode is configured as a single switching rectifier for efficient switching applications. It complies with FBI standards but does not meet automotive standards.

Suitable for power electronics, voltage regulation, and switching circuits in industrial equipment. Environmentally compliant with the Restriction of Hazardous Substances (RoHS), this diode supports modern electronics assembly and manufacturing practices.
