| Country of Origin | Japan |
|---|---|
| Brand | Toshiba |
| Height | 4.46mm |
| Length | 10.35mm |
| Model | TK14G65W,RQ(S |
| Width | 8.8mm |
| Mount Type | Surface |
| Series | DTMOSIV |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-263 |
| Pin Count | 3 |
| Channel Type | N |
| Maximum Continuous Drain Current Id | 13.7A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 250mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 130W |
| Typical Gate Charge Qg @ Vgs | 35nC |
| Maximum Gate Source Voltage Vgs | -30, +30V |
| Forward Voltage Vf | -1.7V |

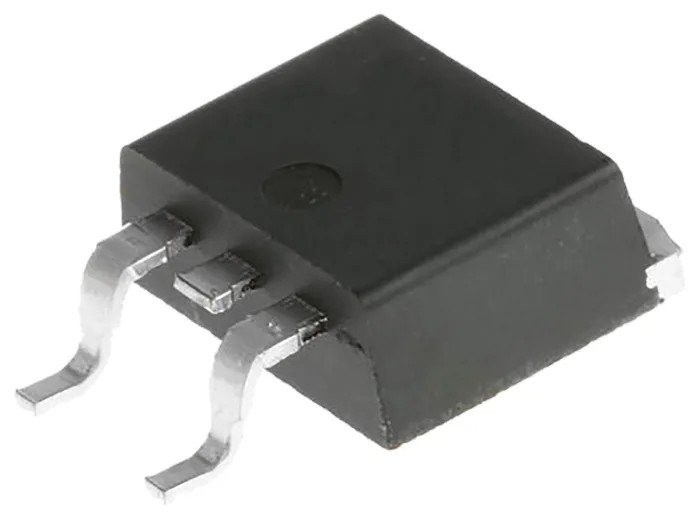

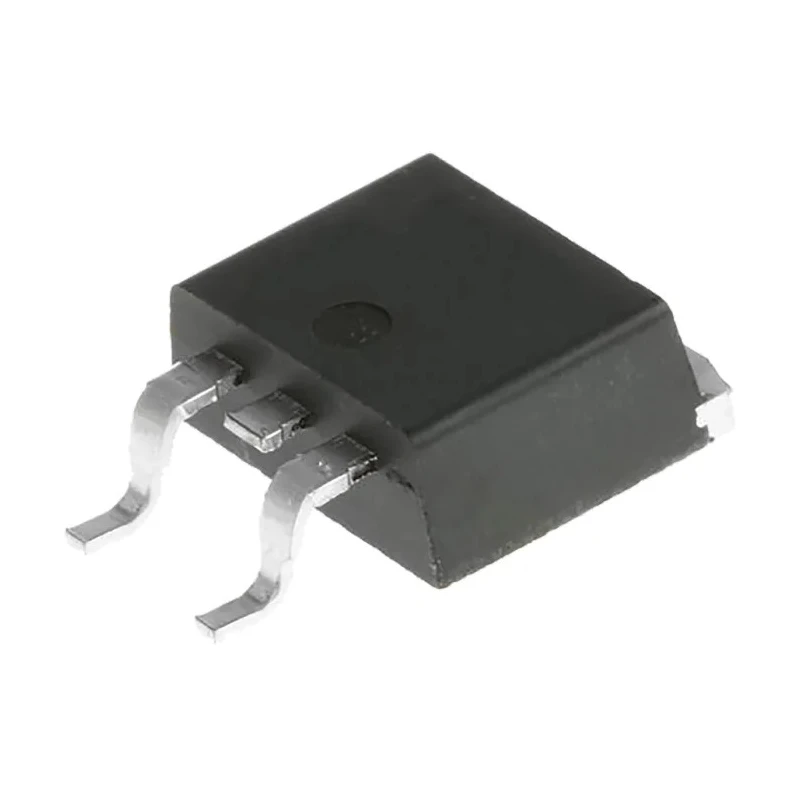

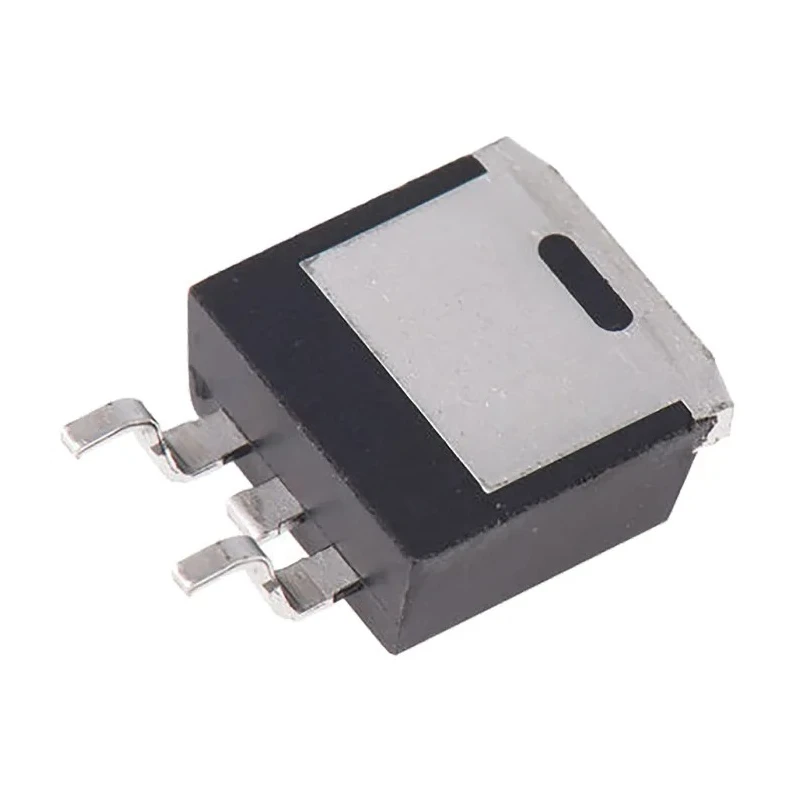

Toshiba TK14G65W,RQ(S is a high-performance DTMOSIV N-Channel MOSFET transistor designed for industrial electronic applications requiring reliable switching at elevated voltages and currents.
This MOSFET supports a maximum continuous drain current of 13.7 amperes and a drain-source voltage up to 650 volts, making it suitable for power management tasks in industrial power supplies, motor control circuits, and other demanding power semiconductor uses.
The device uses enhancement mode channel technology, packaged in a TO-263 surface-mount format that facilitates easy PCB assembly with secure mechanical stability. Its low ON-resistance of 250 milliohm helps minimize conduction losses and improve efficiency in power circuits.
The typical gate charge of 35 nanocoulombs allows rapid switching cycles, critical for high-frequency operations. Operating temperature capability up to 150°C ensures reliable performance in harsh industrial and manufacturing environments.
The transistor has compact physical dimensions with a length of 10.35 mm, width of 8.8 mm, and height of 4.46 mm. It supports a wide gate-source voltage range (-30 to +30 V) to accommodate various gate drive schemes. Forward voltage drop characteristics are -1.7 V.
Maximum continuous drain current of 13.7 A. Maximum drain-source voltage of 650 V. Package type: TO-263 for surface mounting. Low drain-source resistance of 250 milliohm. Enhancement mode channel type. Typical gate charge at 35 nC for efficient switching.
Power dissipation rating of 130 W. Gate-source voltage range of -30 to +30 V. Operating temperature up to 150°C. Compact physical size for board space savings. Manufactured in Japan. This MOSFET is commonly used in industrial electronics, power supply designs, motor controllers, and other semiconductor-based power switching configurations.
For detailed design and application information, refer to Toshiba technical documentation and datasheets. Explore similar semiconductor devices and MOSFET components at EnvMart for your industrial and manufacturing projects.
