Amphenol Limited Mil Spec Circular Connector 7 Contacts Brass Straight 500, 700V AC 7.5A Shell Size 10 62GB-56T10-07PN

Free Delivery in India | Lowest Global Shipping Charges

Amphenol Limited Mil Spec Circular Connector 7 Contacts Brass Straight 500, 700V AC 7.5A Shell Size 10 62GB-56T10-07PN

Name: Amphenol Limited Mil Spec Circular Connector 7 Contacts Brass Straight 500, 700V AC 7.5A Shell Size 10 62GB-56T10-07PN
Brand: Amphenol Limited
SKU: 196019
Price: 57.71 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Amphenol Limited Condition New

Specifications

Country of Origin	India
Voltage	500, 700V ac
Brand	Amphenol Limited
Colour	Olive
Orientation	Straight
Current	7.5A
Model	62GB-56T10-07PN
Mount Type	Cable
Housing Material	Aluminium
Contact Material	Brass
Series	62GB
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold
Number of Contacts	7
Contact Gender	Male
Connector Gender	Male
Shell Size	10
Military Standard	MIL-DTL-26482
Mating Type	Bayonet
Connector Size	Standard
Shell Plating	Zinc Cobalt

Key Features

This 62GB series connector supports current up to 7.5A and voltage of 500 to 700V AC.
Constructed with an aluminium housing and zinc cobalt olive drab plating for corrosion resistance.
It includes gold plated male contacts and utilizes a bayonet lock mating system for secure connections.
Designed to MIL-DTL-26482 military standard ensuring high durability and environmental protection.
Operates reliably from -55°C to 125°C in harsh industrial and military environments.
Shell size is 10 with a standard connector size for cable mounting termination type via solder.
Keyway design prevents mismating with other connectors, ensuring secure engagement.
Ideal for military, industrial, and demanding circular connector applications.

Product Description

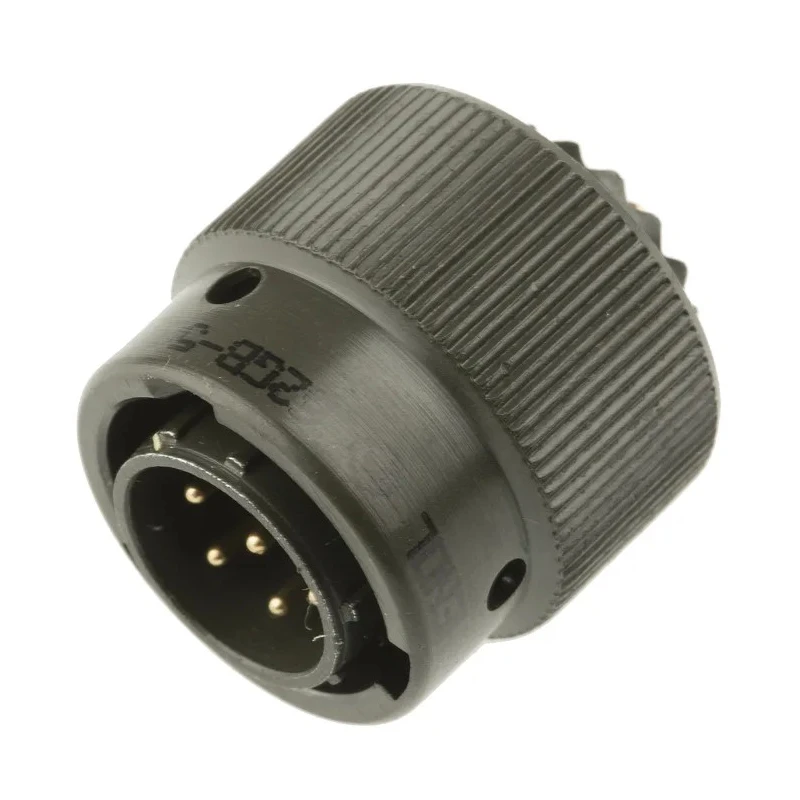

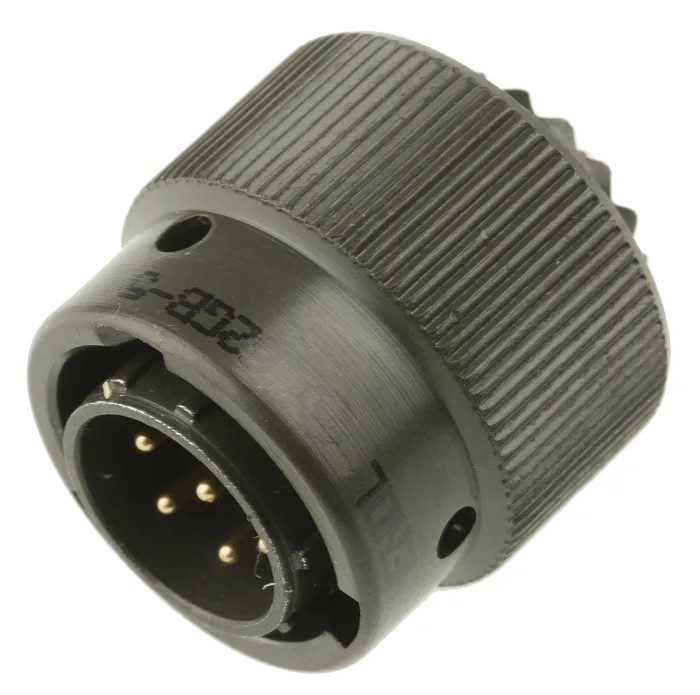

Amphenol Limited 62GB-56T10-07PN is a MIL Spec Circular Connector built to MIL-DTL-26482 standard, featuring 7 brass male contacts with gold plating mounted in a straight, cable-mount bayonet lock connector system. It is designed to operate at 500 to 700V AC voltage with a rated current of 7.5A. The connectors have a durable aluminium housing with zinc cobalt olive drab plating providing superior corrosion resistance and environmental protection when mated. Operating temperature ranges from -55°C to 125°C, making it suitable for extreme environments.

This miniature bayonet lock connector series ensures secure and reliable connections with a keyway to prevent mismating. Its solder termination type and standard shell size 10 make it versatile for various military and industrial applications where robustness and quality are essential. The gold plated contacts guarantee excellent conductivity and durability.

The 62GB series connectors are compliant with military standards MIL-C-26482E and meet BS9522 FOO17 and Def Stan 59-35 requirements. Their high mechanical strength and environmental resistance make them ideal for use in complex electrical systems across defense, aerospace, and harsh industrial environments.

This connector includes 7 male brass contacts with gold plating for enhanced conductivity. The aluminium housing offers resilience and is finished with a zinc cobalt olive drab plating to prevent corrosion. The bayonet lock mechanism assures firm secure mating and easy maintenance.

Rated voltage supports up to 700V AC and current up to 7.5A for versatile applications. Resistant to extreme temperatures ranging from -55°C to 125°C for reliable operation. Shell size 10 and cable mounting type with solder termination for strong and stable connections.

Compact and durable design suitable for military, aerospace, industrial, and electronic applications. Explore more Mil Spec Circular Connectors by Amphenol Limited on EnvMart for your expert industrial and military electrical connector needs.
