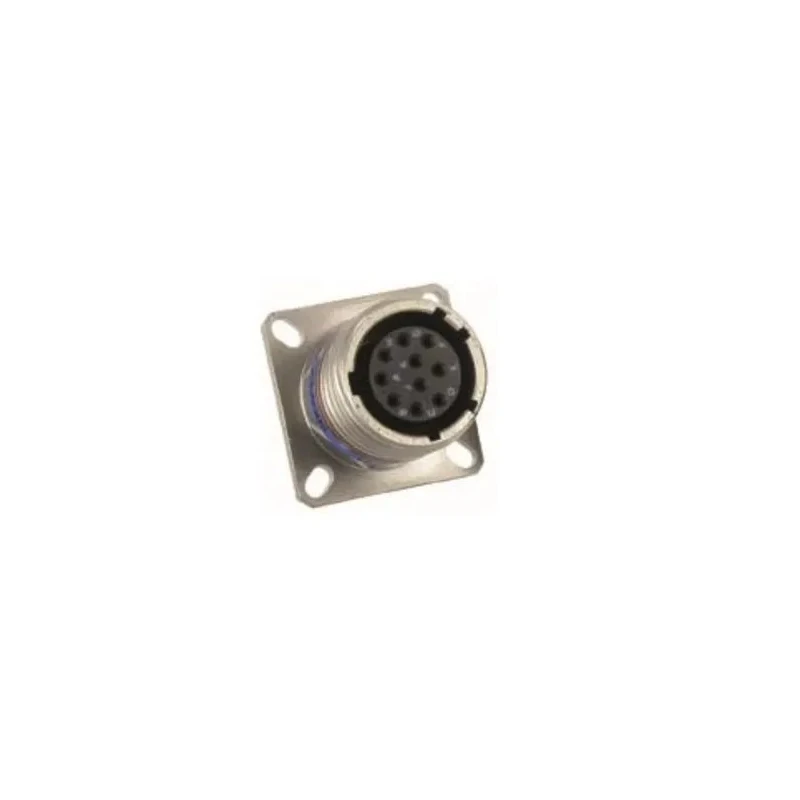

Amphenol Limited 10 Way Panel Circular Connector Female Copper Alloy Straight, Electroless Nickel Shell D38999/20FC98SN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 850V |
| Brand | Amphenol Limited |
| Colour | Silver |
| Orientation | Straight |
| Current | 7.5A |
| Model | D38999/20FC98SN |
| Mount Type | Panel |
| Housing Material | Aluminium |
| Contact Material | Copper Alloy |
| Series | D38999 III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 200°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shell Size | C13 |
| Military Standard | MIL-DTL-38999 Series III |
| Mating Type | Self-Locking |
| Connector Size | Subminiature |
| Shell Plating | Electroless Nickel |
Key Features
- Offers reliable connection with 10 female contacts supporting 7.5 amps.
- Operates at voltages up to 850 volts for robust power handling.
- Constructed with aluminium housing and nickel plating for corrosion resistance.
- Meets MIL-DTL-38999 Series III military standard for durability.
- Designed for panel mounting with a straight orientation for easy integration.
- Features a self-locking mating type for secure connections.
- Operates in temperatures ranging from -65°C to 200°C for extreme environments.
- Termination via crimp type ensures strong electrical connection.
Product Description
Amphenol Limited D38999/20FC98SN circular connector is a high-performance, 10-way female panel mount connector constructed from copper alloy and aluminium with an electroless nickel-plated shell. It features gold-plated female contacts designed for reliable electrical connectivity in harsh environments.
This connector complies with MIL-DTL-38999 Series III military specifications, ensuring exceptional resistance against mechanical, environmental, and electrical stresses. It supports currents up to 7.5 amps and voltages up to 850 volts.
The panel mount design with a straight orientation and self-locking mating type facilitates secure and easy installation. Termination by crimp type offers reliable and stable contact retention. The housing material is aluminium, providing lightweight robustness with corrosion resistance thanks to the electroless nickel plating.
Operating temperature ranges from -65°C to 200°C make this connector suitable for extreme temperature applications typical in military, aviation, and demanding industrial sectors. The silver-colored shell offers a clean finish and visual distinction.
10-way female contact configuration supports moderate current and voltage. Constructed from copper alloy contacts with gold plating for superior conductivity and corrosion resistance. Aluminium housing with electroless nickel plating ensures durability in aggressive environments.
Conforms to MIL-DTL-38999 Series III standard for military-grade ruggedness. Panel mount with straight orientation for streamlined system integration. Self-locking mating type guarantees secure connections under vibration or shock conditions.
This Amphenol limited D38999/20FC98SN circular connector is ideal for applications in military, aerospace, industrial electronics, and other high-reliability environments requiring harsh condition performance and long service life.
Explore the full range of Mil Spec Circular Connectors on EnvMart for compatible and complementary products.
