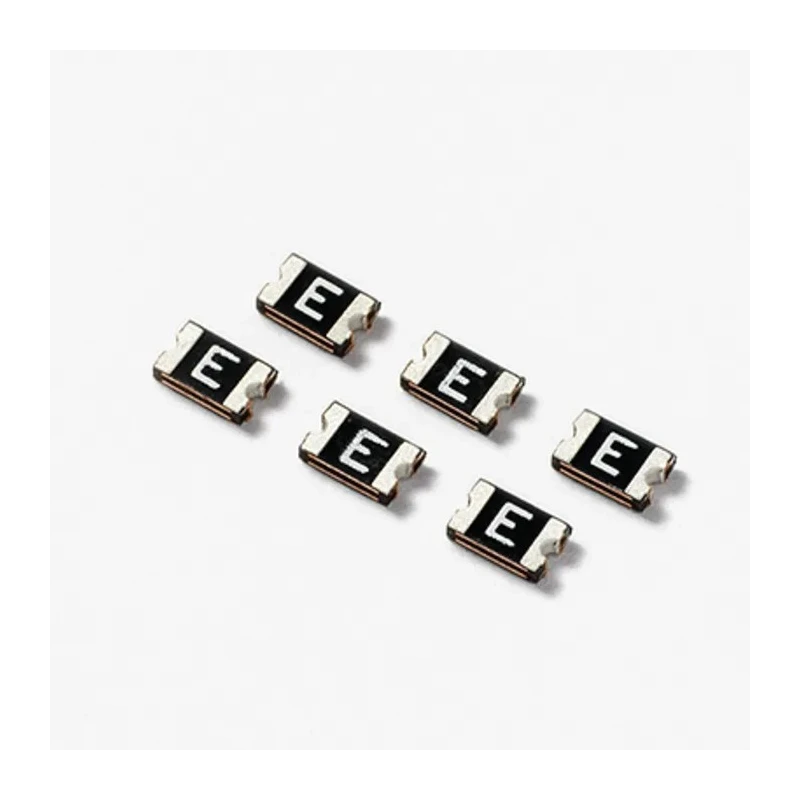

Wickmann 0.2 A Resettable Fuse, 9V DC, 0.02s Trip Time, 0.5W Power Dissipation 0805L020YR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 9V dc |
| Brand | Wickmann |
| Height | 1mm |
| Length | 2.2mm |
| Model | 0805L020YR |
| Width | 1.5mm |
| Current Rating | 100A |
| Series | 0805L |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 2012 |
| Interfaces | USB peripherals |
| Trip Current | 500mA |
| Power Dissipation | 0.5W |
| Terminal Material | Matt Tin |
| Standards/Approvals | RoHS |
| Time to Trip | 0.02s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.65Ω |
| Maximum Resistance | 3.5Ω |
Key Features
- Trip current is 500mA providing fast response to fault conditions.
- Compact 0805 package size suitable for space-saving surface mount applications.
- Power dissipation rating is 0.5W ensuring stable operation under load.
- Operating temperature range from -40°C to 85°C suits varied industrial environments.
- Terminal material is matt tin offering low resistance and solder compatibility.
- Typical applications include USB peripherals, motherboards, disk drives, and mobile phone protection.
- Lead-free and halogen-free material complies with RoHS standards.
Product Description
Wickmann 0805L020YR is a reliable resettable fuse designed for surface mount applications requiring efficient overcurrent protection at 9V DC and 0.2 A hold current. Its compact 0805L series design minimizes PCB space usage while delivering fast trip time of 0.02 seconds for responsive fault protection.
This fuse features a power dissipation of 0.5W and operates within a temperature range of -40°C to 85°C, allowing stable performance in harsh industrial and consumer electronics contexts. The matt tin terminal material ensures excellent solderability and low electrical resistance, enhancing device longevity.
Commonly used in USB peripherals, disk drives, CD-ROMs, motherboards, mobile phones, PDAs, digital cameras, and game console ports, this fuse protects critical components by safely limiting overcurrent conditions. The lead-free and halogen-free construction supports environment-friendly manufacturing standards with RoHS compliance.
Its low profile and fast response characteristics are suitable for high-density circuit assemblies where board space is at a premium and resettable protection is desired. Fast response to fault currents with a trip current of 500mA.
Compact 0805 package design saving PCB space. Power dissipation of 0.5W ensuring efficient thermal management. Wide operating temperature range from -40°C to 85°C for versatile applications. Matt tin terminal material provides low resistance and good soldering compatibility.
Lead-free and halogen-free for RoHS compliance. Ideal for USB peripherals, disk drives, motherboards, and mobile phone battery port protection. Explore EnvMart's extensive range of Resettable Fuses and circuit protection devices for your industrial, electronics, and consumer product design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The trip current for this model is 500mA, providing a fast response to fault conditions.
It operates within a temperature range of -40°C to 85°C, making it suitable for various industrial environments.
The power dissipation rating is 0.5W, ensuring stable operation under load conditions.
This model has dimensions of 2.2mm in length, 1.5mm in width, and a height of 1mm, fitting into a compact 0805 package.
The terminals are made of matt tin, which provides low resistance and good soldering compatibility.
Common applications include USB peripherals, motherboards, disk drives, and mobile phone protection.
The time to trip for this model is 0.02 seconds, allowing for quick fault protection.
This resettable fuse is rated for 9V DC, suitable for various electronic applications.
The hold current for this fuse is 0.2A, which indicates the maximum continuous current it can handle without tripping.
The maximum operating temperature is 85°C, allowing it to function effectively in high-temperature environments.
Yes, it is lead-free and halogen-free, complying with RoHS standards for environmental safety.
This model comes in a reel package type, which is suitable for surface mount applications.
