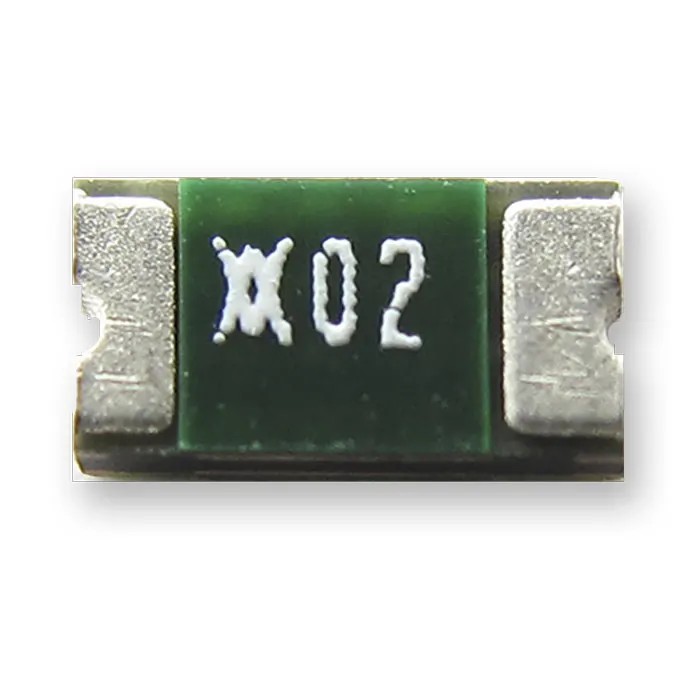

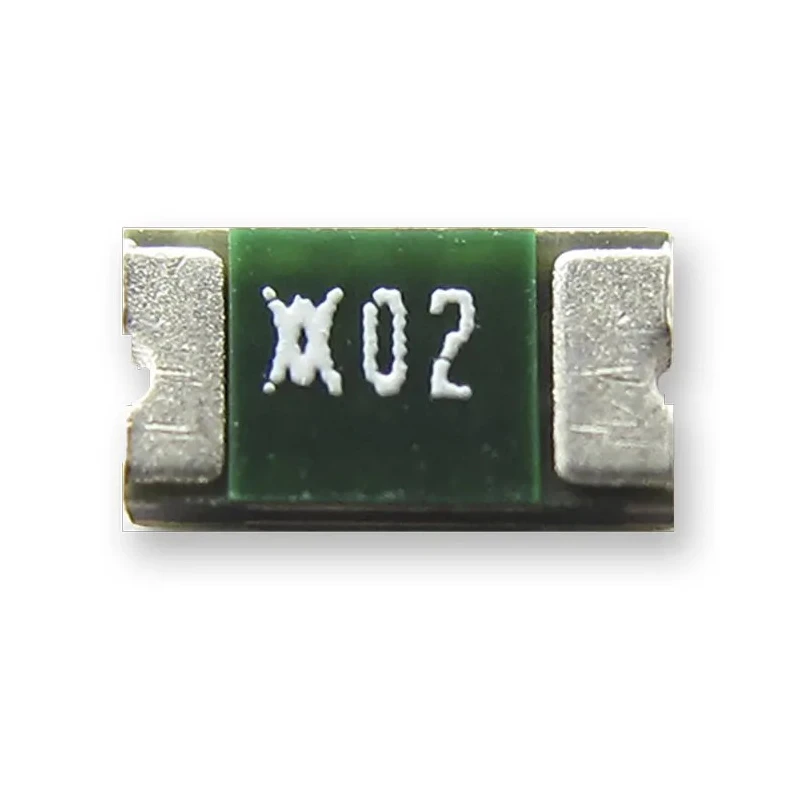

Wickmann 0.2 A Resettable Fuse 24V DC Polymer Body nanoSMDC Series RF1345-000
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V dc |
| Brand | Wickmann |
| Body Material | Polymer |
| Height | 0.82mm |
| Length | 3.4mm |
| Model | RF1345-000 |
| Width | 1.8mm |
| Current Rating | 100A |
| Series | nanoSMDC |
| Maximum Operating Temperature | 85°C |
| Package Type | Reel |
| Minimum Operating Temperature | -40°C |
| Package Size | 1206 |
| Trip Current | 420mA |
| Power Dissipation | 0.6W |
| Terminal Material | Matt Tin |
| Standards/Approvals | UL, TUV, CSA, RoHS |
| Time to Trip | 0.1s |
| Hold Current | 0.2A |
| Minimum Resistance | 0.65Ω |
| Maximum Resistance | 3.1Ω |
Key Features
- Compact size with 3.4mm length, 1.8mm width, and 0.82mm height.
- Polymer body material provides reliable durability.
- Trip current is rated at 420mA with a fast 0.1 second trip time.
- Operating temperature range from -40°C to 85°C ensures wide environmental tolerance.
- Ideal for mobile electronics, automotive, industrial controls, and battery protection.
- Complies with UL, TUV, CSA, and RoHS standards.
- Featuring Matt Tin terminal material and nanoSMDC series surface-mount design.
- Supports 100A maximum current rating and power dissipation of 0.6W.
Product Description
Wickmann RF1345-000 is a 0.2 Amp resettable fuse designed for surface-mount applications requiring reliable overcurrent protection at 24V DC voltage. It features a compact polymer body with dimensions of 3.4mm length, 1.8mm width, and 0.82mm height making it suitable for space-constrained mobile electronics and automotive systems.
This nanoSMDC series fuse provides a rapid trip time of 0.1 seconds at a trip current of 420mA to safeguard sensitive circuits efficiently. Its operating temperature range from -40°C to 85°C allows use under various environmental conditions and industrial applications including multimedia devices, telephone systems, and industrial controls.
Constructed with matt tin terminals and packaged in 1206-size reels, this fuse supports a hold current of 0.2A with a maximum current rating of 100A and power dissipation of 0.6W. Compliance with UL, TUV, CSA, and RoHS standards ensures safety and reliability in manufacturing and operation.
Ideal applications include portable electronics, computer components, automotive electrical subsystems, multimedia equipment, battery packs, and industrial control circuits requiring resettable protection components. This product is manufactured in China under high quality controls to meet stringent industrial requirements.
Compact size with 3.4mm length, 1.8mm width, and 0.82mm height. Polymer body material offers durability and insulation. Fast trip time of 0.1 seconds at 420mA trip current. Wide operating temperature range from -40°C up to 85°C.
Supports 100A maximum current with 0.2A hold current. Matt tin terminal material provides good solderability. Complies with leading international safety and environmental standards. Packaged in easily deployable 1206 size reel for surface mounting.
Suitable for automotive, mobile electronics, and industrial control applications. Browse further Wickmann Resettable Fuses and other overcurrent protection components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.2A.
This model supports a maximum current rating of 100A.
The dimensions of this resettable fuse are 3.4mm in length, 1.8mm in width, and 0.82mm in height.
The trip current for this fuse is rated at 420mA.
The operating temperature range for this resettable fuse is from -40°C to 85°C.
The time to trip for this model is 0.1 seconds at the rated trip current.
The fuse features a polymer body and matt tin terminal material.
This resettable fuse complies with UL, TUV, CSA, and RoHS standards.
The power dissipation rating for this fuse is 0.6W.
The Wickmann RF1345-000 is packaged in a reel type, specifically in a 1206 size.
This resettable fuse is ideal for applications in mobile electronics, automotive systems, and industrial controls.
The minimum resistance is 0.65Ω and the maximum resistance is 3.1Ω.
