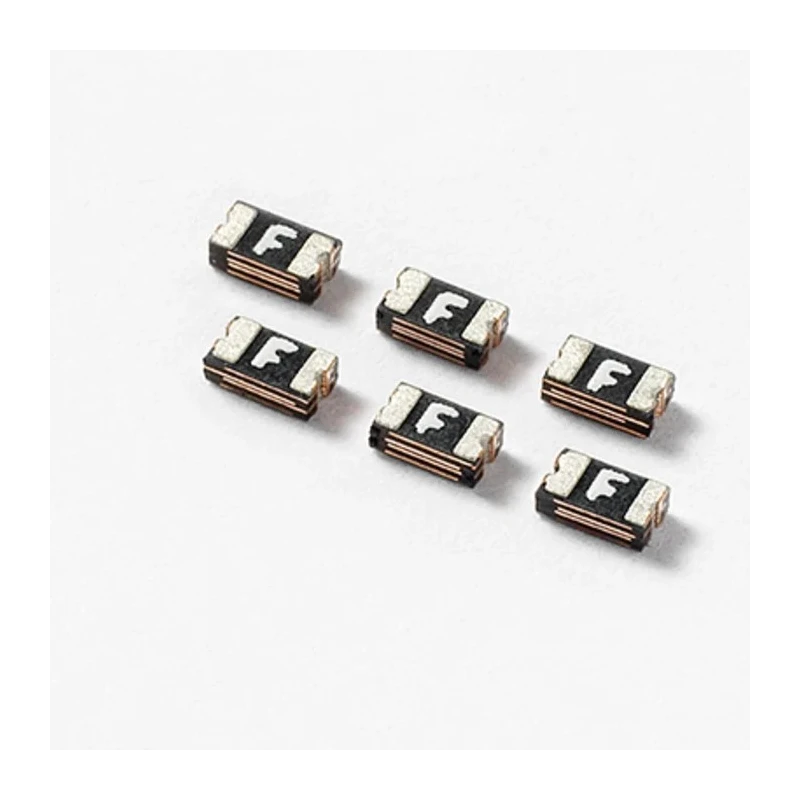

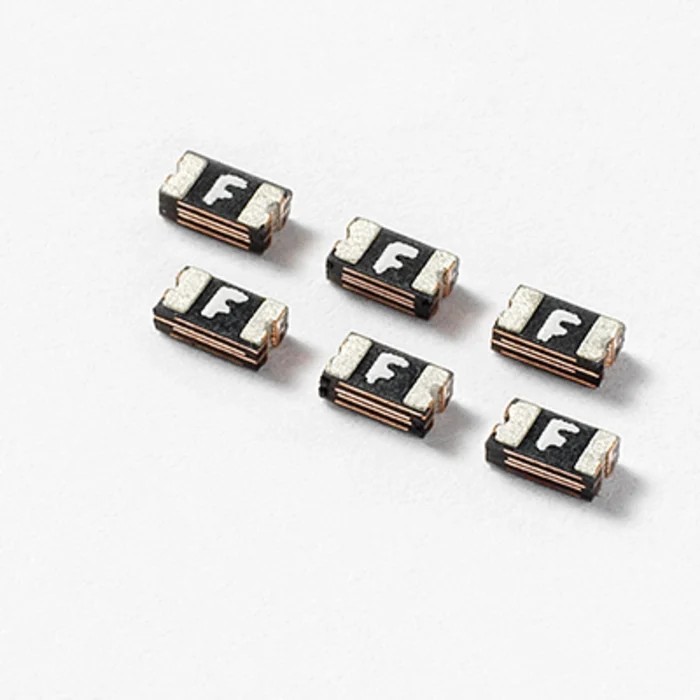

Wickmann 0.2 A Surface Mount Resettable Fuse 0.5W 0603L020YR

Wickmann 0603L020YR is a surface mount resettable fuse designed for overcurrent protection in compact and space-sensitive electronic assemblies. This fuse belongs to the 0603L series and features a compact 603 package size measuring 1.8mm x 0.75mm x 1mm, making it ideal for motherboard, USB peripherals, disk drives, and digital camera protection.

It provides fast trip response with a trip current of 500mA and a trip time of 0.6 seconds, ensuring quick disruption of fault currents to prevent damage. The hold current is rated at 0.2A, allowing normal operation under typical load conditions.

Manufactured with solder plated copper terminals, it assures strong and reliable solder joints compatible with high temperature soldering processes. The key electrical performance includes a resistance range from 0.55Ω minimum to a maximum of 3.5Ω, which supports low resistance and efficient circuit safeguarding.

Constructed without lead and halogens, this resettable fuse aligns with modern environmental regulations. The fuse operates reliably in a wide temperature range from -40°C to 85°C, suitable for industrial, computing, and consumer electronics applications.

Typical uses include protection for USB peripherals, disk drives, CD-ROMs, plug and play motherboard components, PDAs, digital cameras, and game console ports, providing durable and resettable circuit security.

Trip current rating of 500mA ensures precise fault response. Hold current is 0.2A for consistent circuit protection. Fast trip time of 0.6 seconds minimizes fault exposure. Low-profile dimensions optimize board space. Reliable solder plated copper terminals.

Resistance range supports optimal circuit performance. Wide operating temperature tolerance from -40°C to 85°C. Lead-free and halogen-free material construction. Compatible with high temperature solder processes. Ideal for USB peripherals and digital device protections.

Explore the Wickmann range and Resettable Fuses at EnvMart for dependable electronic circuit safeguards.
