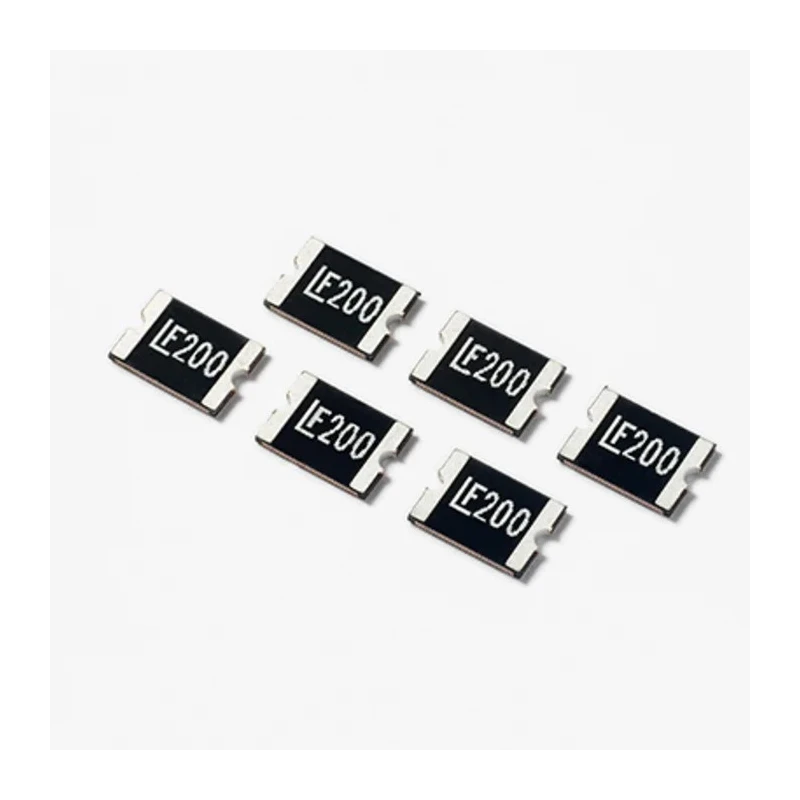

Wickmann 0.75 A Resettable Fuse, 24V DC, Fast Response, Compact Surface Mount 1812L075/24DR
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 24V dc |
| Brand | Wickmann |
| Height | 1.2mm |
| Length | 4.73mm |
| Model | 1812L075/24DR |
| Width | 3.41mm |
| Series | 1812L |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Trip Current | 1.5A |
| Power Dissipation | 0.8W |
| Terminal Material | Solder Plated Copper |
| Time to Trip | 0.2s |
| Hold Current | 0.75A |
| Minimum Resistance | 0.11Ω |
| Maximum Resistance | 290mΩ |
Key Features
- Surface mount resettable fuse with compact 1812L package size saves board space.
- Operates reliably within temperature range of -40°C to 85°C.
- Low resistance design with minimum 0.11Ω and maximum 290mΩ for efficient current flow.
- Solder plated copper terminals ensure secure and durable connections.
- Fast trip time of 0.2 seconds supports quick fault clearance.
- Lead-free and compatible with high-temperature soldering processes.
- Power dissipation rated at 0.8W for reliable performance in automotive and electronic applications.
- Wide industrial applications including automotive surface-mount circuits requiring resettable protection.
Product Description
Wickmann 1812L075/24DR resettable fuse is a high-quality surface mount device designed for overcurrent protection at 24V DC voltage and 0.75A hold current. It features a fast response time to fault currents with a trip time of 0.2 seconds, making it suitable for sensitive electronic circuits where quick protection is essential.
The fuse uses a compact 1812L package which conserves board space without compromising on reliability. Its dimensions of 4.73mm length, 3.41mm width, and 1.2mm height allow integration into densely packed circuit boards.
Constructed with solder-plated copper terminals, it ensures excellent electrical connectivity and secure mounting. The fuse’s low resistance design (minimum 0.11Ω, maximum 290mΩ) minimizes voltage drop and energy loss, supporting efficient circuit operation.
Rated for operation between -40°C and 85°C, this resettable fuse withstands harsh environmental and temperature conditions common in automotive and industrial applications. Its 0.8W power dissipation rating guarantees stable performance during normal and fault conditions.
Lead-free composition ensures RoHS compliance and compatibility with modern manufacturing standards including high temperature solders. The device is part of Wickmann's 1812L series known for quality and durability.
This resettable fuse is ideally applied in automotive surface-mount circuits, industrial electronics, manufacturing equipment, and HVAC systems needing resettable overcurrent protection.
Surface mount resettable fuse with compact 1812L package size saves board space. Operates reliably within temperature range of -40°C to 85°C. Low resistance design with minimum 0.11Ω and maximum 290mΩ for efficient current flow.
Solder plated copper terminals ensure secure and durable connections. Fast trip time of 0.2 seconds supports quick fault clearance. Lead-free and compatible with high-temperature soldering processes. Power dissipation rated at 0.8W for reliable performance in automotive and electronic applications.
Wide industrial applications including automotive surface-mount circuits requiring resettable protection. Explore Wickmann's wide range of Resettable Fuses and electrical protective components on EnvMart for industrial, automotive, and commercial electronics needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The hold current rating of this resettable fuse is 0.75A.
This model is rated for operation at 24V DC.
The trip time for this resettable fuse is 0.2 seconds.
The dimensions are 4.73mm in length, 3.41mm in width, and 1.2mm in height.
It operates reliably within a temperature range of -40°C to 85°C.
The maximum resistance of this fuse is 290mΩ.
The terminals are made of solder-plated copper, ensuring secure connections.
The power dissipation rating is 0.8W.
The minimum resistance is 0.11Ω.
It is suitable for automotive surface-mount circuits, industrial electronics, and HVAC systems requiring resettable overcurrent protection.
It has a fast response time with a trip time of 0.2 seconds, allowing for quick fault clearance.
Yes, it is lead-free and compatible with high-temperature soldering processes, ensuring compliance with modern manufacturing standards.
