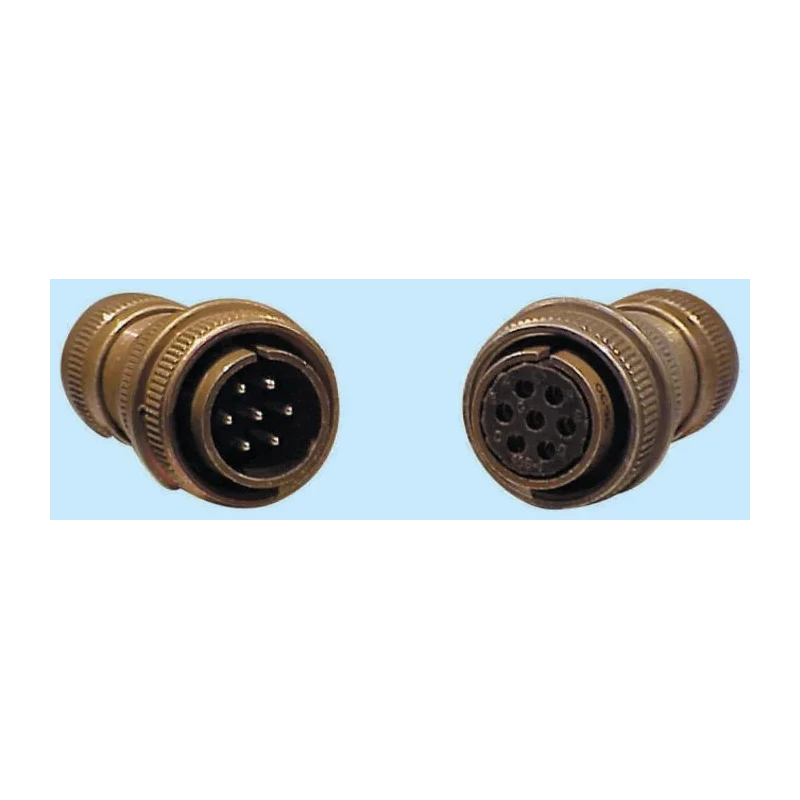

Glenair Copper Alloy Straight 7 Way Cable MIL Spec Circular Connector Male Female Contacts Shell Size 16S IT3106A16S1SPHM

Free Delivery in India | Lowest Global Shipping Charges

Glenair Copper Alloy Straight 7 Way Cable MIL Spec Circular Connector Male Female Contacts Shell Size 16S IT3106A16S1SPHM

Name: Glenair Copper Alloy Straight 7 Way Cable MIL Spec Circular Connector Male Female Contacts Shell Size 16S IT3106A16S1SPHM
Brand: Glenair
SKU: 184042
Price: 732.62 USD
Availability: InStock



Category Mil Spec Circular Connector Brand Glenair Condition New

Specifications

Country of Origin	Italy
Voltage	500, 700V ac
Brand	Glenair
Orientation	Straight
Current	22A
Model	IT3106A16S1SPHM
Mount Type	Cable
Housing Material	Aluminium Alloy
Contact Material	Copper Alloy
Series	IT
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Contact Plating	Gold, Silver
Number of Contacts	7
Contact Gender	Female
Connector Gender	Male
Shell Size	16S
Military Standard	MIL-DTL-5015
Mating Type	Threaded
Connector Size	Standard
Shell Plating	Olive Drab Cadmium

Key Features

This connector features a durable aluminium alloy housing for robustness.
It has 7 female contacts with a current rating of 22A for proper circuit carrying capacity.
The connector uses threaded mating type ensuring secure connections.
Supports voltage up to 700V ac with a shell size of 16S.
Operating temperature range is from -55°C to 125°C suitable for harsh environments.
Contact plating is gold and silver for enhanced conductivity and corrosion resistance.
The connector termination type is solder, providing secure wiring.
It complies with MIL-DTL-5015 military standard for performance and durability.

Product Description

Glenair IT3106A16S1SPHM is a high-quality MIL Spec Circular Connector featuring a copper alloy construction with gold and silver plated contacts. This straight 7 way cable connector is designed for demanding electronic and power applications adhering to MIL-DTL-5015 standards. It supports current up to 22 amperes and voltages up to 700V ac, making it suitable for military, industrial, aerospace, and heavy equipment use.

The connector shell size 16S and threaded mating provide secure and reliable coupling. Its aluminium alloy housing is plated with olive drab cadmium to resist corrosion and damage in tough environments. The connector is terminated by soldering and has a female contact gender with a male connector gender, ideal for cable mounting applications where a robust connection is required.

Operating temperature ranges from -55°C to 125°C, ensuring effective functionality in extreme weather and temperature conditions. The rugged design supports various industrial sectors including aerospace, defense, manufacturing, and specialized electronics.

Durable aluminium alloy housing for long service life. Seven female copper alloy contacts with gold and silver plating for reliable signal transmission. Threaded mating ensures secure connector coupling. Suitable for voltages up to 700V ac and currents up to 22A.

Wide operating temperature range from -55°C to 125°C. Complies with MIL-DTL-5015 military specifications. Solder termination type for sturdy wiring connections. Straight orientation with cable mount type for flexible setup.

Country of origin is Italy, guaranteeing premium manufacturing quality. Glenair connectors are trusted globally in critical electronic and power systems. Browse our Mil Spec Circular Connector category for more reliable industrial-grade connectors and components for your applications.
