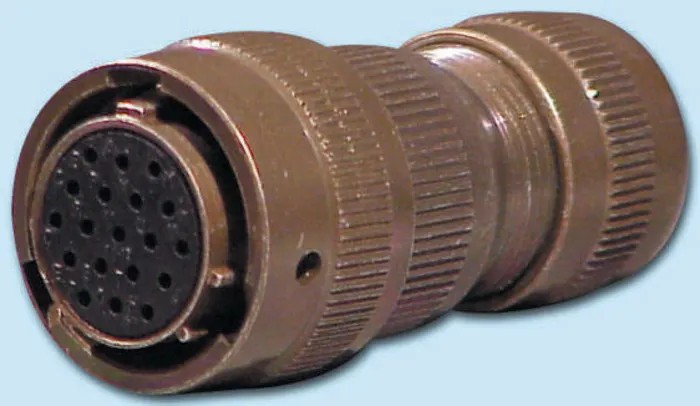

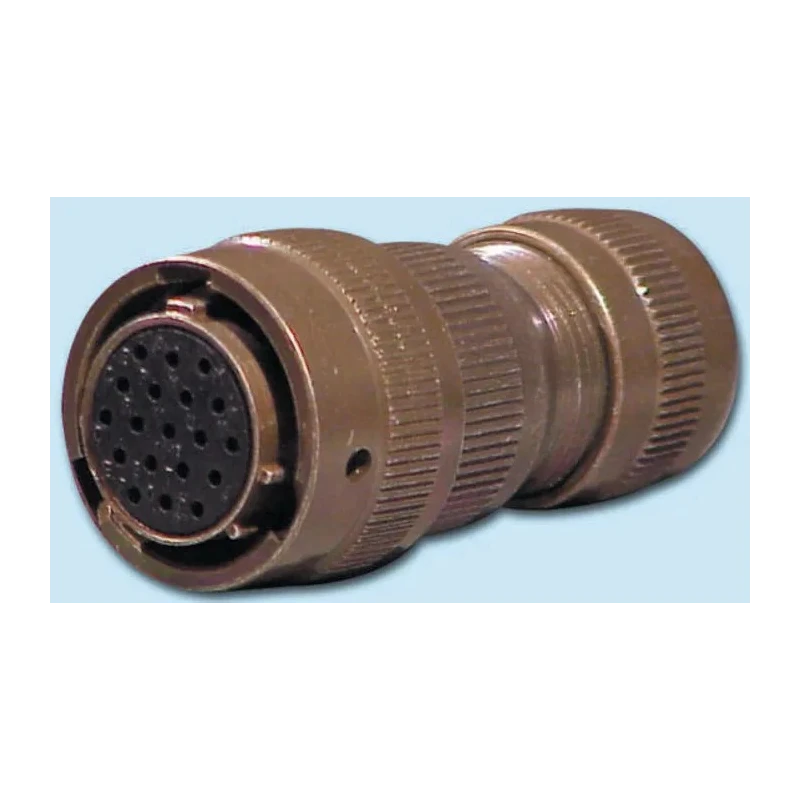

Glenair Copper Alloy Straight 6 Way Cable MIL Spec Circular Connector Male, Female Contacts, Shell Size 10 IPT06
Specifications
| Country of Origin | Italy |
|---|---|
| Voltage | 600, 700V ac |
| Brand | Glenair |
| Orientation | Straight |
| Current | 7.5A |
| Model | IPT06 |
| IP Rating | IP65 |
| Mount Type | Cable |
| Housing Material | Aluminium Alloy |
| Contact Material | Copper Alloy |
| Series | IPT06 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 6 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 10 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Robust copper alloy construction with gold over nickel plating for excellent conductivity.
- Supports 6 contacts and a current rating of 7.5A suitable for moderate power applications.
- Designed with an IP65 rating to ensure protection against dust and water ingress.
- Operates efficiently at voltages up to 600 and 700V AC with bayonet mating type.
- Constructed with aluminium alloy housing plated with olive drab cadmium for durability and corrosion resistance.
- Capable of withstanding temperatures ranging from -55°C to 125°C for operation in harsh environments.
- Termination via solder method provides secure and reliable electrical connections.
- Meets MIL-DTL-26482 military standard ensuring compliance with stringent reliability requirements.
Product Description
Glenair IPT06 Copper Alloy Straight 6 Way Cable MIL Spec Circular Connector with shell size 10 combines high-quality materials to deliver dependable industrial and military-grade connectivity solutions. Manufactured from copper alloy with gold over nickel plating on contacts, this connector ensures minimal signal loss and high corrosion resistance.
The aluminium alloy housing is plated with olive drab cadmium to protect against harsh environmental conditions. Rated IP65, the connector is dust-tight and protected against water jets, suitable for rugged field applications.
Featuring six female contacts in a straight orientation, this connector supports 7.5A current and voltage ratings of 600 and 700V AC. The bayonet mating type facilitates quick and secure connections. Designed to operate across a temperature range from -55°C to 125°C, it is ideal for industrial, military, aerospace, and transportation applications.
Termination is via soldering, providing a reliable electrical interface. The connector complies with MIL-DTL-26482 standards, ensuring high durability and performance under demanding conditions.
This MIL Spec circular connector is a critical component in power and signal transmission for electronics components, aerospace, defense, and industrial equipment. The robust design supports reliability and longevity in challenging operational environments.
Robust copper alloy contacts with gold over nickel plating. IP65 rated dust and water protection. Suitable for voltages up to 700V AC and 7.5A current. Aluminium alloy housing with olive drab cadmium plating for durability.
Meets MIL-DTL-26482 military specifications. Operates in temperatures from -55°C to 125°C. Solder termination provides secure connections. Bayonet mating type for quick assembly. Explore more in the Mil Spec Circular Connector category at EnvMart for high-performance industrial connectors from trusted brands like Glenair.
