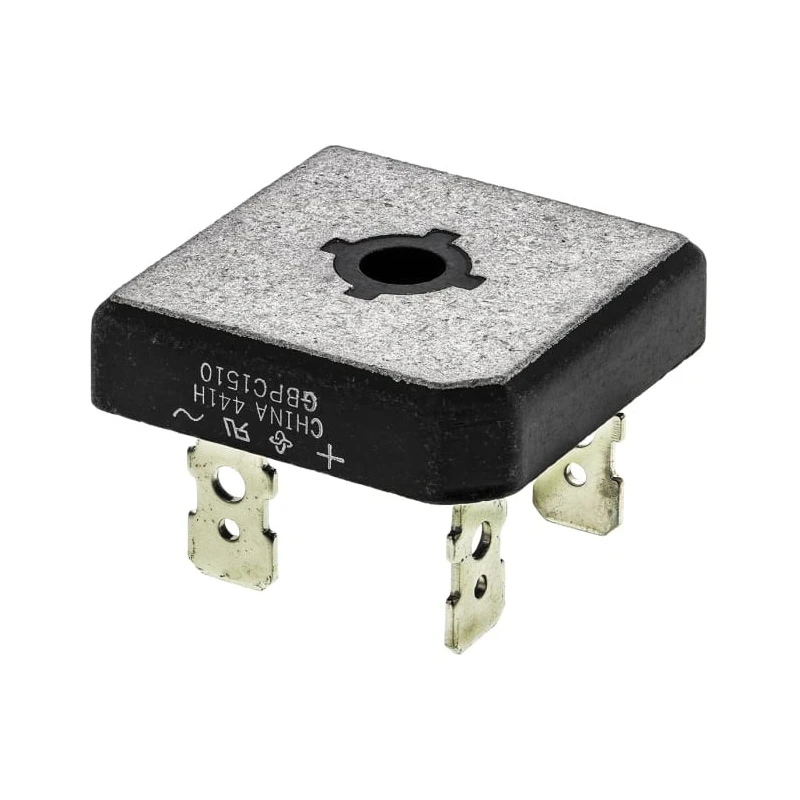

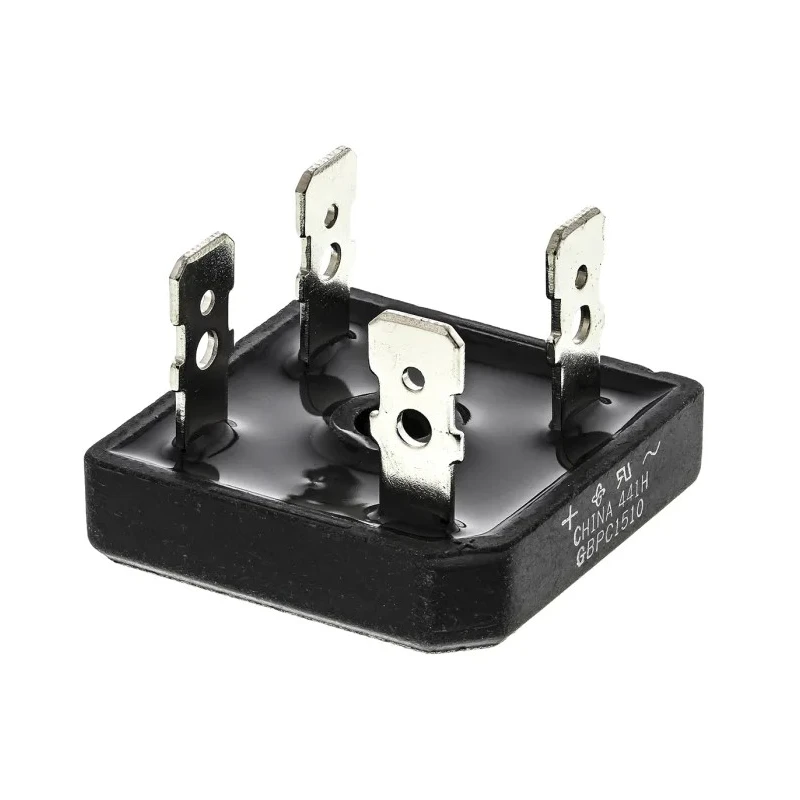

Vishay Semiconductor Bridge Rectifier 1000 V Peak Reverse Voltage 300 A Peak Surge Current 4-Pin Single GBPC1510-E4/51

Vishay GBPC1510-E4/51 Bridge Rectifier is a high-quality semiconductor device designed to convert AC input into DC output through full-wave rectification. Operating with a peak reverse repetitive voltage of 1000 V and a forward current of 15 A, it is suitable for demanding power conversion applications.

This bridge rectifier features a 4-pin single configuration and a compact GBPC package type with overall dimensions of 28.8 mm by 28.8 mm and a height of 7.62 mm. The package supports screw mounting and universal 3-way terminals that allow push-on, wrap-around, or solder installation, enhancing its versatility in industrial and electronic applications.

The device is designed to operate over a wide temperature range from -55°C to 150°C, making it reliable in harsh environments. Its low forward voltage drop of 1.1 V ensures energy-efficient operation, while the low peak reverse current of 5 μA minimizes power losses. The glass passivated chip junction technology enhances device longevity and performance stability.

Typical uses include power supplies, motor drives, and industrial automation systems where efficient AC to DC conversion is critical. The bridge rectifier's robustness makes it ideal for industrial, manufacturing, and commercial electronic equipment.

Operates over -55°C to 150°C temperature range ensuring thermal reliability. Forward surge current capability of 300 A for transient overload conditions. Compact and ergonomic GBPC package for easy screw mounting and wiring.

High electrical and mechanical reliability due to glass passivated die. Universal terminal design accommodates various assembly methods. Optimized for low power loss with 1.1 V forward voltage. Low leakage current for enhanced system efficiency.
