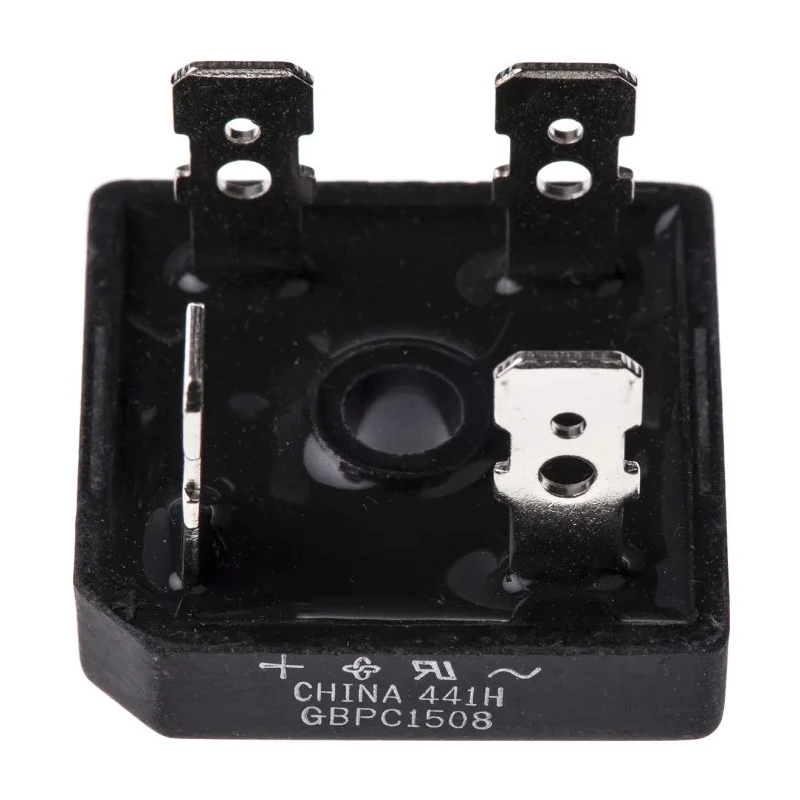

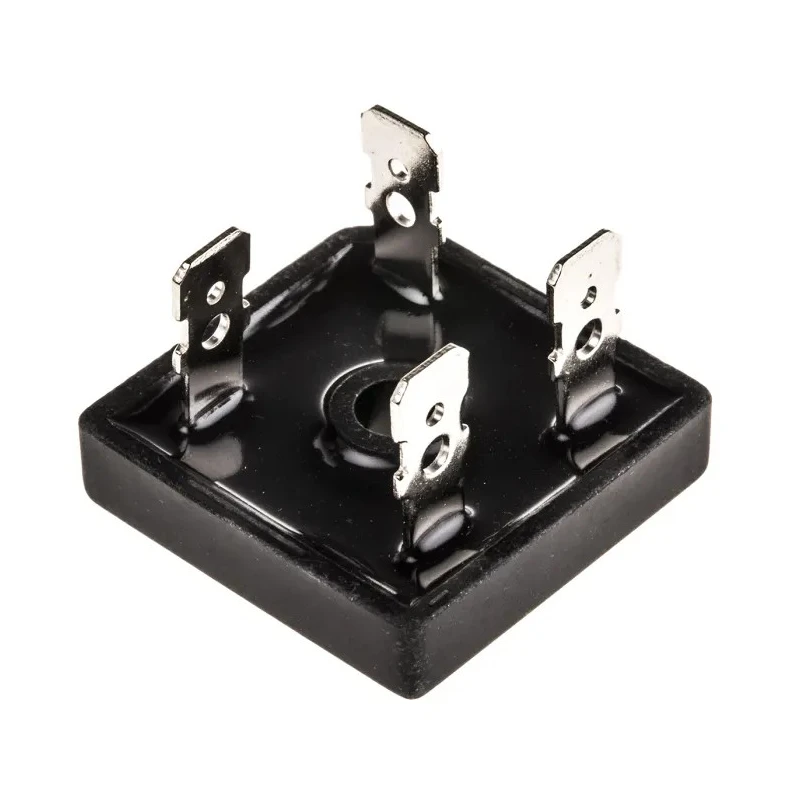

Vishay High Current Bridge Rectifier, 800 V Peak Reverse Voltage, 300 A Surge Current, 15 A Forward Current GBPC1508-E4/51

Vishay GBPC1508-E4/51 Bridge Rectifier is engineered for high-current semiconductor applications requiring reliable full-wave rectification. It features a peak reverse repetitive voltage rating of 800 V and a forward current rating of 15 A, providing robust performance for industrial, electronic, and power supply circuits.

The device is housed in a compact GBPC package with a screw mount type and 4 pins, facilitating straightforward and secure installation in power electronics assemblies. Its glass passivated chip junction technology ensures exceptional thermal stability and low thermal resistance, supporting continuous operation up to 150°C and minimum operation as low as -55°C.

The bridge rectifier supports a peak non-repetitive forward surge current of 300 A for transient conditions, accommodating high inrush currents during power up. Its universal three-way terminals allow flexible connection methods including push-on, wrap around, or solder, enhancing versatility in diverse electronic circuit board layouts.

Measuring 28.8 mm in length and width with a height of 7.62 mm, the device offers a space-efficient solution for power rectification needs. The peak forward voltage drop is a low 1.1 V, contributing to energy-efficient conduction, while the minimal peak reverse current leakage of 5 μA optimizes overall rectifier performance.

Supports 15 A continuous forward current with reliable thermal management. Universal terminal design adapts to multiple mounting styles. Made for demanding industrial, laboratory, and power electronics applications. Provides stable operation in wide temperature environments from -55°C to 150°C.

Compact footprint suits space-constrained designs. Optimized for full-wave rectification in single-phase applications.

Bridge Rectifiers like the Vishay GBPC1508-E4/51 play a crucial role in converting AC to DC power efficiently across various industrial machines, power supplies, and electronic devices. EnvMart customers can rely on this component for consistent quality and performance in demanding environments.
