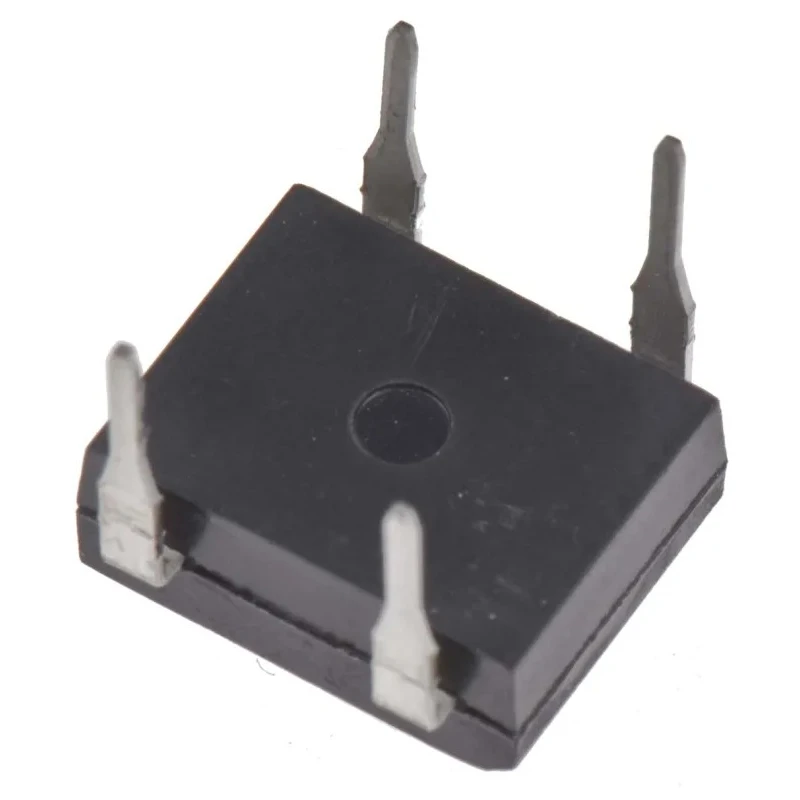

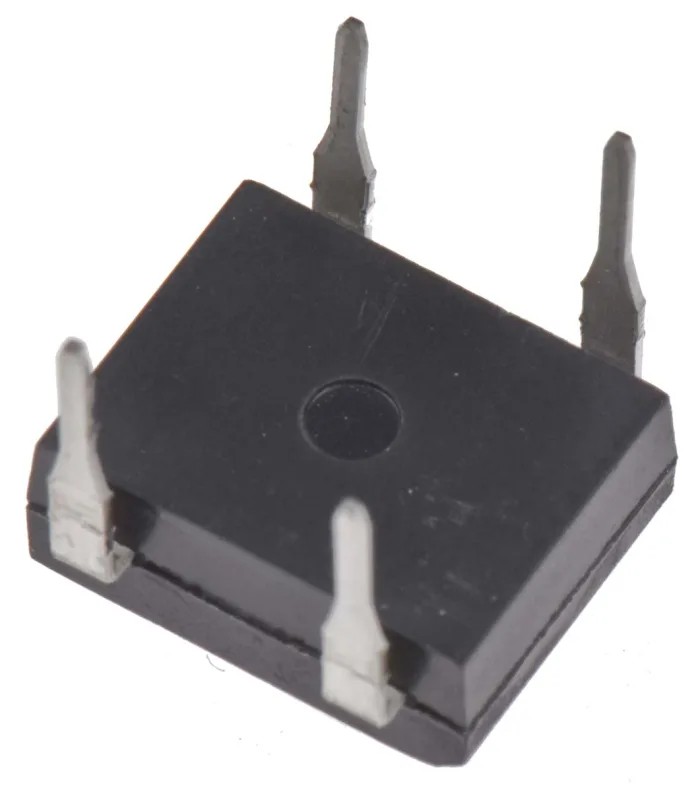

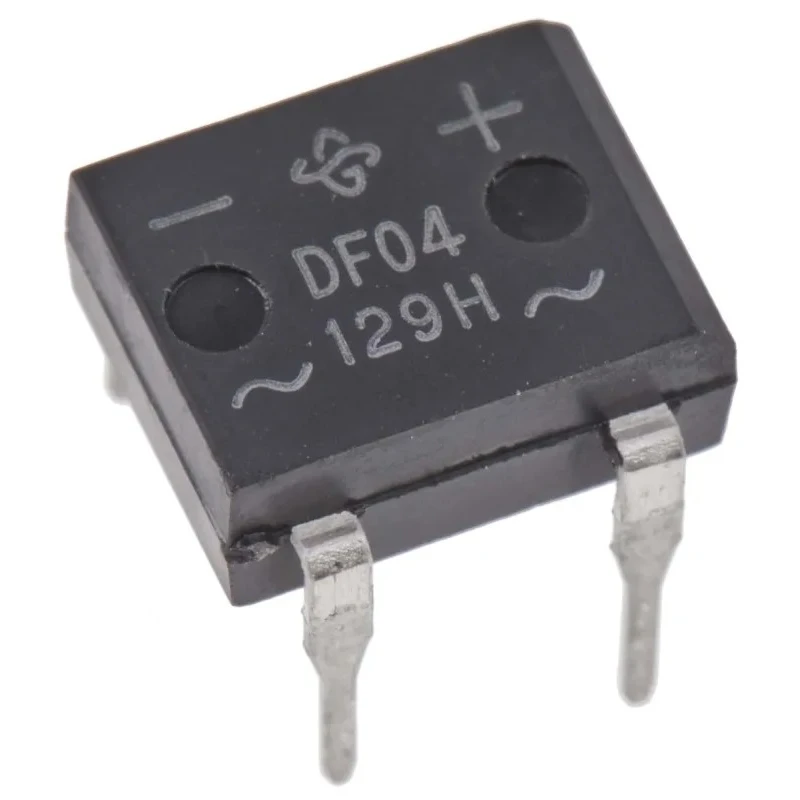

Vishay Bridge Rectifier 400 V 50 A 4-Pin Single DFM Package Through Hole Mount DF04M-E3/45

Free Delivery in India | Lowest Global Shipping Charges

Vishay Bridge Rectifier 400 V 50 A 4-Pin Single DFM Package Through Hole Mount DF04M-E3/45

Name: Vishay Bridge Rectifier 400 V 50 A 4-Pin Single DFM Package Through Hole Mount DF04M-E3/45
Brand: Vishay
SKU: 200775
Price: 0.47 USD
Availability: InStock



Category Bridge Rectifier Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Height	3.3mm
Length	8.51mm
Model	DF04M-E3/45
Width	6.5mm
Mount Type	Through Hole
Series	DF
Configuration	Single
Maximum Operating Temperature	150°C
Package Type	DFM
Minimum Operating Temperature	-55°C
Number of Phases	1

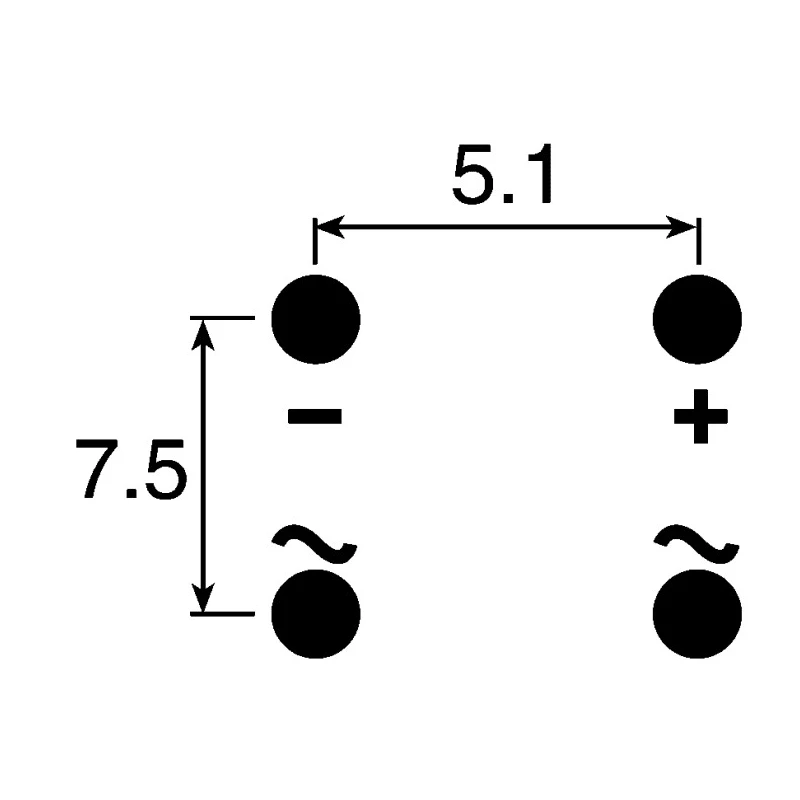

Pin Count	4
Peak Reverse Repetitive Voltage Vrrm	400V
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Forward Current If	1A
Peak Forward Voltage Vf	1.1V

Key Features

Equipped with 4 pins suitable for through hole PCB mounting.
Operating temperature range from -55°C to 150°C ensuring reliability under various conditions.
Features a peak non-repetitive forward surge current of 50 A and low forward voltage drop of 1.1 V.
Glass passivated chip junction technology for enhanced durability and performance.
Single-phase bridge rectifier configuration ideal for full-wave rectification.
Suitable for automated placement manufacturing processes.
Designed for applications requiring high surge current capability and thermal stability.

Product Description

Vishay DF04M-E3/45 Bridge Rectifier is a high-performance semiconductor device designed for converting alternating current (AC) input into direct current (DC) output with full-wave rectification. This single-phase rectifier is housed in a miniature DFM package with a 4-pin through hole mount, making it compatible with standard PCB assembly processes.

With a peak reverse repetitive voltage (Vrrm) rating of 400 V and a maximum forward current of 50 A, the DF04M-E3/45 is suitable for demanding electronic applications requiring reliable rectification performance. Its operating temperature range from -55°C up to 150°C ensures stable operation even in harsh environmental conditions.

The rectifier utilizes glass passivated chip junction technology which enhances its durability and resistance to thermal and electrical stresses. The device’s peak non-repetitive forward surge current is rated at 50 A, providing robustness against transient current spikes. A low peak forward voltage drop of 1.1 V improves efficiency by reducing power loss during conduction.

This bridge rectifier is ideally employed in industrial and electronic systems including power supplies, motor drives, and other equipment that require consistent DC output with minimal size and maximal thermal performance. It is engineered for automated placement, facilitating high-volume manufacturing.

Compact and reliable bridge rectifier for printed circuit board installation. Provides full-wave rectification for single-phase AC to DC conversion. Robust electrical ratings: 400 V peak reverse voltage and 50 A forward current.

Durable glass passivated junction ensures long operational life. Thermally stable within a wide temperature range (-55°C to 150°C). Low forward voltage drop minimizes power losses. Optimized for automated through hole PCB mounting processes.

Suitable for industrial, laboratory, HVAC, and manufacturing applications requiring efficient AC to DC conversion.
