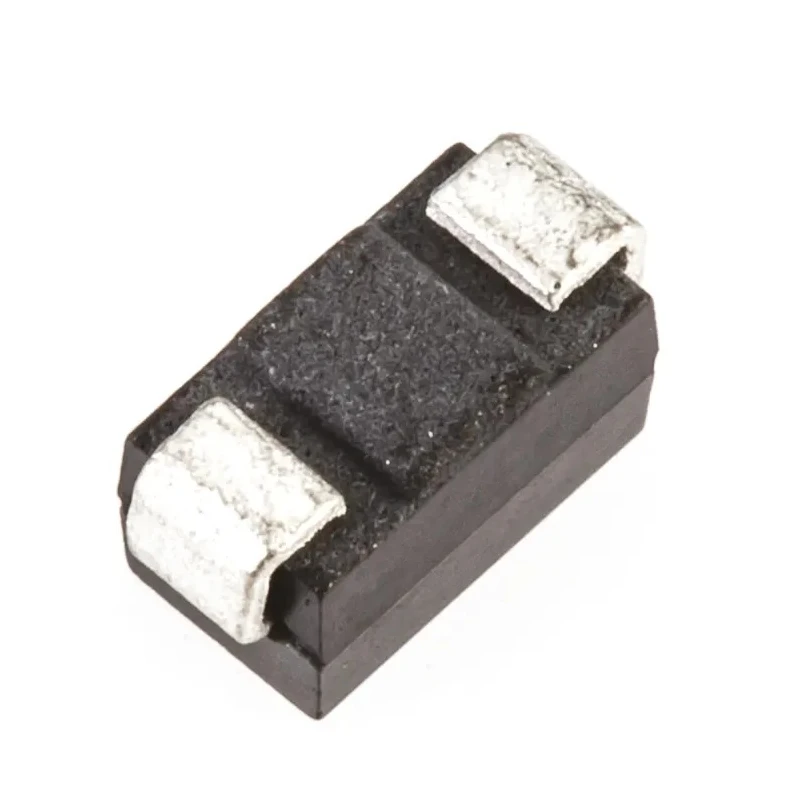

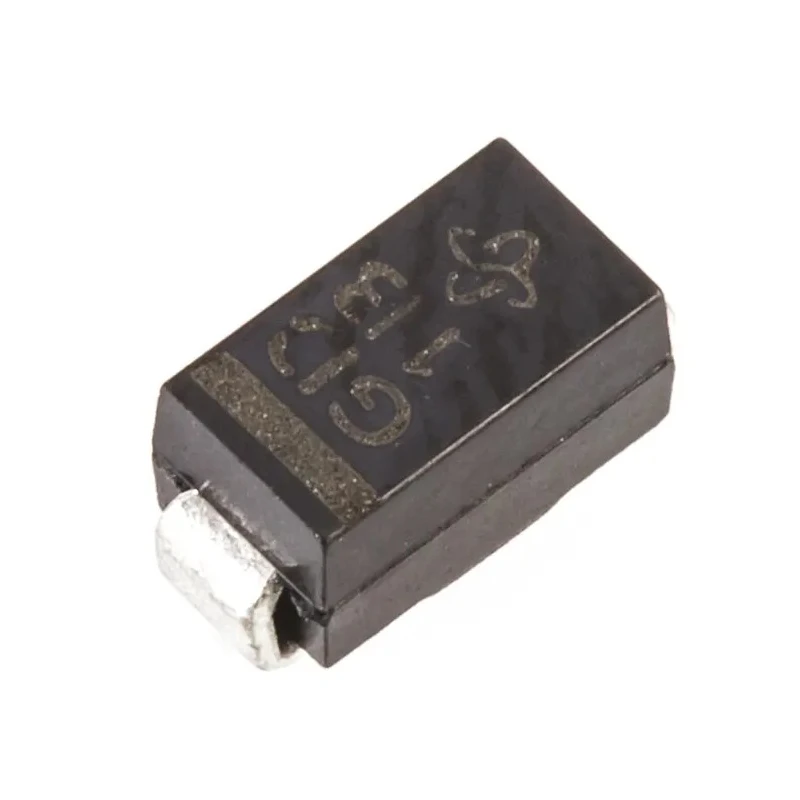

Vishay 200 V 1 A General Purpose Diode Surface Mount DO-214BA Package GF1D-E3/67A

Vishay GF1D-E3/67A is a high-efficiency general purpose silicon diode designed for surface mount technology (SMT) in a 2-pin DO-214BA package. It supports a maximum continuous forward current of 1 ampere and can block peak reverse repetitive voltages up to 200 volts, making it well suited for general rectification and switching applications in electronics.

The diode features a fast peak reverse recovery time of 2 microseconds, ensuring minimal switching losses and high-frequency operation capability. Its low forward voltage drop of 1.1 volts helps reduce power dissipation and improve energy efficiency in circuits.

Engineered to support a wide operating temperature range from -65°C up to 175°C, this diode is capable of reliable operation in demanding temperature environments including automotive electronics, industrial, and commercial applications. Its compliance with the automotive standard AEC-Q101 underscores its suitability for rigorous automotive system requirements.

Compact physical dimensions (length 4.75 mm, width 2.9 mm, height 2.74 mm) enable its use in compact assemblies where board space is limited. With a peak non-repetitive forward surge current rating of 30 amperes, the diode can handle transient surges commonly encountered in electrical systems.

Applications include use in power supplies, rectifier circuits, switching circuits, and general electronic devices requiring reliable, fast, general purpose diodes. The surface mount package facilitates automated assembly and reduces overall system size.

Designed for surface mount applications with a compact DO-214BA package. Maximum continuous forward current of 1 ampere for reliable performance. Peak reverse repetitive voltage rated at 200 volts suitable for various electronic circuits.

Fast recovery time of 2 microseconds ensuring efficient switching. Operates stably from -65°C to 175°C to withstand harsh environments. Low forward voltage drop of 1.1 volts minimizing power dissipation. Complies with automotive standard AEC-Q101, ensuring quality and reliability.

Compact dimensions: length 4.75 mm, width 2.9 mm, and height 2.74 mm for space-constrained applications. Peak non-repetitive forward surge current capability of 30 amperes for transient robustness. Ideal for general purpose rectification and switching in power and electronic circuits.
