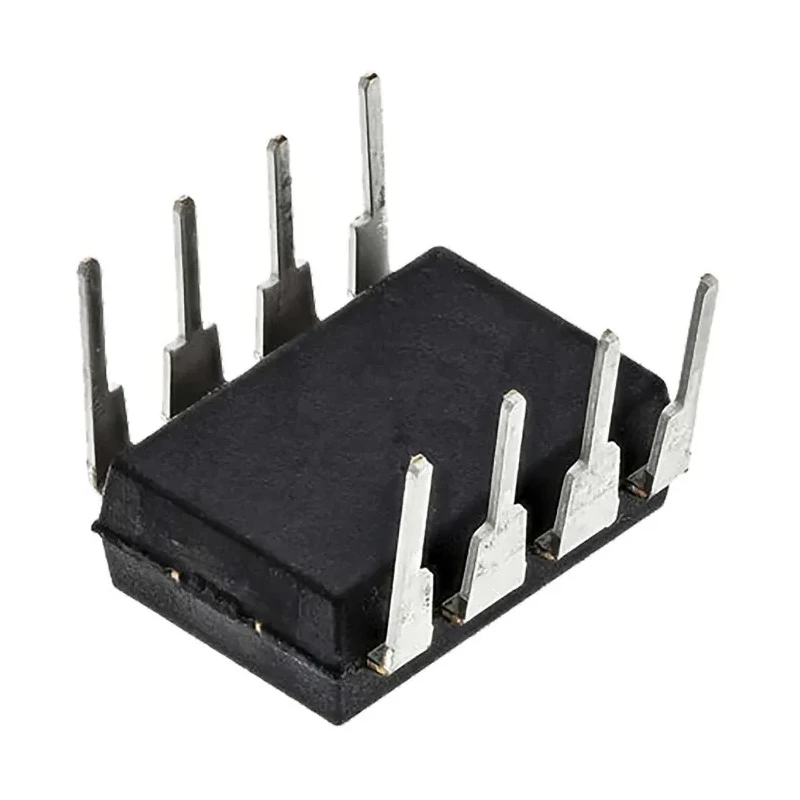

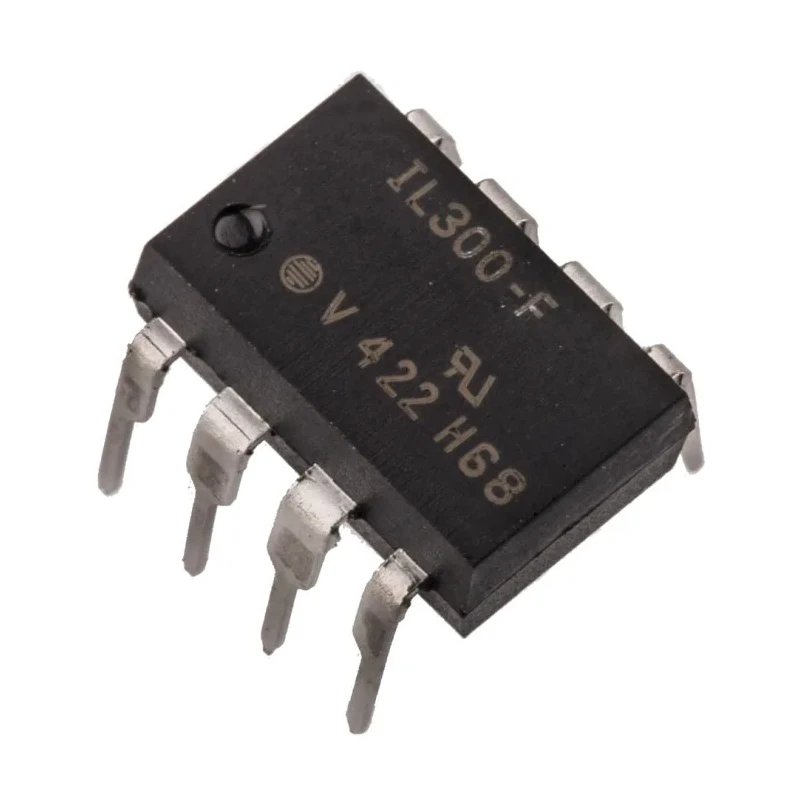

Vishay DC Input Linear Optocoupler Through Hole 8-Pin PDIP IL300-EF

Vishay IL300-EF is a high-performance linear optocoupler designed for DC input signal isolation, housed in an 8-pin PDIP through-hole package. This device provides electrical isolation to enhance signal accuracy and safety in electronic circuits.

The device is suitable for industrial applications requiring precise signal isolation, such as instrumentation, data acquisition, and process control systems. Its wide operating temperature range from -55°C to 100°C ensures reliable operation in harsh environments.

The IL300-EF features a maximum forward voltage of 1.5 V and can handle input currents up to 60 mA. It offers a high isolation voltage rating of 5300 V AC, meeting stringent safety standards for industrial use.

With typical rise and fall times of 1.75 μs, this optocoupler ensures rapid response times critical for timely signal processing. The 8-pin PDIP package design supports through-hole mounting, enabling compatibility with a wide range of printed circuit boards and assembly processes.

Compliant with standards such as cUL, UL, BSI, and DIN EN 60747-5-5 (VDE 0884-5), the IL300-EF assures quality and safety for demanding industrial and laboratory applications. Provides linear DC input optical isolation for enhanced signal integrity.

Features an 8-pin PDIP package suitable for through-hole mounting. Offers high isolation voltage of 5300V AC for safe electrical separation. Designed for operation between -55°C and 100°C for robust industrial use. Typical rise and fall time of 1.75 microseconds ensures fast signal response.

Maximum forward voltage of 1.5 V and maximum input current of 60 mA for reliable performance. Packaged in tubes, facilitating efficient automated assembly. Complies with multiple international standards including UL and VDE 0884-5 for assured quality.

This optocoupler is ideal for use across industrial, laboratory, and manufacturing environments, enhancing electrical isolation and protecting sensitive electronics from high voltage surges. It is an essential component in precision measurement and control systems.
