Vishay Bridge Rectifier 600 V 300 A, 4-Pin Screw Mount GBPC2506-E4/51

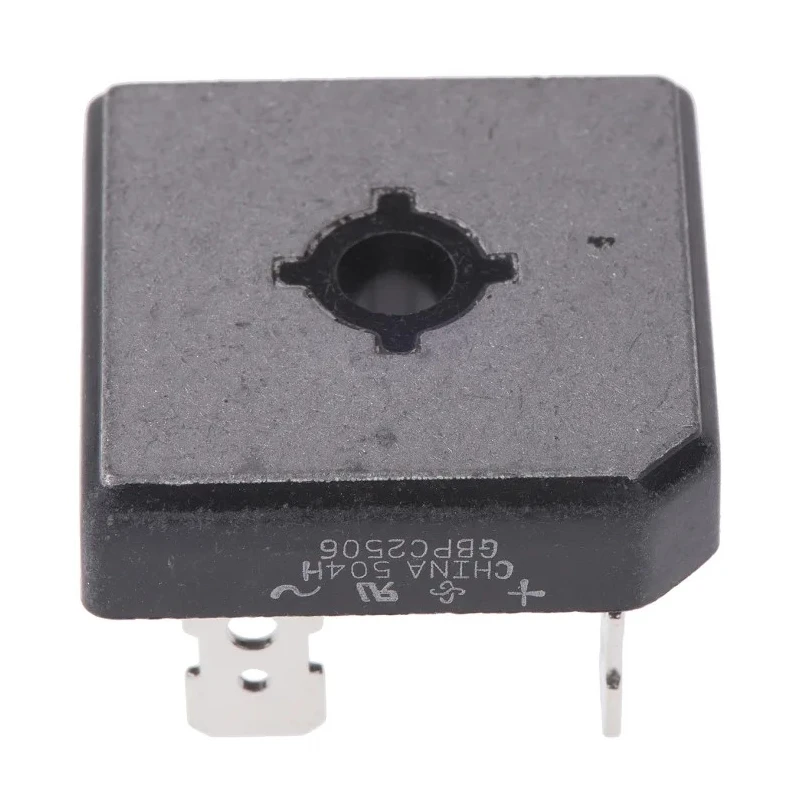

The Vishay GBPC2506-E4/51 bridge rectifier is a single-phase, 4-pin, screw mount semiconductor component designed for reliable AC to DC conversion with a peak repetitive reverse voltage of 600 V and a forward current of 25 A. Operating within a temperature range from -55°C to 150°C, this device features a peak non-repetitive forward surge current capability of 300 A, making it robust against transient overloads.

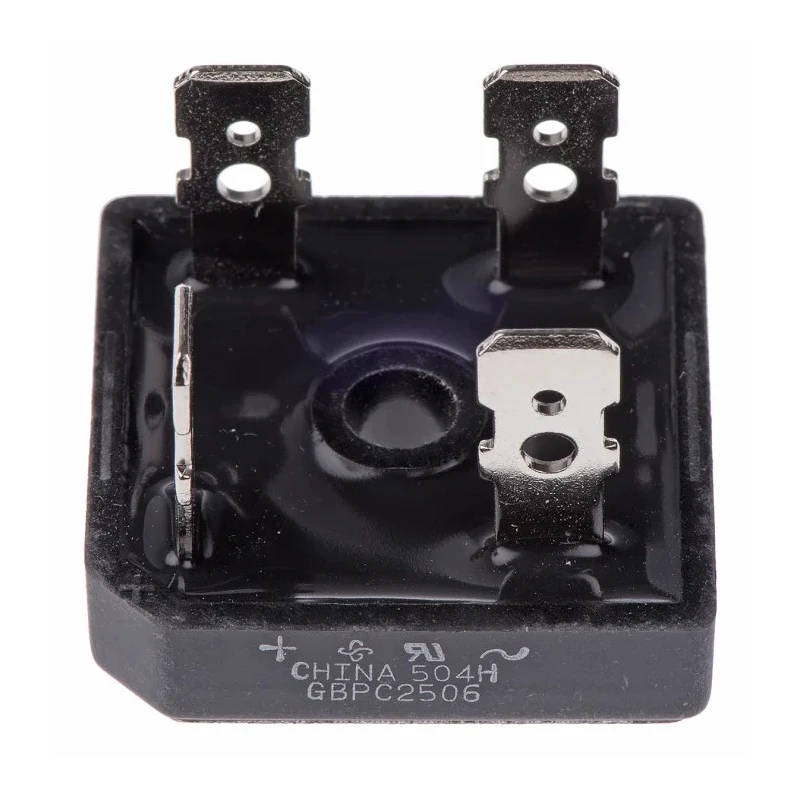

Constructed in a GBPC package with dimensions 28.8 mm length, 28.8 mm width, and 7.62 mm height, the rectifier provides easy integration using its universal 3-way terminal design compatible with snap-on, wire wrap-around, or PCB mounting configurations. Terminals are nickel plated on faston lugs or silver plated on wire leads with polarity clearly marked for installation convenience.

This bridge rectifier boasts a low peak forward voltage drop of 1.1 V and a peak reverse current of just 5 μA, ensuring high efficiency and minimal leakage currents in sensitive applications. Its molding compound meets UL 94 V-0 flammability rating, assuring safety and reliability in industrial and consumer environments.

Typical applications include general-purpose use in AC/DC bridge full wave rectification circuits for power supplies, home appliances, office equipment, and industrial automation systems. The device supports solder dip processes up to 275°C for 10 seconds per JESD standards, ensuring compatibility with standard PCB assembly techniques.

Features such as a mount torque limit of 20 inches-lbs and RoHS compliance further enhance the utility of this rectifier. The GBPC25 series from Vishay is recognized for its combination of compact size, high surge current capability, and thermal performance suitable for demanding environments.

Operates from -55°C to 150°C maximum temperature rating. Peak surge current rating of 300 A protects against overload conditions. Dimensions 28.8 x 28.8 x 7.62 mm accommodate compact designs. RoHS compliant commercial grade for environmental safety.

Universal triple terminal options for flexible mounting. Nickel plated and silver plated terminals ensure reliable connections. Suitable for diverse industrial, laboratory, and consumer applications. Enables robust full-wave rectification in AC/DC power conversion.
