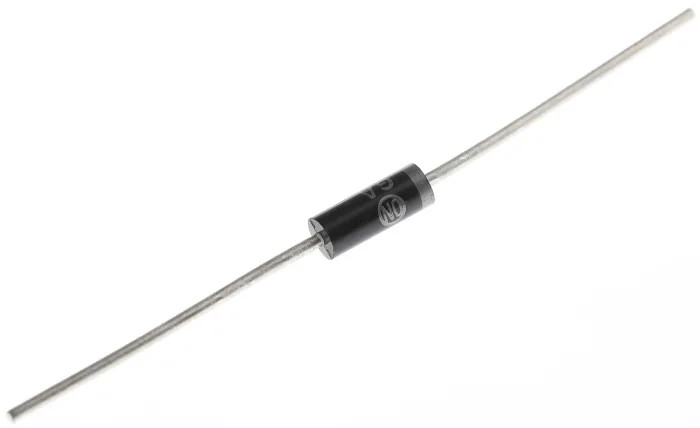

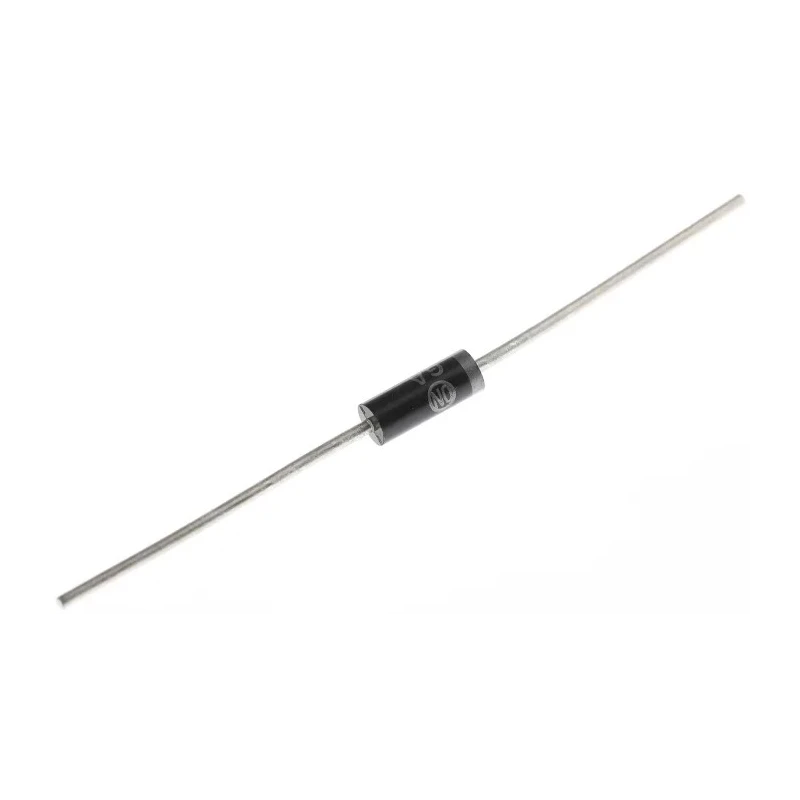

onsemi 28 V 5 W Zener Diode Single 5% Through Hole 2-Pin DO-15 1N5362BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 3.68mm |
| Length | 8.89mm |
| Model | 1N5362BRLG |
| Mount Type | Through Hole |
| Series | 1N53 |
| Maximum Operating Temperature | 200°C |
| Package Type | DO-15 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 5W |
| Diode Configuration | Single |
| Test Current It | 50mA |
| Maximum Reverse Leakage Current | 500nA |
| Nominal Zener Voltage Vz | 28V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 6Ω |
| onsemi, 28V Zener Diode 5% 5 W Through Hole 2-Pin Surmetic 40Brand | ON Semiconductor |
Key Features
- The diode configuration is single, suitable for discrete semiconductor applications.
- It supports a maximum power dissipation of 5 watts, enabling stable voltage regulation.
- The package type is DO-15 with a through-hole mount design for ease of PCB integration.
- Test current is 50 mA with maximum reverse leakage current at 500 nA.
- Operating temperature ranges from -65°C to 200°C, ensuring durability in harsh environments.
- The diode features a maximum zener impedance of 6 ohms for effective voltage stability.
- The device dimensions include a length of 8.89 mm and height of 3.68 mm.
- Designed for industrial use where precise voltage regulation is critical.
Product Description
onsemi 1N5362BRLG Zener Diode is a robust 28 V voltage regulator designed for industrial and electronic semiconductor applications. It features a single diode configuration in a through-hole 2-pin DO-15 package, ensuring convenient and secure mounting on printed circuit boards.
This 5 watt diode exhibits a nominal zener voltage of 28 V with a 5% voltage tolerance, making it suitable for precision voltage regulation tasks. The device supports a test current of 50 mA and maintains a low maximum reverse leakage current of 500 nA, which helps in minimizing power losses during operation.
The maximum zener impedance of 6 ohms enhances its voltage stability, while the wide operating temperature range from -65°C to 200°C allows it to perform reliably in varied environmental conditions often encountered in industrial, laboratory, and commercial applications.
Manufactured with a molded transfer-molded thermosetting plastic package, the diode is corrosion resistant and features leads that are optimized for soldering, offering durability and ease of assembly. The device dimensions are 8.89 mm in length and 3.68 mm in height, reflecting its compact form factor.
This onsemi 1N53 series device is ideal for use in applications requiring stable voltage regulation, including power supplies and electronic control circuits, providing superior performance and reliability.
The diode configuration is single for precise voltage regulation. Maximum power dissipation is 5 W to handle moderate power loads. Package type DO-15 with through-hole mounting is suitable for PCB assembly. Test current is specified at 50 mA to ensure stable device operation.
Maximum zener impedance of 6 Ω provides effective voltage control. Maximum reverse leakage current is limited to 500 nA for efficiency. Operating temperature range from -65°C to 200°C adapts to industrial use. Device dimensions are 8.89 mm length and 3.68 mm height for compactness.
Material and design provide corrosion resistance and solderability. Explore extensive semiconductor components on EnvMart for your advanced electronic and industrial needs.
Explore more products in our Zener Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal zener voltage of this model is 28 V, making it suitable for precision voltage regulation tasks.
This diode supports a maximum power dissipation of 5 watts, allowing it to handle moderate power loads effectively.
The maximum reverse leakage current for this unit is limited to 500 nA, which helps minimize power losses during operation.
It operates within a temperature range of -65°C to 200°C, ensuring reliable performance in harsh environments.
The device dimensions are 8.89 mm in length and 3.68 mm in height, reflecting its compact form factor.
This diode uses a through-hole mount design, which facilitates easy integration into printed circuit boards (PCBs).
The maximum zener impedance is 6 ohms, which contributes to effective voltage stability during operation.
The test current for this model is specified at 50 mA, ensuring stable device operation under specified conditions.
This diode features a single diode configuration, meaning there is one element per chip.
It is packaged in a DO-15 type, which is designed for through-hole mounting.
This model is designed for industrial and electronic applications requiring stable voltage regulation, such as power supplies and electronic control circuits.
The country of origin for this diode is India.
