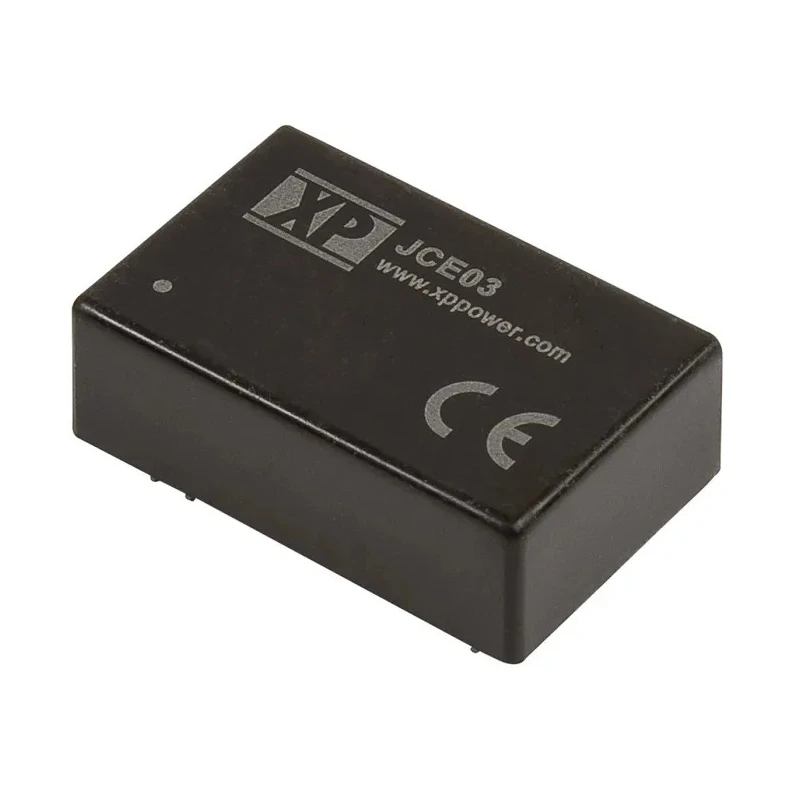

XP Power Fully Regulated Isolated DC/DC Converter 3W Output 24V DC 125mA Input 18-36V Through Hole DIP24 JCE03
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power JCE03 DC/DC Converter, 24V dc/ 125 mA, 36 |
| Brand | XP Power |
| Efficiency | 81% |
| Length | 31.75mm |
| Model | JCE03 |
| Depth | 10.16mm |
| Width | 20.32mm |
| Mount Type | Through Hole |
| Series | JCE03 |
| Maximum Operating Temperature | 100°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 3W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 24 |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 125mA |
| Output Voltage Adjustment Range | 18/36 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
Key Features
- Compact DIP24 package allows easy through-hole mounting.
- High isolation voltage of 1.5kV DC ensures reliable operation.
- Wide operating temperature from -40°C to 100°C supports harsh environments.
- No minimum load requirements for versatile applications.
- 81% efficiency optimizes power consumption.
- Suitable for commercial and industrial use cases.
- Designed and manufactured with high quality controls.
Product Description
XP Power JCE03 DC/DC Converter is a compact and highly reliable device designed for industrial and commercial power supply applications. This model provides fully regulated isolated DC/DC conversion with an output power of 3W, delivering 24V DC at 125mA. It operates over a wide input voltage range from 18V to 36V DC, making it adaptable for various power environments.
The converter features a DIP24 package for through-hole mounting, facilitating integration into existing PCB designs. With an isolation voltage rating of 1.5kV DC and an optional 3kV DC variant, it ensures electrical isolation critical for sensitive electronics.
Operating temperature ranges from -40°C up to 100°C, supporting reliable functionality in demanding temperature conditions. This converter does not require a minimum load, enhancing its versatility across different applications.
Its efficiency rating of 81% helps minimize energy losses and thermal buildup, contributing to longer device life and stable operation. Compact DIP24 through-hole mounting package. 1500 VDC isolation voltage standard. Wide -40°C to 100°C operating temperature range.
Regulated single output of 24V DC, 125mA, 3W power. No minimum load requirements for stable operation. High efficiency of 81% reduces power consumption. Input voltage range: 18 to 36 V DC with 2:1 ratio. Suitable for industrial, laboratory, and commercial power applications.
This XP Power JCE03 series DC/DC converter is made in Taiwan and represents a trusted solution for power supply isolation and voltage regulation in industrial equipment, communication devices, and embedded systems. Its robust design and performance make it a popular choice at EnvMart for high-quality power conversion needs.
Explore the XP Power JCE03 DC/DC Converter and other reliable electronic components in the Electronics & Electricals category on EnvMart for your industrial and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a regulated output voltage of 24V DC with a maximum output current of 125mA.
The input voltage range for this converter is from 18V to 36V DC, allowing for a 2:1 input ratio.
The efficiency rating of this unit is 81%, which helps to minimize energy losses during operation.
The dimensions of this converter are 31.75mm in length, 20.32mm in width, and 10.16mm in depth.
It features an isolation voltage rating of 1.5kV DC, ensuring reliable electrical isolation for sensitive electronics.
The operating temperature range for the JCE03 is from -40°C to 100°C, making it suitable for harsh environments.
No, this model does not have minimum load requirements, enhancing its versatility across various applications.
This unit is designed for through-hole mounting, facilitating easy integration into existing PCB designs.
The maximum output power of this converter is 3W, making it suitable for various power supply applications.
It is suitable for industrial, laboratory, and commercial power applications, providing reliable voltage regulation and isolation.
This converter has a single output, providing a straightforward solution for power supply needs.
The JCE03 model is manufactured in Taiwan, adhering to high-quality control standards.
