| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 0.9mm |
| Length | 2mm |
| Model | BAT6405WH6327XTSA1 |
| Width | 1.25mm |
| Mount Type | Surface |
| Series | BAT64 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 250mA |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | 2x Common Cathode Pair |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 200μA |
| Maximum Forward Voltage Vf | 750mV |
| Peak Reverse Recovery Time trr | 5ns |

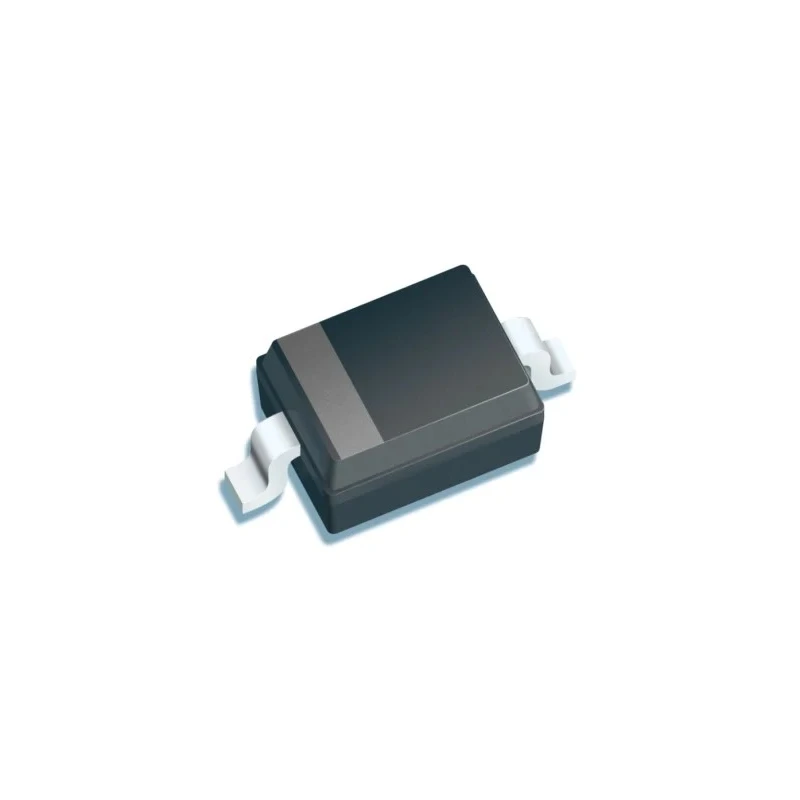

Infineon BAT6405WH6327XTSA1 is a silicon Schottky diode designed for surface mount applications requiring moderate current handling with high reliability. It supports a maximum continuous forward current of 250 mA and withstands a peak reverse repetitive voltage of 40 V, making it suitable for power management and protection circuits.
This diode utilizes a dual 2x common cathode pair configuration, integrating two Schottky diodes sharing a common cathode. The SOT-323 3-pin surface mount package enables compact PCB layouts in industrial, automotive, and consumer electronics.
Key electrical characteristics include a low forward voltage drop of 750 mV to reduce power losses and a fast peak reverse recovery time of 5 ns, suitable for high-frequency switching circuits. The device's low peak reverse current of 200 μA limits leakage currents, ensuring robust performance in low-current designs.
Operating over a broad temperature range from -55°C to 150°C and meeting AEC-Q101 standards, this diode is qualified for demanding automotive electronic systems and other industrial applications requiring rugged components.
Common applications include power-rail protection within automotive electronics, high-frequency rectification in switching power supplies, polarity protection in battery-operated modules, and clamping or steering in signal line circuits. Its small footprint suits dense surface mount assembly needs in compact electronic devices.
This diode provides 250 mA continuous forward current for moderate load applications. Forward voltage drop of 750 mV minimizes conduction losses in low voltage circuits. Peak reverse voltage rating of 40 V safeguards against moderate reverse stress.
Rapid 5 ns reverse recovery time enables efficient switching at high frequencies. Low peak reverse leakage of 200 μA preserves circuit integrity. Automotive-grade qualification per AEC-Q101 standard ensures reliability in harsh environments.
Compact SOT-323 surface mount package with 3 pins enables dense PCB layouts. Dual diode common cathode internal configuration supports versatile rectification needs. Explore more semiconductor components and Schottky Diodes at EnvMart for your electronics design and manufacturing projects.
