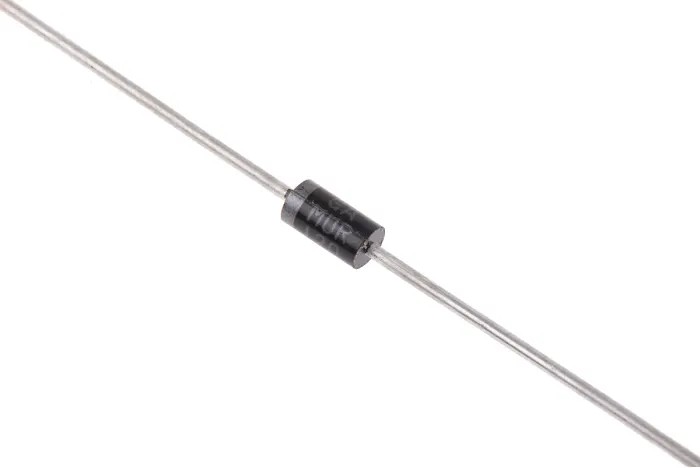

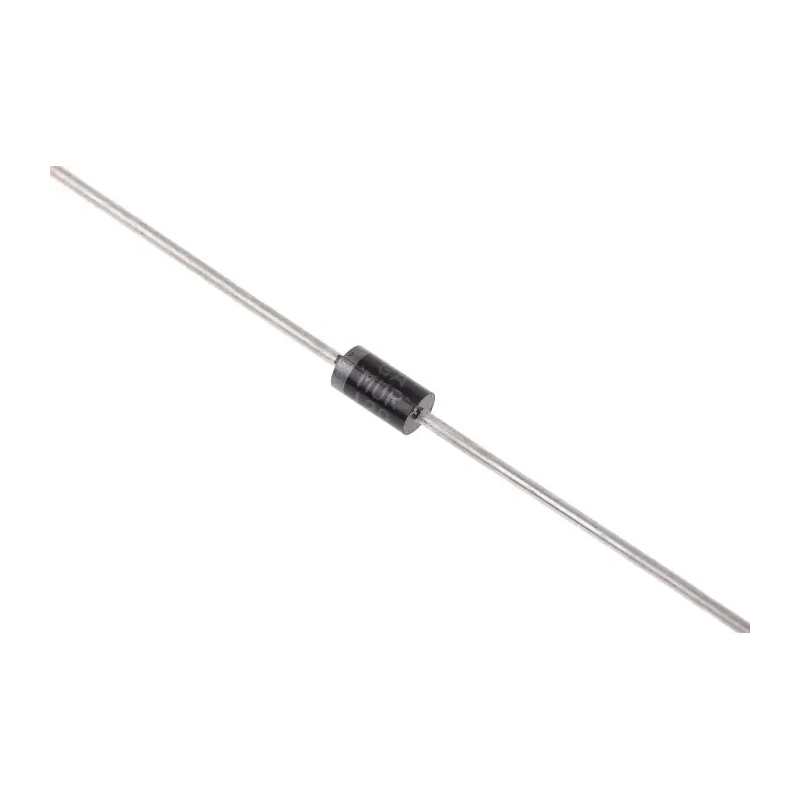

onsemi 200 V 1 A Through Hole Switching Diode 2-Pin DO-41 MUR120RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | MUR120RLG |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | MUR120 |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 200V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 35A |
| Maximum Forward Voltage Vf | 1.25V |
| Peak Reverse Recovery Time trr | 35ns |
Key Features
- Designed for high efficiency switching applications.
- Compact DO-41 package ensures easy through-hole mounting.
- Maximum continuous forward current of 1 ampere.
- Peak reverse repetitive voltage of 200 volts.
- Peak non-repetitive forward surge current of 35 amperes.
- Low forward voltage drop of 1.25 volts at rated current.
- Fast reverse recovery time of 35 nanoseconds.
- Wide operating temperature range from -65°C to 175°C.
Product Description
onsemi MUR120RLG is a reliable switching diode designed for use in electronic circuits requiring efficient rectification and switching at voltages up to 200 volts and currents of 1 ampere. Offered in a compact 2-pin DO-41 through-hole package, this diode is suited for industrial, automotive, and consumer electronic applications.
The diode features a maximum continuous forward current of 1 A and a peak reverse repetitive voltage rating of 200 V, allowing safe operation in moderate power switching circuits. It is capable of handling peak non-repetitive forward surge currents up to 35 A, allowing resilience during transient conditions.
With a low forward voltage drop of 1.25 V and a fast recovery time of 35 ns, the MUR120RLG diode enhances efficiency and performance in power supplies and switching regulators. It operates reliably across a temperature range from -65°C to 175°C, supporting harsh environments including automotive applications where it is certified to the AEC-Q101 standard.
The physical package measures 5.2 mm in length with a diameter of 2.7 mm, facilitating easy PCB mounting and integration in varied designs. This diode is particularly beneficial in industrial electronics, power management systems, automotive electronics, and general switching applications requiring robust and fast rectifiers.
Designed for efficient high voltage switching applications. Compact 2-pin DO-41 through-hole package. Continuous forward current capacity of 1 ampere. 200 V peak reverse repetitive voltage rating. High surge current tolerance up to 35 A.
Low forward voltage improves circuit efficiency. Fast reverse recovery time supports high-frequency switching. Wide temperature range suitable for automotive use. AEC-Q101 automotive standard compliant. Small dimensions for versatile circuit implementation.
This onsemi diode is ideal for applications in industrial electronics, power supply rectification, automotive circuits, and any system requiring reliable switching diode performance. Explore more semiconductors and discrete components in EnvMart's extensive electronics catalog for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 1 ampere.
It has a peak reverse repetitive voltage rating of 200 volts.
This diode comes in a compact 2-pin DO-41 through-hole package.
The diode can handle a peak non-repetitive forward surge current of up to 35 amperes.
The forward voltage drop at the rated current is 1.25 volts.
It features a fast reverse recovery time of 35 nanoseconds.
The diode operates reliably across a temperature range from -65°C to 175°C.
This model is compliant with the AEC-Q101 automotive standard.
The diode measures 5.2 mm in length and has a diameter of 2.7 mm.
It is classified as a switching rectifier.
The peak reverse current is rated at 2 microamperes (2μA).
This diode is suitable for industrial electronics, power supply rectification, and automotive circuits.
