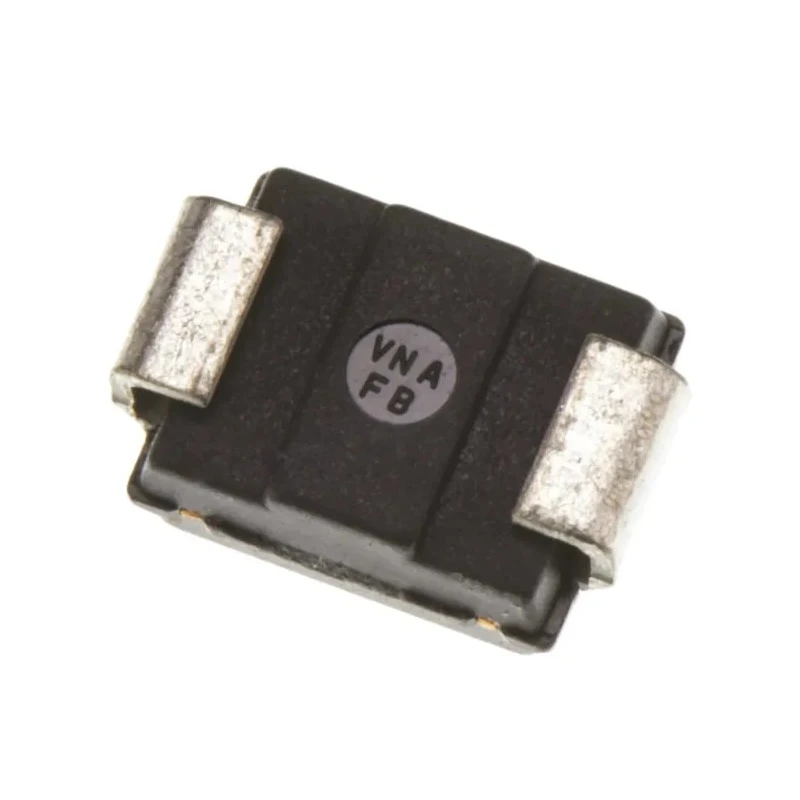

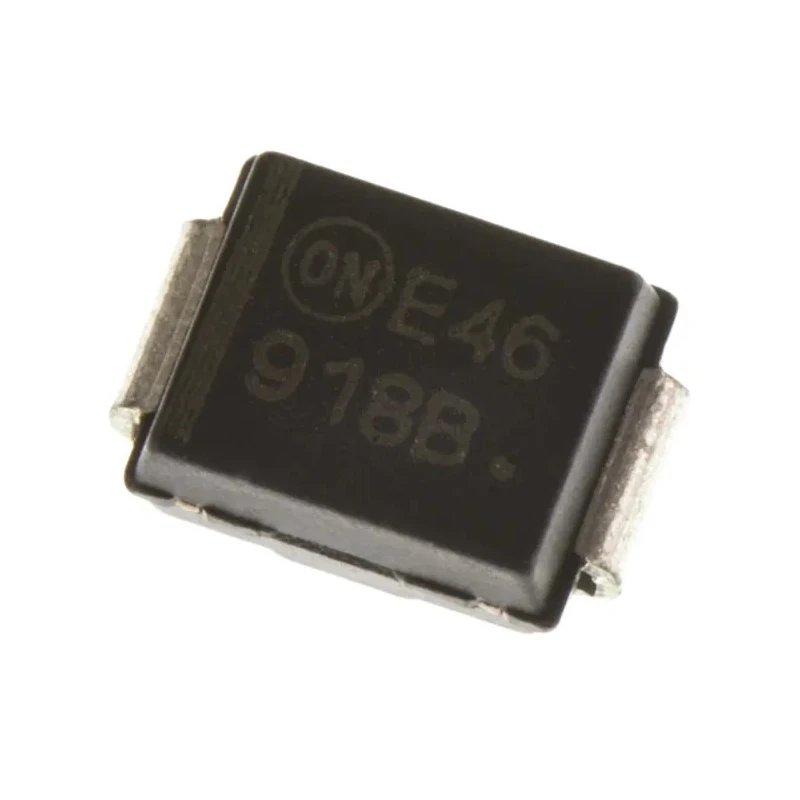

onsemi 5.1 V 3 W Zener Diode Single Surface Mount 2-Pin DO-214AA 1SMB5918BT3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.47mm |
| Length | 5.6mm |
| Model | 1SMB5918BT3G |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 3W |
| Diode Configuration | Single |
| Test Current It | 73.5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 5.1V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 4Ω |
Key Features
- Nominal Zener voltage of 5.1 volts for precise voltage regulation.
- Maximum power dissipation rating of 3 watts ensuring reliable operation.
- 2-pin surface mount DO-214AA package suitable for compact PCB designs.
- Zener voltage tolerance of ±5% for consistent performance.
- Test current of 73.5 mA and maximum zener impedance of 4 ohms for stable operation.
- Wide operating temperature range from -65°C to 150°C supports harsh environments.
- Low maximum reverse leakage current of 5 microamperes reduces leakage losses.
- Meets RoHS compliance and AEC-Q101 automotive standard for quality assurance.
Product Description
onsemi 1SMB5918BT3G is a high-quality Zener diode designed for voltage regulation in electronic circuits. It features a nominal Zener voltage of 5.1 volts with a tolerance of ±5%, enabling precise voltage control. The diode supports a maximum power dissipation of 3 W, making it suitable for moderate power applications.
This device utilizes a 2-pin DO-214AA surface mount package, allowing easy assembly on printed circuit boards with limited space. Its compact size of 5.6 mm length and 2.47 mm height further supports miniaturized designs.
The diode is characterized by a test current of 73.5 mA and maximum Zener impedance of 4 ohms, providing stable voltage regulation performance. It exhibits a very low maximum reverse leakage current of 5 microamperes, enhancing energy efficiency.
Operating temperature range from -65°C to 150°C ensures robust performance in extreme environments, including automotive applications. This Zener diode complies with RoHS standards and meets the automotive AEC-Q101 quality standard.
Nominal Zener voltage of 5.1 V with ±5% tolerance. Maximum power dissipation of 3 W. Surface mount DO-214AA package with 2 pins. Test current: 73.5 mA; maximum impedance: 4 Ω. Low reverse leakage current of 5 μA. Temperature range from -65°C to 150°C.
RoHS and AEC-Q101 automotive compliant. Dimensions: length 5.6 mm, height 2.47 mm.
This Zener diode is ideal for various industrial, automotive, and electronic voltage regulation applications. It ensures precise and stable voltage control for power supplies, signal conditioning, and protection circuits in manufacturing, automotive electronics, and general electronics assembly.
Explore our extensive range of Zener Diodes and related semiconductor components on EnvMart to meet all your project and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 5.1 volts, with a tolerance of ±5%.
This model has a maximum power dissipation rating of 3 watts, ensuring reliable operation in various applications.
It comes in a 2-pin DO-214AA surface mount package, suitable for compact PCB designs.
The operating temperature range is from -65°C to 150°C, making it suitable for harsh environments.
The test current for this Zener diode is 73.5 mA, which helps in achieving stable voltage regulation.
The maximum reverse leakage current is 5 microamperes, which helps reduce leakage losses.
This diode has a maximum Zener impedance of 4 ohms, contributing to its stable operation.
It meets RoHS compliance and the AEC-Q101 automotive standard for quality assurance.
The dimensions of this diode are 5.6 mm in length and 2.47 mm in height.
This model features a 2-pin configuration, facilitating easy integration into circuits.
It is suitable for various industrial, automotive, and electronic voltage regulation applications.
The country of origin for this Zener diode is India.
