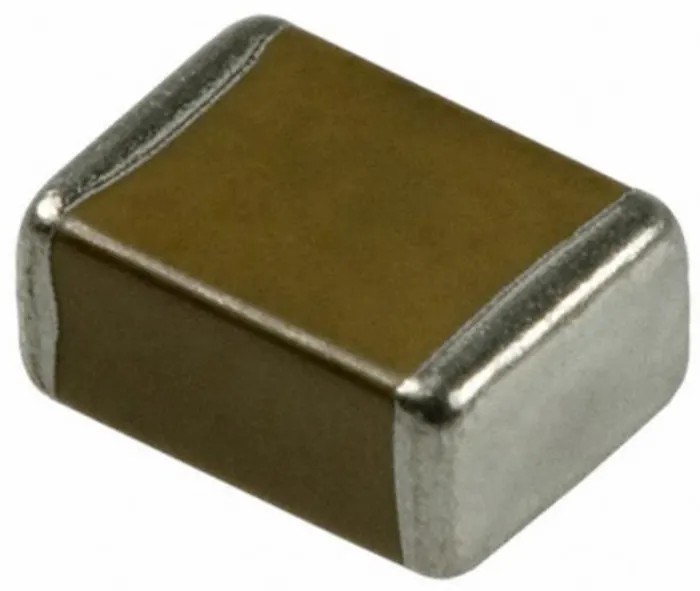

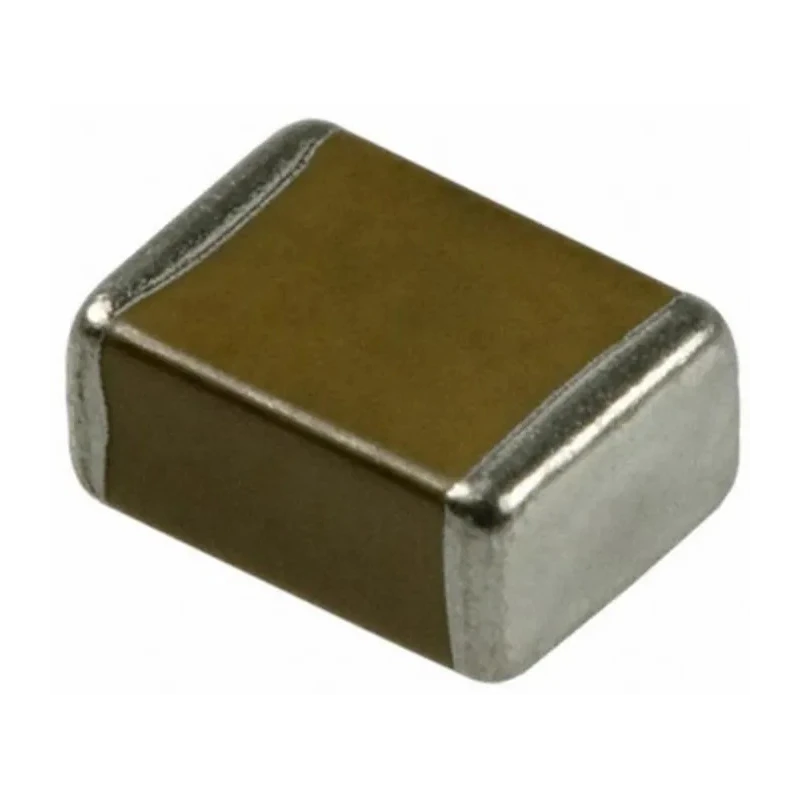

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 1kV dc ±5% Tolerance Surface Mount 1812 Package 1812AA102JAT2A
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 1kV dc |
| Brand | KYOCERA AVX |
| Height | 2.2mm |
| Length | 4.5mm |
| Model | 1812AA102JAT2A |
| Packaging | Reel |
| Width | 3.2mm |
| Mount Type | Surface |
| Series | KGM |
| Termination Type | Surface Mount |
| Maximum Operating Temperature | 125°C |
| Tolerance | ±5 % |
| Capacitance | 1nF |
| Minimum Operating Temperature | -55°C |
| Package/Case | 1812 |
Key Features
- High voltage MLCC designed for high frequency systems.
- Capacitance of 1 nanofarad ensures precise electrical performance.
- Rated for 1 kilovolt direct current operation.
- Compact 1812 package dimensions suitable for surface mounting.
- Temperature range from -55°C to 125°C for versatile applications.
- Low ESR at high frequencies enhances efficiency in power converters.
- Designed to withstand industrial operating conditions up to 125°C.
- Surface terminations provide reliable solderability on printed circuit boards.
Product Description
KYOCERA AVX 1812AA102JAT2A is a high voltage Multilayer Ceramic Capacitor (MLCC) with a capacitance of 1 nF and rated for 1kV direct current operation, delivered in a compact 1812 surface mount package.
This capacitor is engineered for use in high frequency and high voltage electronic systems such as snubbers in power converters, resonators in switching mode power supplies (SMPS), and high voltage coupling and DC blocking applications.
It features a ±5% capacitance tolerance and operates reliably across a wide temperature range from -55°C up to 125°C. The low equivalent series resistance (ESR) at high frequencies makes it suitable for industrial applications requiring efficient energy handling.
The component comes packaged on reels, facilitating efficient automated placement in manufacturing environments. Its surface mount termination ensures secure and stable solder joints on printed circuit boards.
Typical industrial uses include power electronics manufacturing, telecommunications, instrumentation, and control systems where precision and reliability at high voltage and frequency are critical.
High voltage MLCC designed for high frequency systems. Capacitance of 1 nanofarad ensures precise electrical performance. Rated for 1 kilovolt direct current operation. Compact 1812 package dimensions suitable for surface mounting.
Temperature range from -55°C to 125°C for versatile applications. Low ESR at high frequencies enhances efficiency in power converters. Designed to withstand industrial operating conditions up to 125°C. Surface terminations provide reliable solderability on printed circuit boards.
Packaged on reels for automated assembly processes. Compliance with RoHS directives ensures environmental safety. This capacitor is an essential component for electronic manufacturing in industrial, telecommunications, instrumentation, and automotive sectors.
Explore more high performance capacitors and MLCCs at EnvMart for your electronic component requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 1 nanofarad (1 nF).
It is rated for 1 kilovolt (1kV) direct current operation.
The dimensions of this unit are 4.5mm in length, 3.2mm in width, and 2.2mm in height.
It operates reliably within a temperature range of -55°C to 125°C.
This model features a surface mount design, suitable for automated assembly processes.
The capacitance tolerance for this capacitor is ±5%.
It has a low equivalent series resistance (ESR) at high frequencies, enhancing efficiency in power converters.
It is packaged on reels, facilitating efficient automated placement in manufacturing environments.
It is suitable for high frequency and high voltage electronic systems, including snubbers in power converters and resonators in switching mode power supplies (SMPS).
This model belongs to the KGM series of capacitors.
It features surface mount terminations, ensuring reliable solderability on printed circuit boards.
The country of origin for this capacitor is India.
