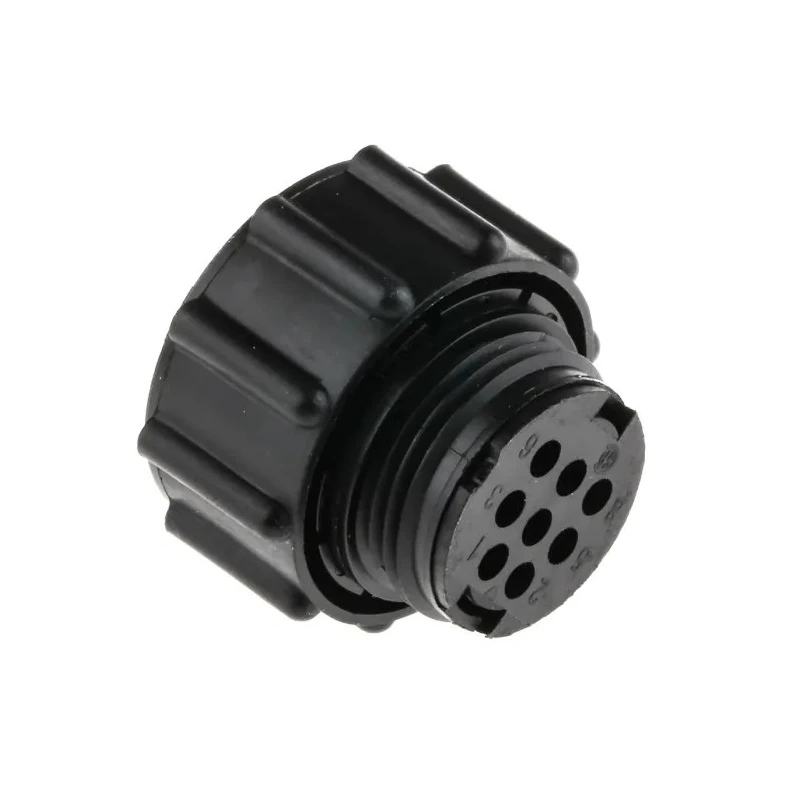

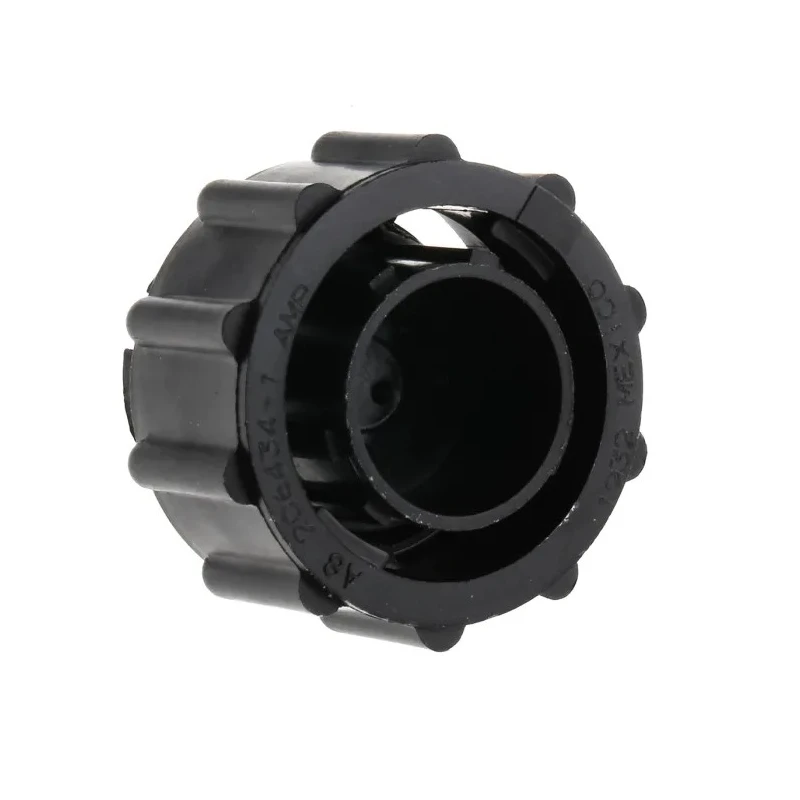

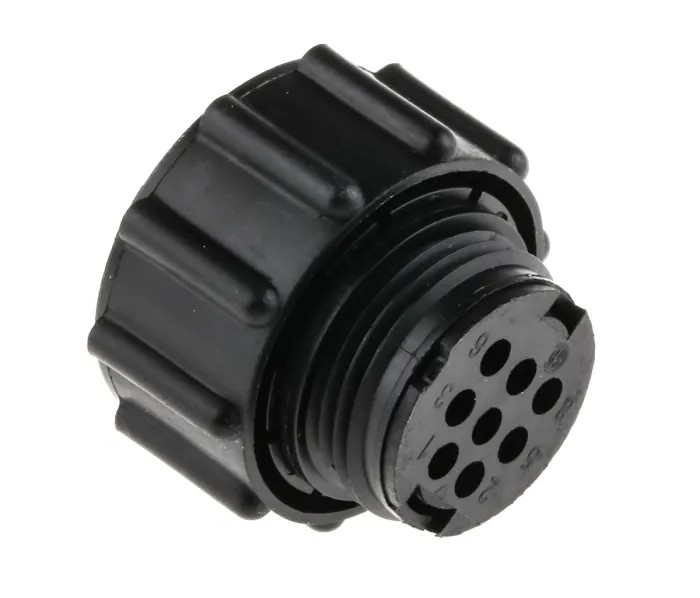

TE Connectivity Circular Connector 8 Contacts Cable Standard Plug Male CPC Series 206434-1
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 250V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 7.5A |
| Model | 206434-1 |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | CPC |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shell Size | 11 |
| Mating Type | Threaded |
| Connector Size | Standard |
| Plug/Socket | Plug |
Key Features
- This circular connector features 8 male contacts suitable for cable mounting.
- It supports a maximum current of 7.5A and voltage rating of 250V.
- Designed with a threaded mating type and straight orientation for secure connections.
- Constructed from heat-resistant thermoplastic housing material compliant with RoHS standards.
- Operates reliably within temperature range from -55°C to 105°C.
- Offers quick connect and disconnect features to save assembly time.
- Lightweight and rugged design resists vibration and shock in harsh environments.
- Compatible with Series 1 and Series 2 CPC contacts using crimp termination type.
Product Description
TE Connectivity 206434-1 Circular Connector 8 Contacts Cable Standard Plug Male CPC Series is an industrial-grade circular connector engineered for durable and reliable signal connections in demanding environments. It is ideally suited for use in industrial, transportation, process control, and automation applications requiring robust cable-mounted connections.
The connector features 8 individual male contacts designed to carry currents up to 7.5A at a voltage rating of 250V. Its threaded mating type ensures a secure and stable connection, while the straight orientation and standard shell size 11 provide compatibility with many industry-standard components.
Manufactured using UL 94V-0 rated thermoplastic material, this connector offers heat resistance and self-extinguishing properties, providing durability even in harsh industrial conditions. Operating temperature range spans from -55°C to 105°C, allowing broad environmental adaptability.
The CPC series connectors utilize crimp termination and are designed for field assembly, featuring quick connect/disconnect capabilities that facilitate efficient installation and repair. With a knurled coupling ring for positive locking, accidental disconnections are effectively prevented, ensuring dependable performance in vibration- and shock-prone applications.
Features 8 contacts with cable mount type for versatile industrial connections. Supports 7.5A current and 250V voltage for reliable signal transmission. Threaded mating type and straight orientation ensure secure fit and alignment.
Thermoplastic housing meets RoHS compliance and UL94V-0 flammability standards. Operating temperature range from -55°C to 105°C supports harsh environments. Quick connect/disconnect and crimp termination ease assembly and maintenance.
Lightweight, rugged design suitable for automotive, industrial, HVAC, and transportation uses. Compatible with Series 1 and Series 2 CPC contacts for flexible configuration.
This TE Connectivity circular connector is a versatile solution applicable in railway and transit vehicles, lighting and signage systems, HVAC equipment, motor vehicles including buses and off-road machinery, agricultural equipment, industrial automation setups, and instrumentation systems.
The CPC series’ durable construction and versatile design make it a preferred choice for demanding industrial circular connector applications requiring dependable connection quality and ease of field service.
Explore the range of industrial Circular Connectors at EnvMart for reliable electrical connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 7.5A and a voltage rating of 250V.
It operates reliably within a temperature range from -55°C to 105°C.
The housing is made from heat-resistant thermoplastic material that complies with RoHS standards.
This connector features 8 male contacts suitable for cable mounting.
It utilizes crimp termination type for secure connections.
The connector has a threaded mating type, ensuring a secure and stable connection.
Yes, it is compatible with Series 1 and Series 2 CPC contacts.
The shell size of this model is 11, which provides compatibility with many industry-standard components.
It is applicable in industrial, transportation, process control, and automation applications requiring robust cable-mounted connections.
It offers quick connect and disconnect capabilities, allowing for efficient installation and repair.
The country of origin for this model is India.
The specific dimensions and weight are not provided in the available data.
