onsemi 45 V 30 A Schottky Barrier Switching Diode 3-Pin TO-220AB MBR2545CTG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 45 V 30 A Schottky Barrier Switching Diode 3-Pin TO-220AB MBR2545CTG

Name: onsemi 45 V 30 A Schottky Barrier Switching Diode 3-Pin TO-220AB MBR2545CTG
Brand: onsemi
SKU: 196983
Price: 2.02 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	9.28mm
Length	10.28mm
Model	MBR2545CTG
Width	4.82mm
Mount Type	Through Hole
Maximum Operating Temperature	175°C
Package Type	TO-220AB
Minimum Operating Temperature	-65°C
Pin Count	3
Maximum Continuous Forward Current If	30A
Peak Reverse Repetitive Voltage Vrrm	45V
Diode Configuration	Common Cathode
Rectifier Type	Switching
Peak Reverse Current Ir	200μA
Peak Non-Repetitive Forward Surge Current Ifsm	150A
Maximum Forward Voltage Vf	0.67V
Diode,Rectifier,Barrier,Schottky,TO220,MBR2545CTBrand	ON Semiconductor
onsemi Diode, MBR2545CTBrand	ON Semiconductor

Key Features

Operates with a maximum continuous forward current of 30 A.
Peak reverse repetitive voltage rating of 45 V for robust operation.
Low forward voltage drop of 0.67 V minimizes power loss.
Wide operating temperature range from -65°C to 175°C.
Constructed with a common cathode configuration and switching rectifier type.
Supports a peak non-repetitive forward surge current of 150 A.
Designed using Schottky barrier principle for efficient conduction.
Epoxy moulded case provides mechanical stress protection and lightweight design.

Product Description

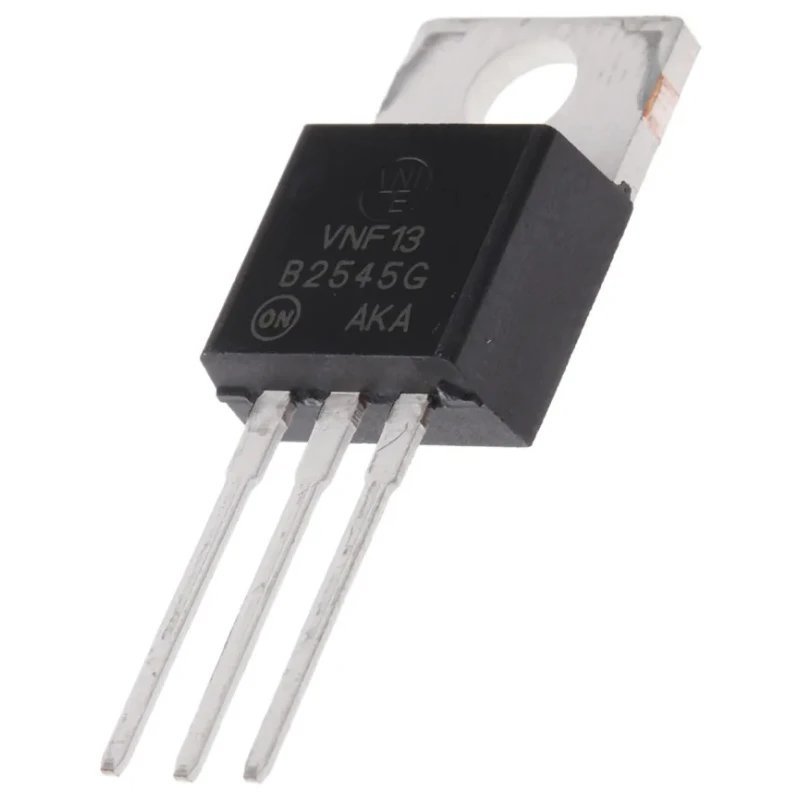

onsemi MBR2545CTG is a Schottky barrier switching diode in a 3-pin TO-220AB package, rated for 45 V peak reverse repetitive voltage and 30 A maximum continuous forward current. This device utilizes the Schottky barrier principle with a barrier metal to achieve optimal forward voltage drop and reverse current characteristics, making it ideal for low voltage, high-frequency rectification requirements.

The diode features a common cathode configuration and is constructed as a switching rectifier. It supports surge currents up to 150 A peak non-repetitive forward surge current and maintains operation across a wide temperature range from -65°C up to 175°C. The compact TO-220AB package measures 10.28 mm in length, 4.82 mm in width, and 9.28 mm in height and is epoxy moulded for enhanced mechanical stress protection and lightweight design of approximately 11.7 mg.

This diode is well suited for industrial, electronic, and power management applications including high frequency rectification, freewheeling diodes, and polarity protection in semiconductor devices and electronic circuits where compact size and weight are critical.

Maximum continuous forward current of 30 A ensures reliable high current operation. 45 V peak reverse repetitive voltage supports demanding voltage conditions. Low forward voltage of 0.67 V reduces conduction losses improving efficiency.

Wide operating temperature range from -65°C to 175°C for versatile environmental adaptation. Peak non-repetitive forward surge current capacity of 150 A protects against brief current spikes. Compact TO-220AB moulded package for easy mounting and automated assembly.

Designed for automated PCB assembly and high volume manufacturing.

onsemi's MBR2545CTG diode is a reliable solution for electronic components and power connectors requiring efficient and robust Schottky diode performance. Browse related products and find compatible components in the Semiconductor and Switching Diode category at EnvMart.

Explore more products in our Schottky Diodes & Rectifiers category.
