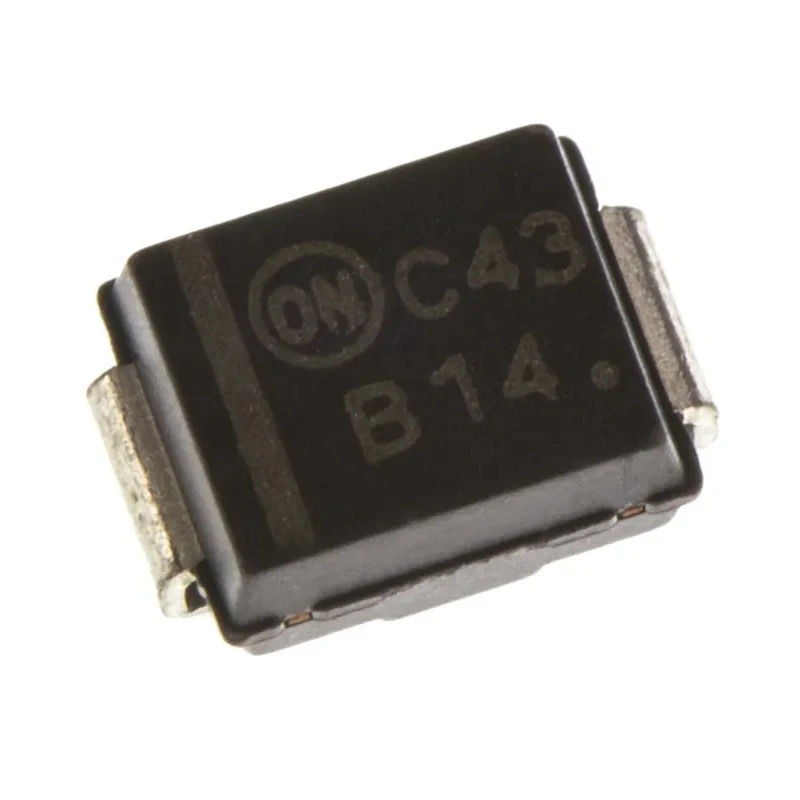

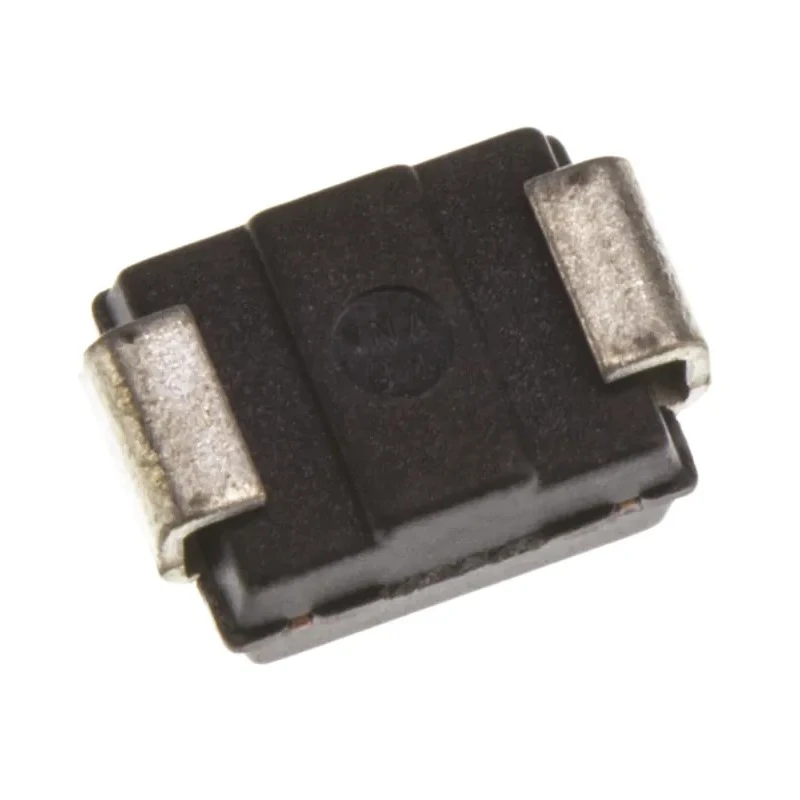

onsemi 40 V 1 A Schottky Diode 2-Pin Surface Mount DO-214AA MBRS140T3G
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.13mm |
| Length | 4.32mm |
| Model | MBRS140T3G |
| Width | 3.56mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 0.9V |
Key Features
- Designed for low voltage, high-frequency rectification applications.
- Compact DO-214AA package suitable for automated board assembly.
- Maximum forward voltage of 0.9 V ensuring efficient operation.
- Operating temperature range from -65°C to 125°C for reliable performance.
- AEC-Q101 automotive qualified for demanding automotive environments.
- Lightweight epoxy moulded case with 2.13 mm height and 4.32 mm length.
- Offers fast switching speed and low forward voltage drop for improved device efficiency.
- Peak non-repetitive forward surge current rating of 40 A.
Product Description
onsemi MBRS140T3G Schottky Diode 2-Pin DO-214AA is a surface mount power rectifier designed for high-frequency and low voltage applications. It employs the Schottky barrier principle to achieve optimal forward voltage drop and low reverse current, making it ideal for efficient power conversion and protection functions.
This diode supports a maximum continuous forward current of 1 A and a peak reverse repetitive voltage of 40 V, ensuring dependable performance in electronic circuits. The low forward voltage of 0.9 V minimizes power loss and heat generation.
The diode's compact DO-214AA package measures 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height, suitable for automated surface mount technology (SMT) assembly.
Operating temperature range from -65°C to 125°C allows stable operation across extreme conditions. It features a peak non-repetitive forward surge current of 40 A, protecting circuits during transient load conditions.
The product is automotive qualified per AEC-Q101 standard, ensuring compliance with rigorous automotive industry requirements. Designed for low voltage, high-frequency switching and rectification applications. Compact and lightweight epoxy moulded case suitable for automated assembly.
Reliable protection against reverse voltage and polarity errors. Lowers power losses with minimal forward voltage drop. Operates efficiently over a wide temperature range. Complies with automotive industry quality standards.
Provides surge current tolerance for transient conditions.
This Schottky diode is suited for use in power supplies, voltage clamping, freewheeling diodes in automotive electronics, solar inverters, and other commercial electronic equipment.
Explore EnvMart's entire selection of Schottky diodes and rectifiers to find high-quality components suitable for your industrial and commercial electronic applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 1 A.
This diode has a peak reverse repetitive voltage rating of 40 V.
The maximum forward voltage drop for this diode is 0.9 V.
The dimensions of the DO-214AA package are 4.32 mm in length, 3.56 mm in width, and 2.13 mm in height.
The operating temperature range is from -65°C to 125°C.
The peak non-repetitive forward surge current rating is 40 A.
Yes, this model is automotive qualified per AEC-Q101 standard.
This diode uses surface mount technology (SMT) for mounting.
This diode has a single diode configuration.
It is suitable for applications such as power supplies, voltage clamping, and freewheeling diodes in automotive electronics.
The diode features a lightweight epoxy moulded case.
The peak reverse current is rated at 1 mA.
