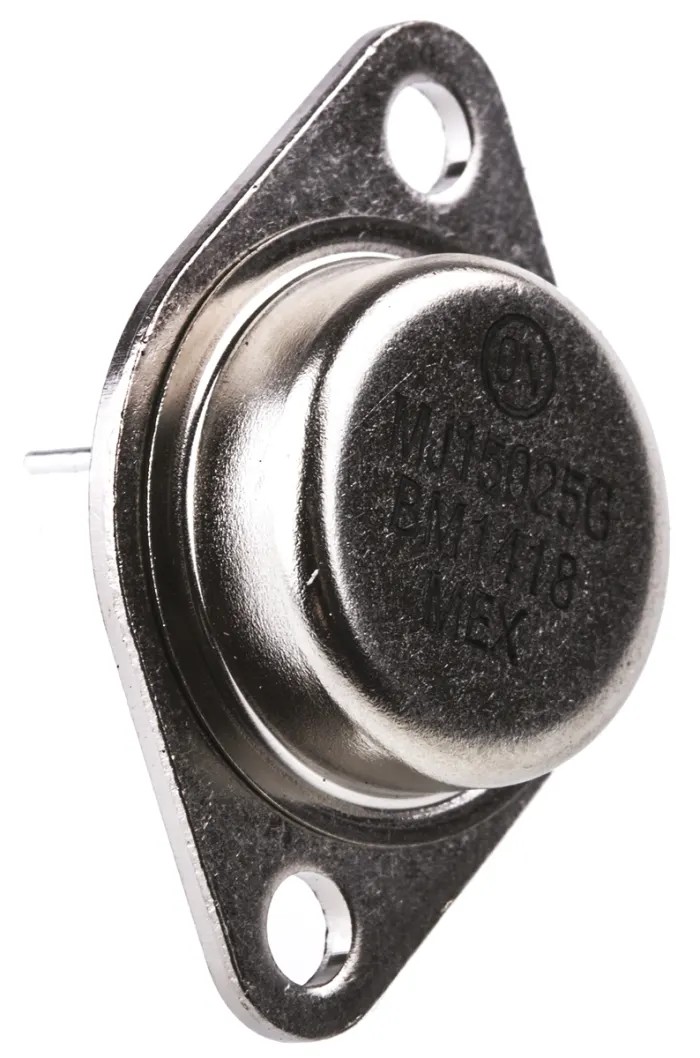

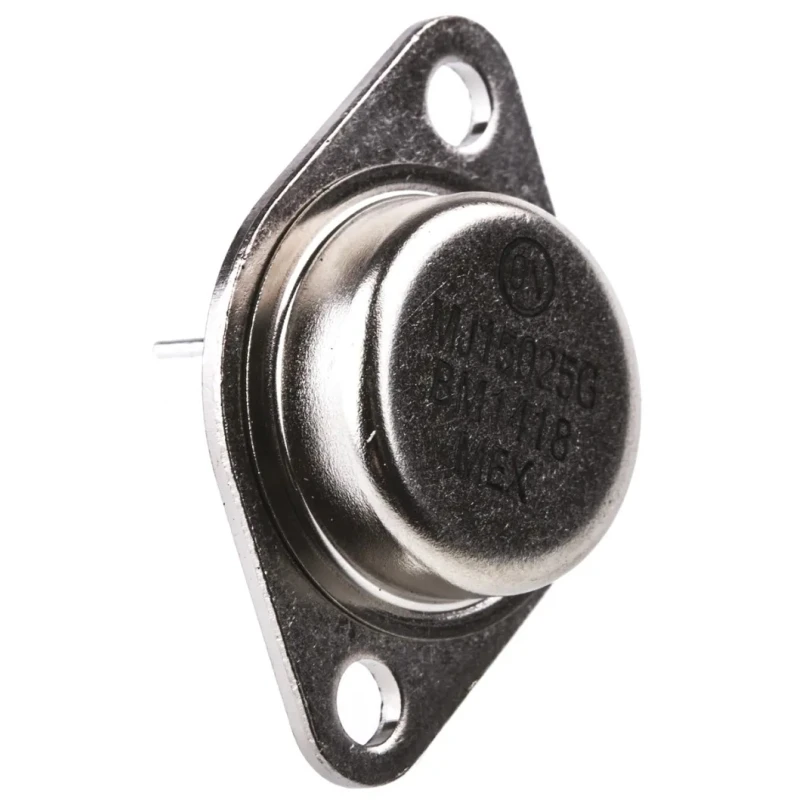

onsemi PNP Power Transistor 16A -250V TO-204 Package Through Hole MJ15025G

onsemi MJ15025G is a PNP power transistor designed for industrial electronic and power switching applications. The transistor supports a maximum DC collector current of 16 amperes and collector emitter voltage up to -250 volts, making it ideal for high power circuits.

This component comes in a TO-204 package, facilitating through-hole mount installation while providing efficient heat dissipation. It operates reliably across a robust temperature range from -65°C to 200°C, suitable for demanding industrial environments.

The transistor configuration is single PNP with a maximum power dissipation of 250 watts, enabling it to handle significant loads. Its collector base voltage capability of 400 volts and emitter base voltage of 5 volts ensure stable operation in varied conditions.

The MJ15025G transistor features a compact form factor with dimensions of 0.82 mm height, 26.67 mm width, and 39.37 mm length, fitting well into space-constrained circuit designs. Maximum DC collector current of 16 amperes ensures high current handling capability.

Collector emitter voltage rated at -250 volts for robust performance. TO-204 package allows reliable through-hole mounting and heat dissipation. Maximum power dissipation of 250 watts supports high power switching tasks.

Operates within a temperature range from -65°C to 200°C for industrial reliability. Low transition frequency of 4 MHz optimized for power transistor applications. Single transistor configuration with PNP polarity. Maximum collector base voltage of 400 volts for enhanced operation stability.

Compact dimensions with a height of 0.82 mm, width 26.67 mm, and length 39.37 mm. Compatible with bipolar transistor applications including industrial and electronic equipment.

This transistor is extensively used in industrial, laboratory, manufacturing, and electronic power supply applications requiring reliable high-current switching. Its rugged thermal and voltage specifications make it suitable for harsh environments and long service life.
