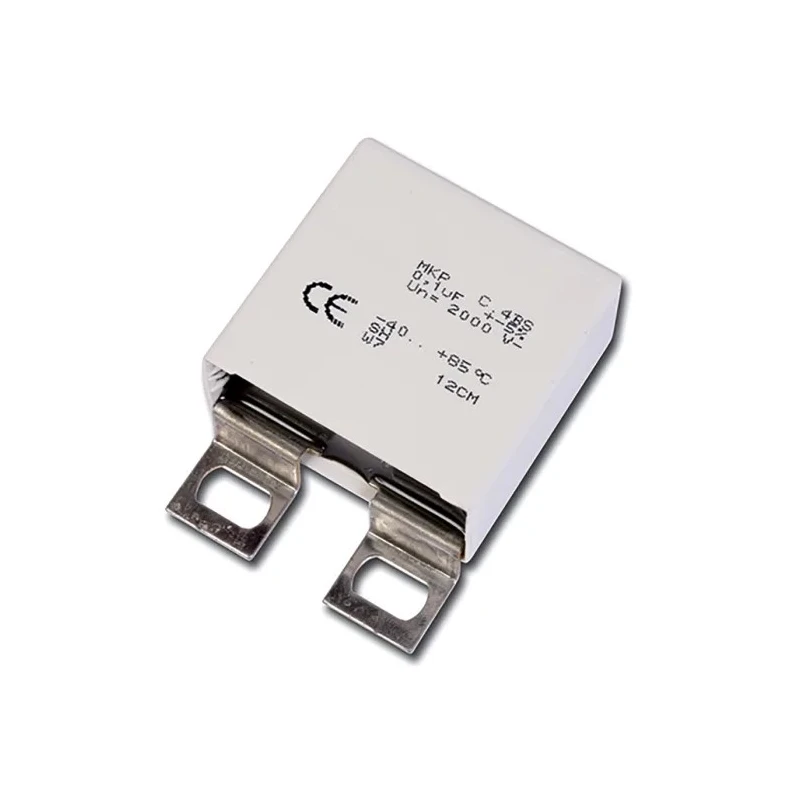

KEMET C4BS Film Capacitor 680nF ±5% 1kV DC 600V AC Panel Mount C4BS
Specifications
| Country of Origin | Italy |
|---|---|
| Brand | KEMET |
| Height | 20mm |
| Length | 41.5mm |
| Model | C4BS |
| Packaging | Bag |
| Width | 40mm |
| Mount Type | Panel Mount |
| Series | C4BS |
| Maximum Operating Temperature | 85°C |
| Tolerance | ±5 % |
| Capacitance | 680nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 0.0005% |
| Lead Length | 14mm |
| Standards/Approvals | EN 61071, IEC 61071, VDE 0560 |
| Rated AC Voltage | 600V ac |
| Rated DC Voltage | 1kV dc |
| Lead Pitch | 25.5mm |
| Equivalent Series Resistance ESR | 5.3mΩ |
Key Features
- Capacitance value of 680 nanofarads with ±5% tolerance ensures consistent performance.
- Rated for 1 kilovolt DC and 600 volts AC voltage operation.
- Panel mount construction with radial terminal type facilitates secure installation.
- Operating temperature range from -40°C to 85°C suitable for diverse environments.
- Self-healing film technology offers low losses and high ripple current capability.
- Complies with EN 61071, IEC 61071, and VDE 0560 standards.
- Compact dimensions of approximately 41.5 mm length, 40 mm width, and 20 mm height.
- Ideal for IGBT applications requiring high contact reliability and high frequency suitability.
Product Description
KEMET C4BS Film Capacitor with a capacitance of 680nF, tolerance of ±5%, and rated voltages of 1kV DC and 600V AC is a high-quality panel mount capacitor for industrial and electronic applications.
This film capacitor features robust panel mounting with radial terminals and a lead pitch of 25.5 mm, ensuring stable mechanical support and electrical connection. Its lead length is 14 mm, facilitating easy integration into printed circuit boards and systems.
Designed to operate reliably in harsh conditions, it supports a minimum operating temperature of -40°C and a maximum of 85°C. Its low equivalent series resistance (ESR) of 5.3 milliohms and an extremely low dissipation factor of 0.0005% improve efficiency and reduce power loss.
The capacitor incorporates self-healing technology with low losses and high ripple current handling, which ensures longevity and performance in demanding electronic circuits such as IGBT applications. High contact reliability and suitability for high frequency make it ideal for sophisticated power electronic devices.
Compliance with international standards EN 61071, IEC 61071, and VDE 0560 guarantees quality and safety. The compact dimensions of 41.5 x 40 x 20 mm (LxWxH) enable space-saving designs without compromising functionality.
Manufactured in Italy with premium materials, this capacitor is suited for a broad range of industrial, laboratory, and commercial electronics systems requiring stable capacitance and voltage ratings.
Capacitance value of 680 nanofarads with ±5% tolerance ensures consistent performance. Rated for 1 kilovolt DC and 600 volts AC voltage operation. Panel mount construction with radial terminal type facilitates secure installation.
Operating temperature range from -40°C to 85°C suitable for diverse environments. Self-healing film technology offers low losses and high ripple current capability. Complies with EN 61071, IEC 61071, and VDE 0560 standards.
Compact dimensions of approximately 41.5 mm length, 40 mm width, and 20 mm height. Ideal for IGBT applications requiring high contact reliability and high frequency suitability. Manufactured in Italy ensuring high-quality standards.
Explore more electronic components including Film Capacitors at EnvMart for your reliable industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 680 nanofarads (nF) with a tolerance of ±5%.
It is rated for 1 kilovolt (kV) DC and 600 volts (V) AC operation.
The operating temperature range is from -40°C to 85°C, making it suitable for diverse environments.
This model features a panel mount construction with radial terminals, facilitating secure installation.
The dimensions are approximately 41.5 mm in length, 40 mm in width, and 20 mm in height.
The equivalent series resistance (ESR) is 5.3 milliohms (mΩ).
The lead length is 14 mm, and the lead pitch is 25.5 mm.
It complies with EN 61071, IEC 61071, and VDE 0560 standards.
It incorporates self-healing film technology, which offers low losses and high ripple current capability.
This model is ideal for IGBT applications requiring high contact reliability and high frequency suitability.
The dissipation factor is 0.0005%.
It is manufactured in Italy, ensuring adherence to high-quality standards.
