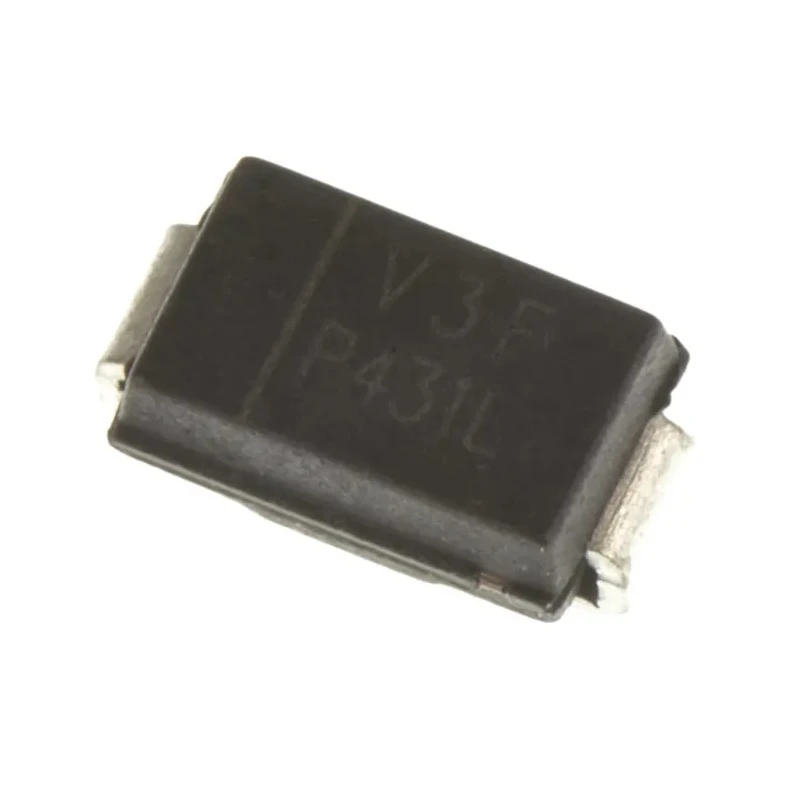

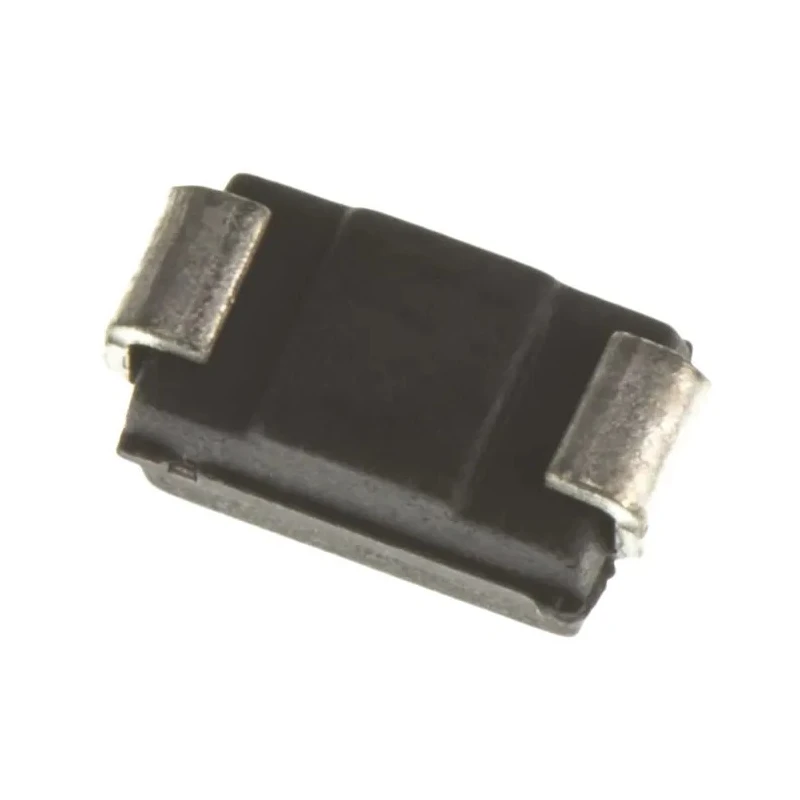

Vishay 40 V 2.1 A Schottky Diode Surface Mount DO-214AC 2-Pin VS-15MQ040-M3/5AT

Free Delivery in India | Lowest Global Shipping Charges

Vishay 40 V 2.1 A Schottky Diode Surface Mount DO-214AC 2-Pin VS-15MQ040-M3/5AT

Name: Vishay 40 V 2.1 A Schottky Diode Surface Mount DO-214AC 2-Pin VS-15MQ040-M3/5AT
Brand: Vishay
SKU: 196741
Price: 20.22 USD
Availability: InStock



Category Schottky Diodes & Rectifiers Brand Vishay Condition New

Specifications

Country of Origin	India
Diameter	13in
Brand	Vishay
Height	1.88mm
Length	4.6mm
Model	VS-15MQ040-M3/5AT
Width	2.9mm
Mount Type	Surface
Series	Schottky Q
Maximum Operating Temperature	150°C
Package Type	DO-214AC (SMA)
Minimum Operating Temperature	-40°C
Standards/Approvals	MSL Level 1 per J-STD-020, Lead (Pb) Free, Halogen Free, RoHS
Pin Count	2
Maximum Continuous Forward Current If	2.1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	330A
Maximum Forward Voltage Vf	490mV
Vishay 40V 2.1A, Schottky Diode, 2-Pin DO-214AC 15MQ040NBrand	Vishay

Key Features

This diode offers a maximum continuous forward current of 2.1 amperes.
It has a peak reverse repetitive voltage rating of 40 volts.
Features a low maximum forward voltage drop of 490 millivolts.
Supports a peak non-repetitive forward surge current of 330 amperes.
Offers a wide operating temperature range from -40°C to 150°C.
Compact 2-pin DO-214AC (SMA) surface mount package for space saving design.
Exhibits extremely short reverse recovery time for fast switching performance.
Lead (Pb) free, halogen free and RoHS compliant meeting MSL Level 1 standards.

Product Description

The Vishay VS-15MQ040-M3/5AT Schottky diode is a high-performance semiconductor device designed for demanding electronic applications. It features a 40 V peak reverse repetitive voltage and a maximum continuous forward current of 2.1 A, making it suitable for efficient power rectification and switching tasks.

Encased in a compact DO-214AC (SMA) 2-pin surface mount package, the diode offers low forward voltage drop (490 mV typical) and a very fast switching action due to its minimal reverse recovery time. These qualities minimize power losses and improve overall device efficiency in circuits.

Its robust construction allows operation across a broad temperature range of -40°C to 150°C, including compliance with automotive and industrial temperature standards. The diode also supports high surge currents up to 330 A, providing reliability under transient load conditions.

The device adheres to environmental and safety standards such as MSL Level 1 per J-STD-020, is lead (Pb) free, halogen free, and RoHS compliant, ensuring compatibility with modern ecological manufacturing requirements.

Common applications include power rectification in power supplies, freewheeling diodes in motor drives, and high-frequency switching devices in various industrial and automotive electronic circuits.

This diode offers a maximum continuous forward current of 2.1 amperes. It has a peak reverse repetitive voltage rating of 40 volts. Features a low maximum forward voltage drop of 490 millivolts. Supports a peak non-repetitive forward surge current of 330 amperes.

Offers a wide operating temperature range from -40°C to 150°C. Compact 2-pin DO-214AC (SMA) surface mount package for space saving design. Exhibits extremely short reverse recovery time for fast switching performance. Lead (Pb) free, halogen free and RoHS compliant meeting MSL Level 1 standards.

Suitable for industrial and automotive power electronics applications. Reliable diode configuration ensuring high performance in discrete semiconductor circuits. Explore additional Vishay semiconductor components on EnvMart for comprehensive power and switching device solutions.

Explore more products in our Schottky Diodes & Rectifiers category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The maximum continuous forward current of this diode is 2.1 amperes.

The maximum forward voltage drop is 490 millivolts.

This model supports a peak non-repetitive forward surge current of 330 amperes.

The diode operates within a temperature range of -40°C to 150°C.

It comes in a compact 2-pin DO-214AC (SMA) surface mount package.

The dimensions are 4.6mm in length, 2.9mm in width, and 1.88mm in height.

It complies with MSL Level 1 per J-STD-020, is lead (Pb) free, halogen free, and RoHS compliant.

This diode is a Schottky rectifier, known for its low forward voltage drop and fast switching capabilities.

It is suitable for power rectification in power supplies, freewheeling diodes in motor drives, and high-frequency switching devices in various electronic circuits.

This diode has 2 pins.
