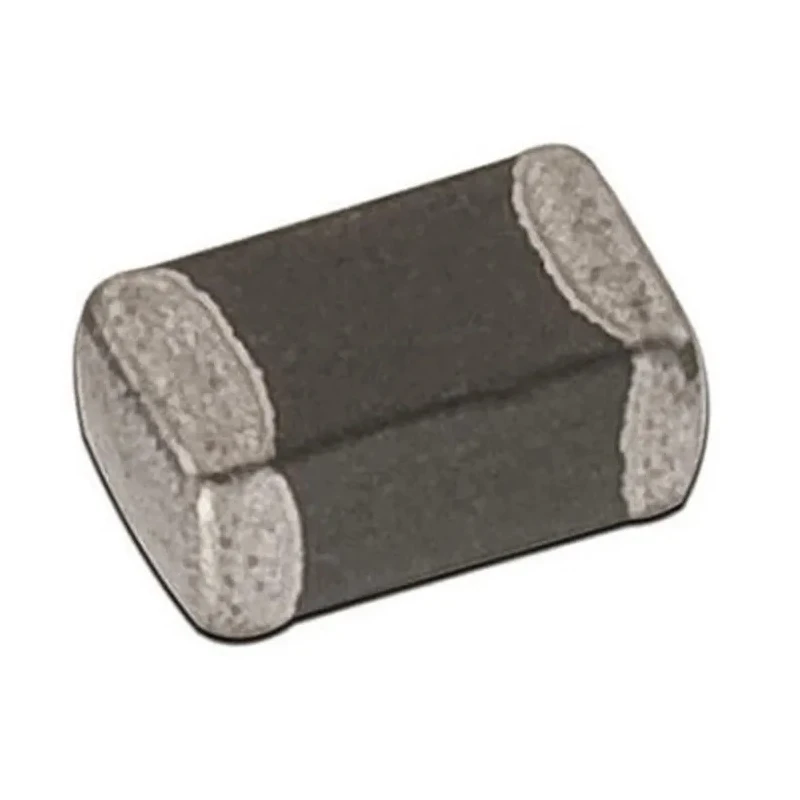

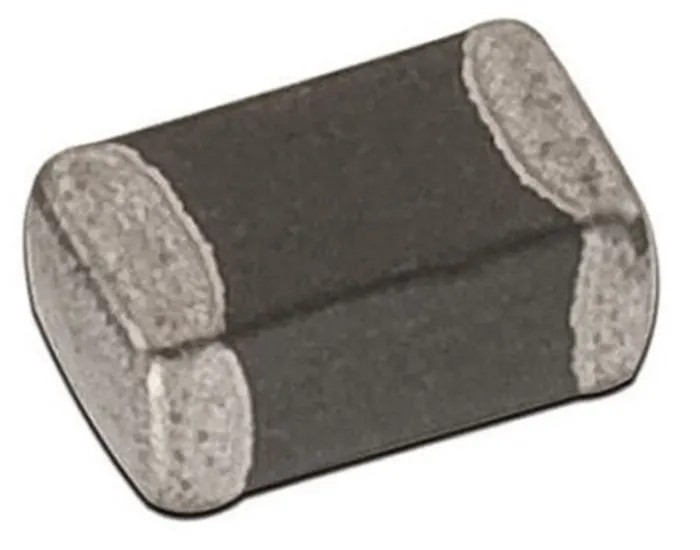

Wurth Elektronik 0805 Shielded Multilayer Surface Mount Inductor WE-PMI Series 10 μH ±20 % 650mA 74479777310

Wurth Elektronik 74479777310 0805 Shielded Multilayer Surface Mount Inductor WE-PMI Series offers a 10 μH inductance with a tolerance of ±20 %. Designed with a ferrite core and multilayer construction, this surface mount inductor supports maximum DC current up to 650mA, making it ideal for various electronic applications requiring compact size and efficiency.

The 0805 package size (2mm length x 1.25mm height x 1.25mm depth) allows for space-saving circuit board designs. Its shielded construction effectively minimizes electromagnetic interference and cross talk. The inductor operates reliably within the temperature range of -40°C to 125°C and has a maximum DC resistance of 500mΩ, ensuring performance stability.

This component is moulded and designed for reflow soldering applications common in modern manufacturing environments. It is fully compliant with REACH and RoHS environmental directives promoting safety and sustainability.

Typical industrial uses include integration in DC-DC converters, especially at high switching frequencies, and portable electronic devices such as PDAs and digital cameras where precise inductance and compact design are critical.

Compact 0805 package with surface mount termination. Ferrite core material provides magnetic stability. Shielded design reduces cross talk and EMI. Multilayer construction enhances inductance range and quality factor. Wide temperature operating range from -40°C to 125°C.

Suitable for reflow soldering assembly techniques. Compliant with international environmental standards REACH and RoHS. High current capability up to 650mA supports demanding electronic circuits. Explore the extensive range of inductors available at EnvMart and choose from certified Wurth Elektronik products for your electronic component needs.
