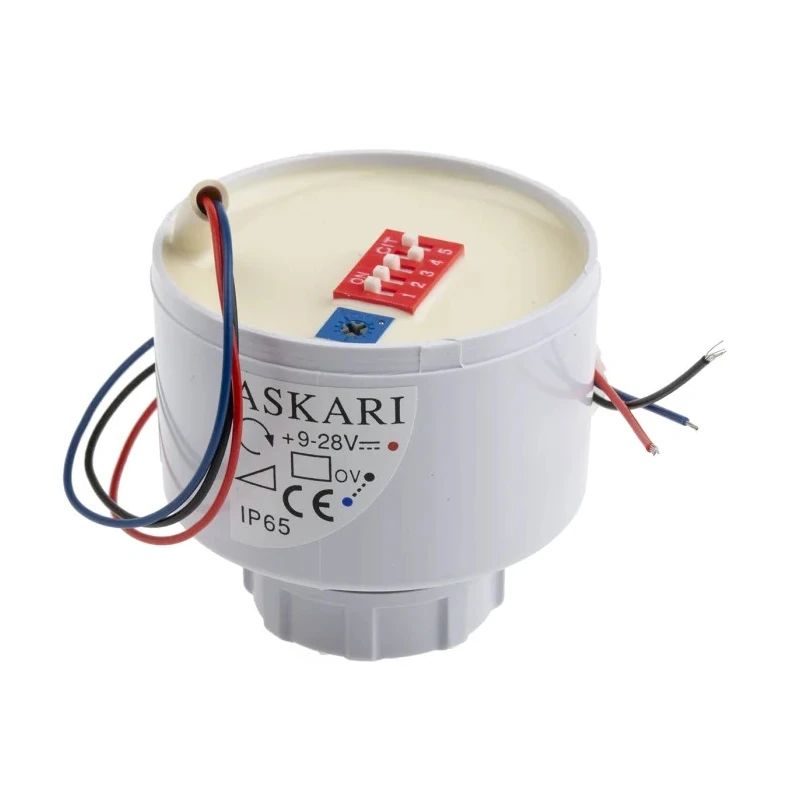

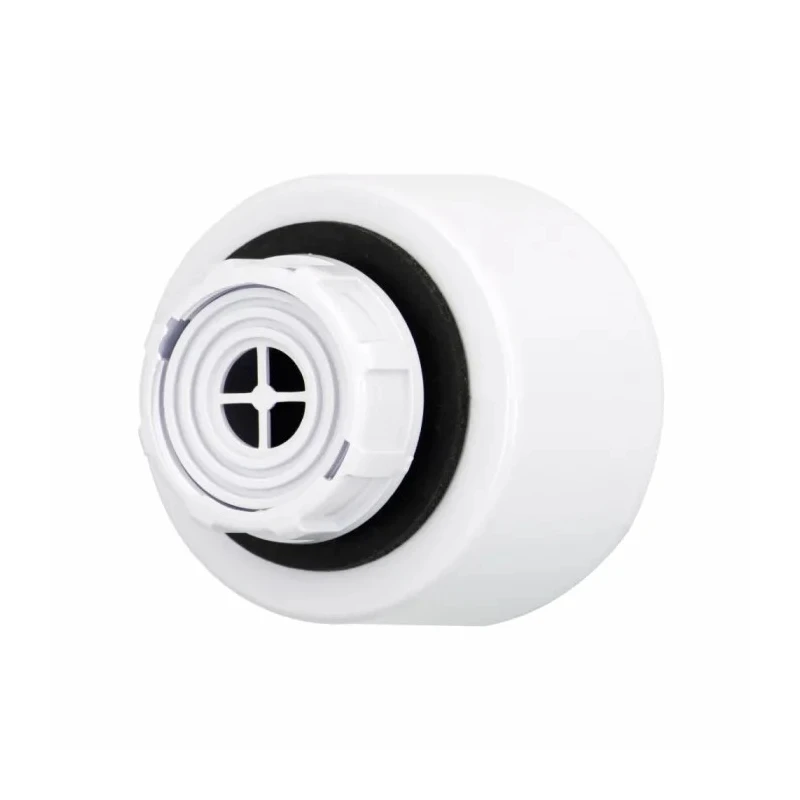

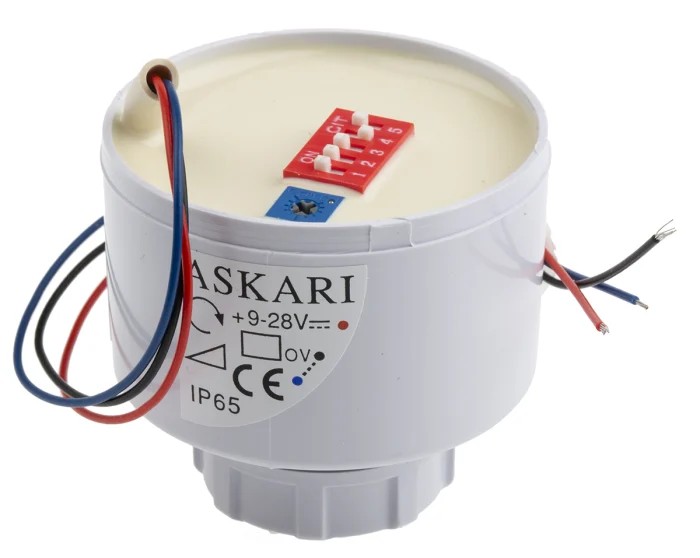

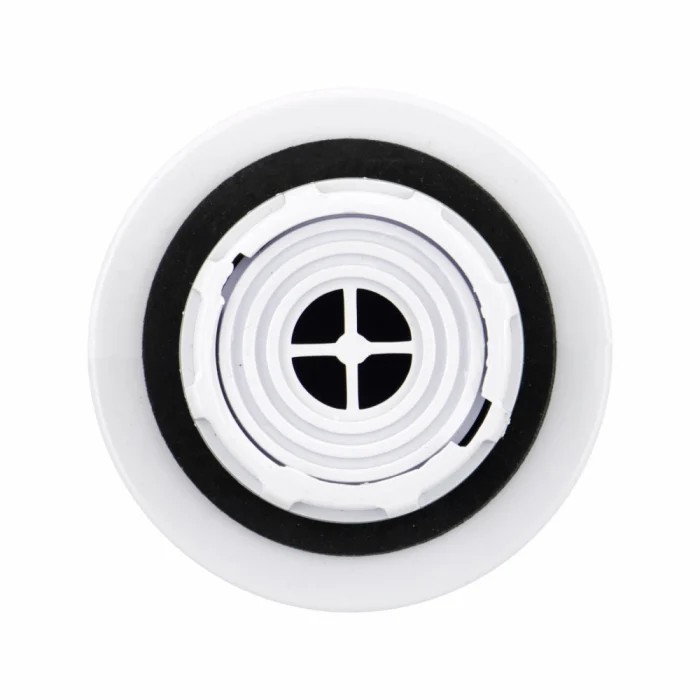

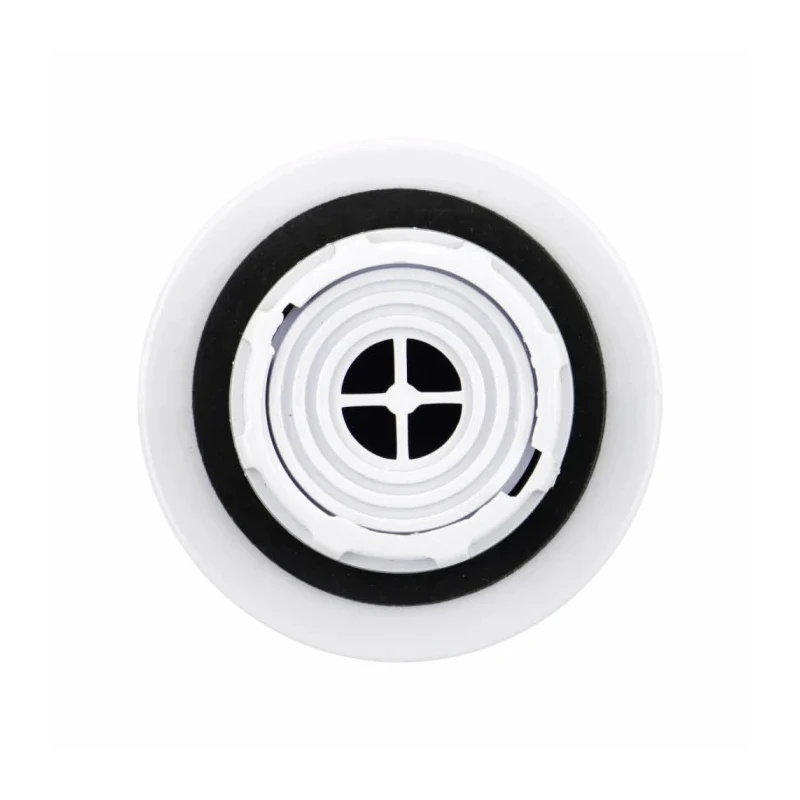

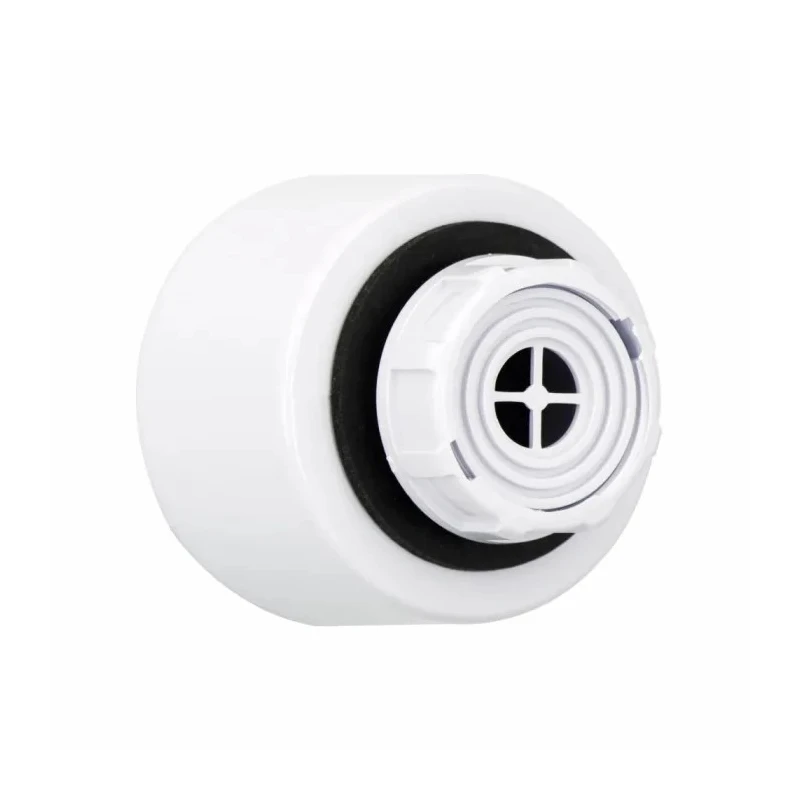

Eaton Electronic Sounder Panel 28V DC, IP65 Ingress Protection, 92 dB Sound Level, 32 Tones, Continuous Tone, ABS Housing

Free Delivery in India | Lowest Global Shipping Charges

Eaton Electronic Sounder Panel 28V DC, IP65 Ingress Protection, 92 dB Sound Level, 32 Tones, Continuous Tone, ABS Housing

Name: Eaton Electronic Sounder Panel 28V DC, IP65 Ingress Protection, 92 dB Sound Level, 32 Tones, Continuous Tone, ABS Housing
Brand: Eaton
SKU: 172823
Price: 33.9 USD
Availability: InStock



Category Electronic Sounders Brand Eaton Condition New

Specifications

Country of Origin	United Kingdom
Brand	Eaton
Colour	White
Model	IP65
IP Rating	IP65
Mount Type	Panel
Housing Material	ABS
Series	Fulleon Askari Panel
Maximum Operating Temperature	70°C
Current Type	DC
Standards/Approvals	CE Certified
Maximum Supply Voltage	28V dc
Tone Type	Continuous
Minimum Sound Level	92dB
Sound Level at 1m	92dB
Maximum Sound Level	100dB
Number of Tones	32
Base Length	50mm
Base Width	45mm
Eaton Electronic Sounder Flange 28V dc, IP65 92 dB @ 1m, DC, 32-ToneBrand	Eaton

Key Features

Operates on 28 volts DC suitable for control panel installations.
Robust ABS housing ensures resistance to chemicals and corrosives.
IP65 ingress protection offers full dust protection and water jet resistance.
Compact panel mount design with single nut fixing for easy installation.
Volume control and tone select switch for customizable alerts.
Continuous tone output supports effective hazard signaling.
Suitable for industrial, lighting, and security applications.
CE certified with operation up to 70 degrees Celsius.

Product Description

Eaton 560001RSCO-0020 Electronic Sounder Panel is a high-performance audible signaling device designed for industrial and commercial applications where clear and customizable alarms are necessary. It operates at 28 volts DC and delivers a minimum sound level of 92 dB at 1 meter, reaching up to 100 dB maximum volume with 32 selectable tones for diverse alert signals.

The sounder panel features a robust ABS housing, providing resistance against corrosive agents and physical impacts. Its IP65 rating ensures complete protection from dust ingress and resistance to low-pressure water jets, making it ideal for both indoor and outdoor installation in harsh environments.

Installation is simple with a single nut fixing system, enabling quick mounting on panels or equipment housings. The device is equipped with tone select and volume control switches, allowing users to tailor the audible alerts to their specific safety and operational requirements. The continuous tone type supports effective signaling, ensuring the sounder can alert personnel promptly in emergency situations.

This sounder panel is widely used in industrial automation, lighting, and security systems, helping provide safety signals that comply with CE standards. It is engineered to function efficiently in temperatures ranging between -25 °C to +70 °C.

Operates at 28 V DC power supply. IP65 rated for dust and water resistance. 32 tone options for diverse alert signaling. High sound output with a minimum of 92 dB at 1 meter. Robust ABS material housing for durability. Panel mount with quick single nut fixing.

Tone select and volume control switches. Suitable for harsh industrial environments.

This Eaton electronic sounder brings enhanced safety and reliability to automation and control systems. Browse additional Eaton industrial automation products in the Electronics & Electricals category at EnvMart.
