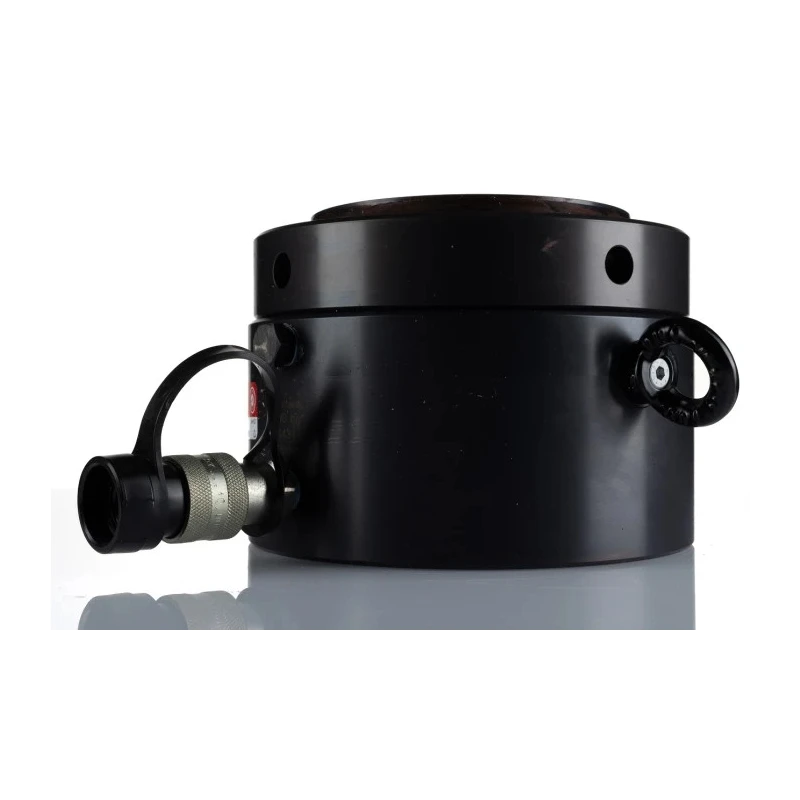

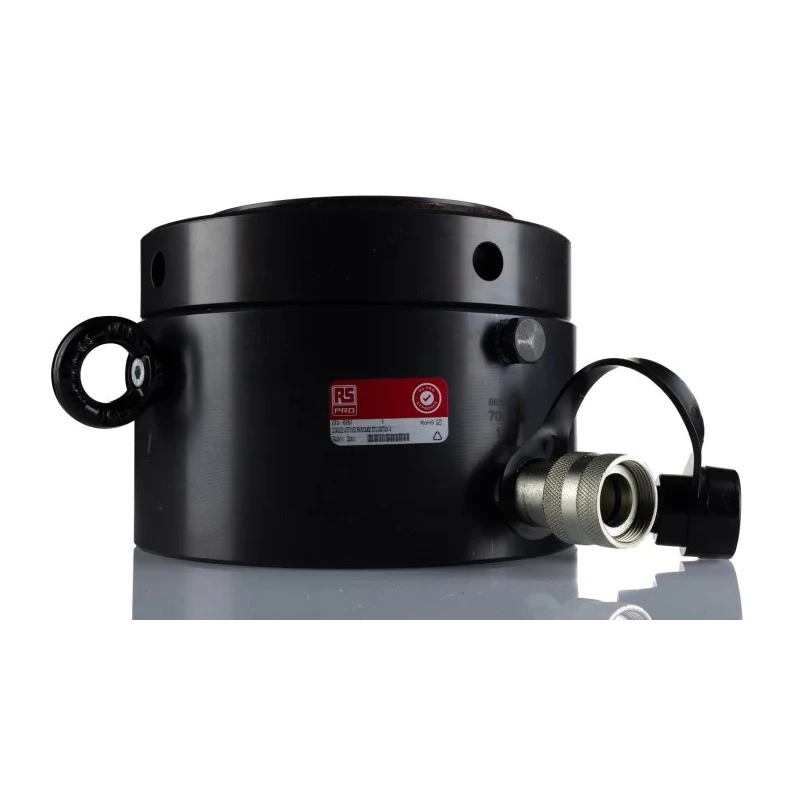

RS PRO Portable General Purpose Hydraulic Cylinder Single Acting 144 Ton 45 mm Stroke 700 Bar 235-8261
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 700 bar |
| Model | 235-8261 |
| Gross Weight | 39kg |
| Outside diameter | 205mm |
| Oil Capacity | 905cm³ |
| Stroke Length | 45mm |
| Cylinder Capacity | 144t |
| Action Type | Single Acting |
| Standards/Approvals | UKCA, CE |
| Closed Height | 148mm |
| Extended Height | 193mm |
| Cylinder Effective Area | 201.1cm² |
| RS PRO Single, Portable Low Height Hydraulic Cylinder, 100t, 150mm strokeBrand | RS PRO |
Key Features
- Single acting hydraulic cylinder for powerful lifting and pushing operations.
- Maximum capacity of 144 tons supporting heavy-duty industrial use.
- Compact closed height of 148 mm and extended height of 193 mm for confined spaces.
- 45 mm stroke length suitable for many hydraulic applications.
- Steel construction with corrosion and wear resistance for durability.
- Oil capacity of 905 cm³ and maximum operating pressure of 700 bar.
- Integrated tilting head and load return locking nut for enhanced safety.
- Includes one female quick coupler for easy hydraulic connection.
Product Description
RS PRO 235-8261 Portable General Purpose Hydraulic Cylinder is a robust single acting hydraulic device built for demanding operations in industrial applications. With a substantial 144 ton capacity and a stroke length of 45 mm, it delivers exceptional force and reliability in scenarios requiring powerful lifting, tensioning, testing, fixture clamping, and machine movement. Its compact form makes it ideal for confined spaces and low profile applications.
Single acting operation, offering directional force with oil-driven movement powered by 700 bar hydraulic systems. Closed height of 148 mm and extended height of 193 mm provide versatility for machine movement and loads held for long periods.
The durable steel body ensures resistance to corrosion and wear, contributing to extended service life in harsh environments. Integrated tilting head improves lateral load behaviour, reducing risks during off-axis loading.
Load return locking nut tested to withstand overloads, supporting secure maintenance operations. Includes one female quick coupler for straightforward hydraulic circuit integration. Handles and lifting eyes simplify mobile deployment across facility sites and workshops.
The cylinder's 905 cm³ oil capacity accommodates rapid actuation and stable force. The effective cylinder area of 201.1 cm² enhances load distribution, and the 160 mm bore and plunger Tr 160 x 6 mm dimensions underline its strength. A corrosion-resistant saddle and 38 mm lock nut height support safe load holding.
Industrial sectors including construction, manufacturing, heavy machinery maintenance, load testing, and fixture clamping benefit from this cylinder's reliability and performance. Extra flat profile and optimized lateral stability make it suitable for machine movement in confined spaces.
Product applications span tensioning, pulling, load holding, and assembly in hydraulic systems. Efficient performance is assured by RS PRO's rigorous quality standards. Single acting hydraulic cylinder suitable for tensioning, load holding, testing, and lifting.
High capacity and pressure allow diverse use in industrial maintenance and manufacturing. Corrosion and wear resistant steel for reliable operation in harsh conditions. Integrated safety features including locking nut and limit switch improve operational security.
Portable design with handles and lifting eyes enhances convenience and flexibility for various sites.
This RS PRO hydraulic cylinder is ideal for industrial users requiring robust force, safety, and easy portability. Explore the full RS PRO hydraulic tools range and related cylinders in the Hydraulic Cylinder category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum lifting capacity of this hydraulic cylinder is 144 tons.
The stroke length of this model is 45 mm.
It operates at a maximum pressure of 700 bar.
The closed height is 148 mm and the extended height is 193 mm.
The oil capacity is 905 cm³.
It includes an integrated tilting head and a load return locking nut for enhanced safety during operations.
The effective cylinder area is 201.1 cm².
It features a steel construction that is resistant to corrosion and wear.
It meets UKCA and CE standards.
The outside diameter is 205 mm.
The gross weight of this unit is 39 kg.
It is suitable for tensioning, load holding, testing, and lifting in various industrial applications.
