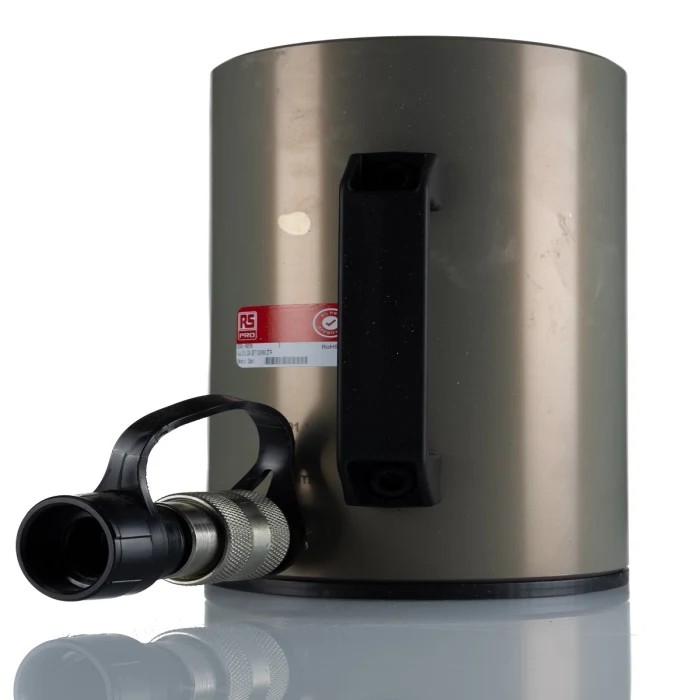

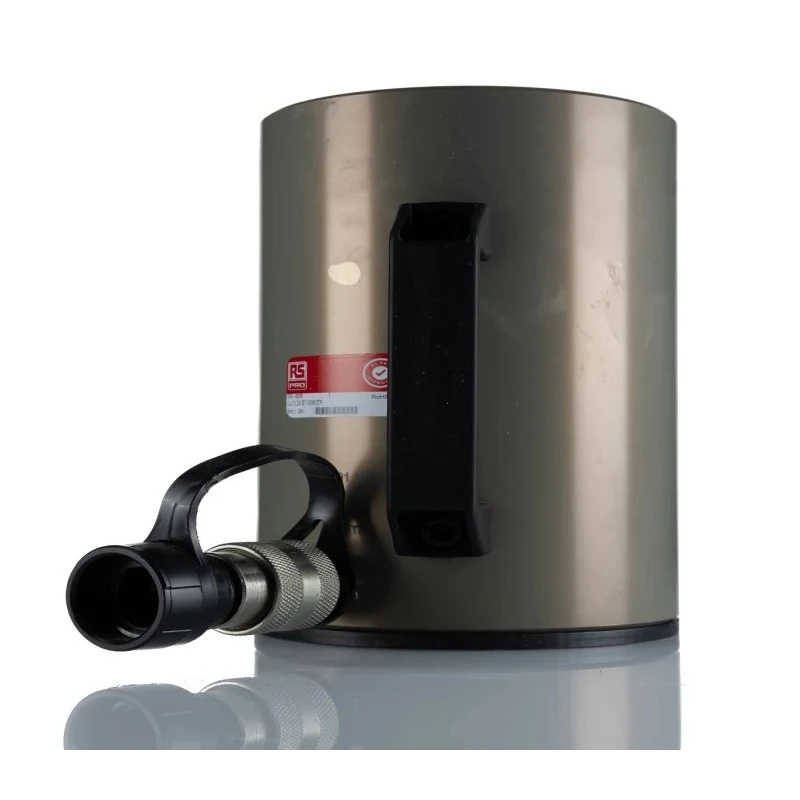

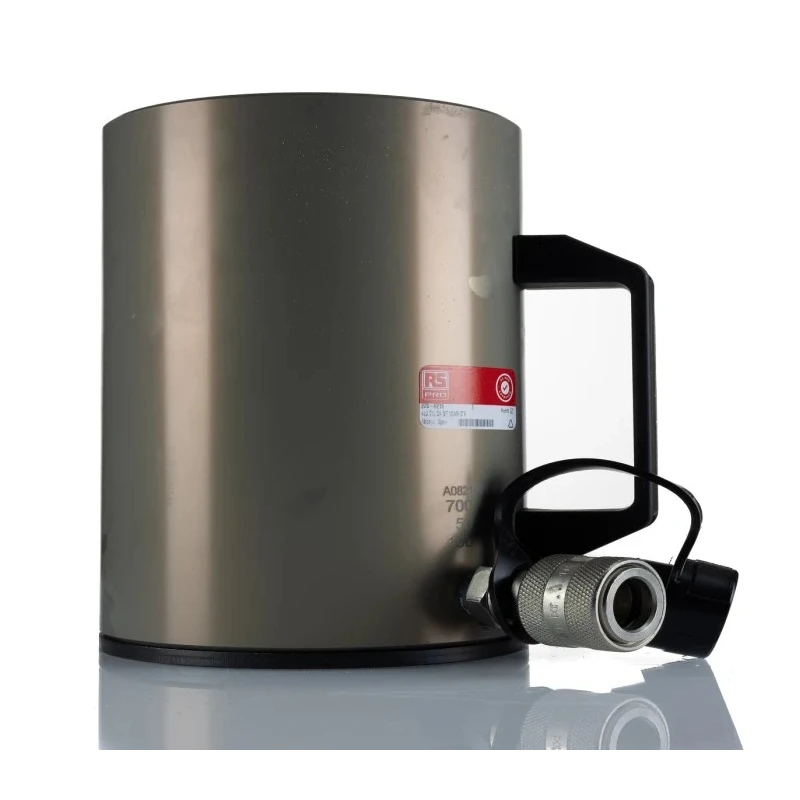

RS PRO Portable General Purpose Hydraulic Cylinder Single Acting 50 Ton Capacity 100 mm Stroke 700 bar 235-8218
Specifications
| Country of Origin | Spain |
|---|---|
| Brand | RS PRO |
| Maximum Operating Pressure | 700 bar |
| Model | 235-8218 |
| Gross Weight | 9.5kg |
| Outside diameter | 135mm |
| Oil Capacity | 709cm³ |
| Stroke Length | 100mm |
| Cylinder Capacity | 50t |
| Action Type | Single Acting |
| Standards/Approvals | CE, UKCA |
| Closed Height | 230mm |
| Extended Height | 330mm |
| Cylinder Effective Area | 71cm² |
Key Features
- Single acting hydraulic cylinder with 50-ton capacity for versatile industrial use.
- Made from hard anodized aluminium for lightweight and corrosion resistance.
- Stroke length of 100 mm and closed height of 230 mm suitable for various applications.
- Includes one female quick coupler and mounts to a steel base plate for secure operation.
- Maximum operating pressure rated at 700 bar to handle demanding hydraulic tasks.
- Effective cylinder area of 71 cm² and oil capacity of 709 cm³ for reliable performance.
- Outside diameter of 135 mm and extended height of 330 mm for compact portability.
- Weighs 9.5 kg, approximately 40% lighter than steel equivalents for easy handling.
Product Description
RS PRO 235-8218 Portable General Purpose Hydraulic Cylinder is a single acting cylinder designed for industrial, mechanical, and fluid power applications. It features a 50-ton capacity and 100 mm stroke length, making it ideal for tensioning, lifting, pulling, and testing tasks. Constructed from hard anodized aluminium, this cylinder is lightweight and durable, weighing only 9.5 kg and offering 40% weight reduction compared to steel cylinders.
The cylinder has a maximum operating pressure of 700 bar, an effective piston area of 71 cm², and an oil capacity of 709 cm³, ensuring efficient hydraulic operation. Its compact dimensions include a closed height of 230 mm, extended height of 330 mm, and an outside diameter of 135 mm, with a plunger diameter measuring 80 mm.
This model includes one female quick coupler for easy hydraulic connections and is mounted on a steel base plate for stability during use. It features a standard plain saddle and base hole thread of M6 with a 19 mm depth for secure attachment. This hydraulic cylinder is CE and UKCA approved, reflecting compliance with industry standards.
Designed for portability and safety, the cylinder includes handles for transporting and safe handling. Its applications span general industrial use cases such as construction, manufacturing, and maintenance sectors where reliable hydraulic force is needed.
Single acting design with 50-t ton capacity for heavy-duty hydraulic tasks. Lightweight aluminium construction enables easier transport and handling. High maximum pressure rating at 700 bar supports various industrial environments.
Includes female quick coupler for efficient hydraulic system integration. Compact dimensions cater to versatile installation requirements. Suitable for tensioning, pulling, lifting, and testing applications. CE and UKCA certifications ensure compliance to international safety standards.
Robust steel base plate mounting for operational stability.
This RS PRO hydraulic cylinder is an essential tool for industries requiring reliable, portable force application. Browse the Hydraulic Cylinder category at EnvMart for a wide range of compatible hydraulic tools and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic cylinder is 700 bar, making it suitable for demanding hydraulic tasks.
This model has a capacity of 50 tons and a stroke length of 100 mm, ideal for various lifting and pulling applications.
When closed, the cylinder has a height of 230 mm, and when extended, it reaches a height of 330 mm.
The effective piston area of this hydraulic cylinder is 71 cm², which contributes to its lifting capability.
It is constructed from hard anodized aluminium, which provides lightweight and corrosion resistance properties.
The oil capacity of this hydraulic cylinder is 709 cm³, allowing for efficient hydraulic operation.
Yes, it includes one female quick coupler for easy hydraulic connections and is mounted on a steel base plate for stability during use.
This hydraulic cylinder weighs 9.5 kg, making it approximately 40% lighter than steel equivalents for easier handling.
This model is CE and UKCA approved, ensuring compliance with relevant industry standards.
It is suitable for various applications such as tensioning, lifting, pulling, and testing tasks in industrial environments.
The outside diameter of this hydraulic cylinder is 135 mm, which is designed for compact portability.
This hydraulic cylinder employs a single acting action type, which is typical for many industrial applications.
