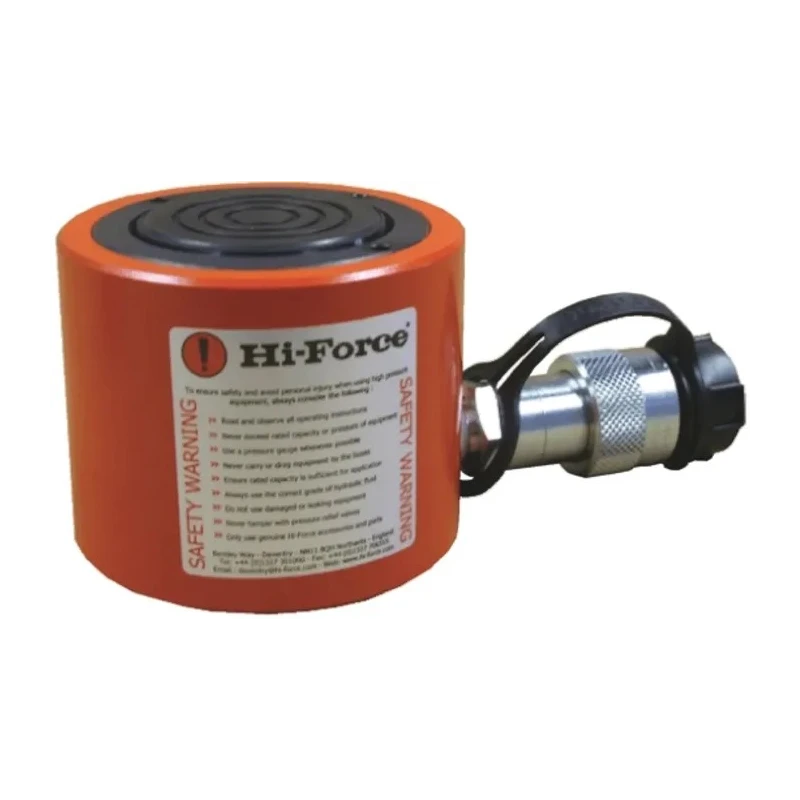

Hi-Force Portable Low Height Hydraulic Cylinder, Single Acting, 50 Ton, 60 mm Stroke, HLS502
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Brand | Hi-Force |
| Working Pressure | 700 bar |
| Maximum Operating Pressure | 10000 psi |
| Model | HLS502 |
| Gross Weight | 10.4kg |
| Outside diameter | 127mm |
| Oil Capacity | 428cm³ |
| Stroke Length | 60mm |
| Cylinder Capacity | 50t |
| Action Type | Single Acting |
| Closed Height | 126mm |
| Extended Height | 186mm |
| Cylinder Effective Area | 71.3cm² |
Key Features
- Single acting hydraulic cylinder with 50 ton capacity.
- Low profile design suitable for restricted height applications.
- 60 mm stroke length enables efficient lifting and pushing operations.
- Manufactured from high strength alloy steel for durability.
- Chrome-plated piston rod protects against corrosion and wear.
- Maximum operating pressure is 10,000 psi.
- Non-metallic bearings and stop ring provide excellent side load resistance.
- Pressure-activated seals enhance functionality and service life.
Product Description
The Hi-Force HLS502 portable low height hydraulic cylinder is engineered for demanding industrial, construction, and maintenance environments where powerful lifting and pushing action is required within restricted spaces. This robust single acting cylinder offers a 50 ton load capacity, making it suitable for a variety of heavy-duty applications.
Featuring a compact, low profile design, this cylinder is specifically designed for situations where reduced height is critical, such as beneath machinery, structural supports, or large assemblies. The stroke length of 60 mm allows for precise lifting or movement, with a closed height of just 126 mm and an extended height of 186 mm.
Single acting operation with heavy duty return spring for reliable piston retraction. High strength alloy steel construction ensures superior durability and performance even under maximum loads. Piston rods are chrome plated to prevent corrosion, with non-metallic bearings and a steel stop ring for minimal friction and exceptional side load resistance.
Pressure-activated anti-extrusion seals maximize working life, while the quick release coupler enables rapid, secure hose connections. Each cylinder is individually tested to 125% of its working pressure (10,000 psi), providing outstanding safety assurance.
The cylinder's effective area measures 71.3 cm², with an oil capacity of 428 cm³ for efficient operation.
Industrial uses include heavy machinery maintenance, structural lifting and alignment, industrial leveling, bridge repairs, shipbuilding, manufacturing plants, and onsite construction projects.
All port connections are 3/8 in. NPT, compatible with most hydraulic systems and Hi-Force accessories. The cylinder's robust 10.4 kg weight aids stability while retaining portability for field applications.
Choose Hi-Force Hydraulic Cylinders for unparalleled reliability and performance in your lifting and force application needs. Explore more Hi-Force hydraulic solutions and industrial tool categories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Hi-Force HLS502 hydraulic cylinder has a lifting capacity of 50 tons.
This model features a stroke length of 60 mm, allowing for efficient lifting and pushing operations.
The maximum operating pressure for the Hi-Force HLS502 is 10,000 psi, equivalent to 700 bar.
The closed height of this hydraulic cylinder is 126 mm, and the extended height is 186 mm.
The oil capacity of the Hi-Force HLS502 is 428 cm³, facilitating efficient operation.
This hydraulic cylinder operates as a single acting unit, featuring a heavy-duty return spring for reliable piston retraction.
The cylinder is manufactured from high strength alloy steel, and the piston rod is chrome-plated to protect against corrosion and wear.
The effective area of this hydraulic cylinder measures 71.3 cm².
All port connections on the Hi-Force HLS502 are 3/8 in. NPT, making it compatible with most hydraulic systems and accessories.
The gross weight of the Hi-Force HLS502 is 10.4 kg, which aids stability while maintaining portability.
The Hi-Force HLS502 is manufactured in the United Kingdom.
This hydraulic cylinder is suitable for heavy machinery maintenance, structural lifting and alignment, industrial leveling, and other heavy-duty applications.
