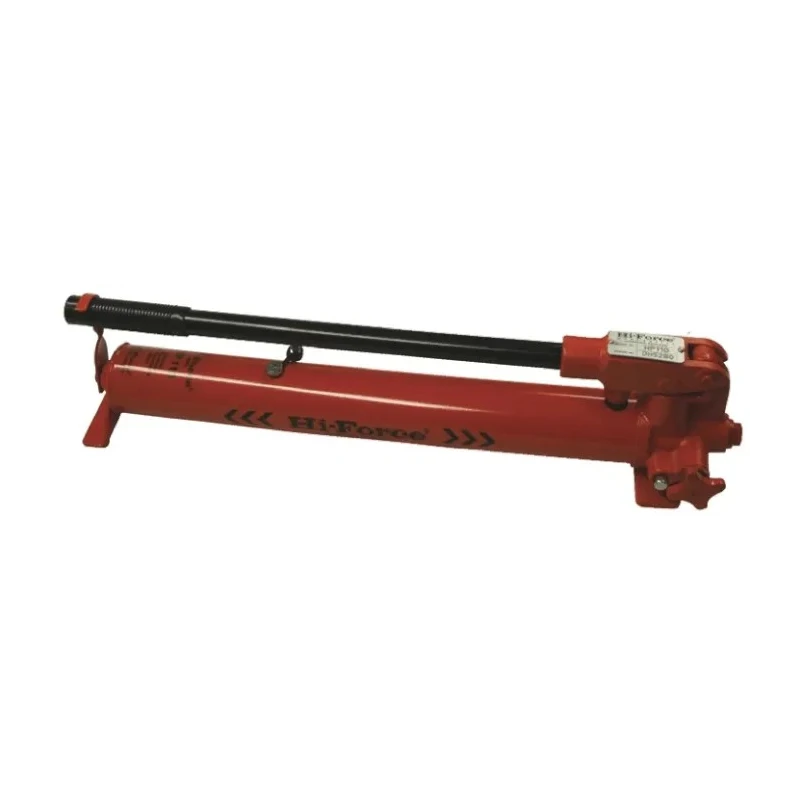

Hi-Force Hydraulic Hand Pump 700 bar, 1 L Usable Oil Capacity, 250 mm Cylinder Stroke HP110

Hi-Force HP110 Hydraulic Hand Pump is a robust hand-operated piston pump designed for industrial, mechanical, and fluid power applications requiring a maximum operating pressure of 700 bar. The pump utilizes a 1 L pre-filled oil reservoir, a 250 mm cylinder stroke, and a displacement per stroke of 2.4 cm³, delivering reliable hydraulic power.

Constructed with an aluminium pump material and featuring a rubber handle for ergonomic operation, the pump combines durability with user comfort. Its compact dimensions of 560 mm length, 145 mm width, and 135 mm height allow easy installation within limited spaces. The maximum handle effort required is 50 kg, optimized for efficient manual operation.

The pump includes a 3/8 to 18 in port size with Type A port fittings, enabling compatibility with a wide range of hydraulic cylinders to operate one or more cylinders depending on oil capacities. This product is manufactured in the United Kingdom and conforms to strict manufacturing standards, though no specific certifications are listed.

This hydraulic hand pump is suitable for use in industrial, construction, maintenance, and fluid power sectors where precise, high-pressure manual pumping is required. The pump’s hand operation with external load release valve controls hydraulic flow effectively.

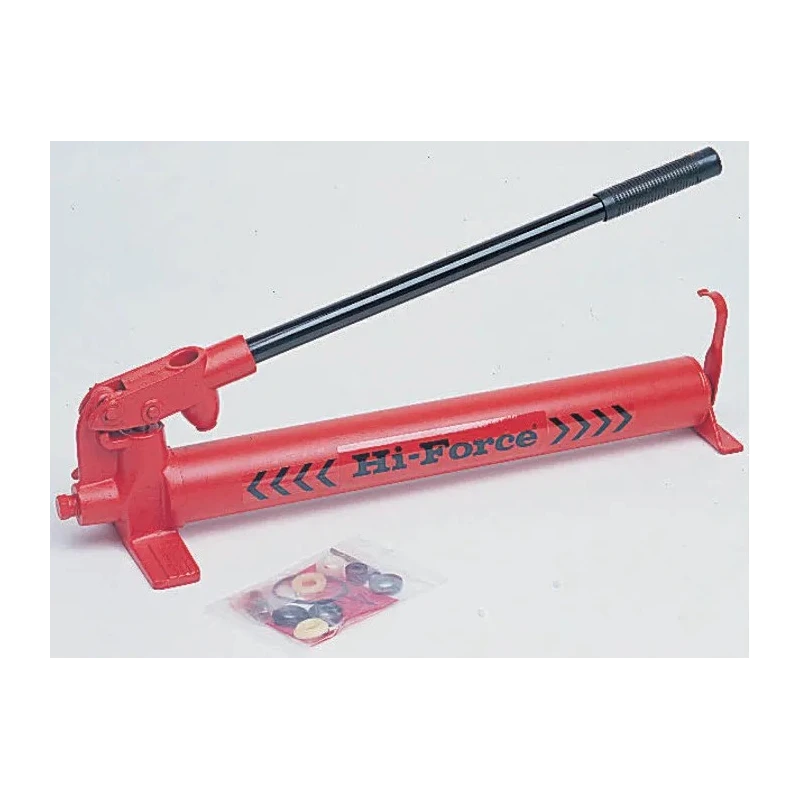

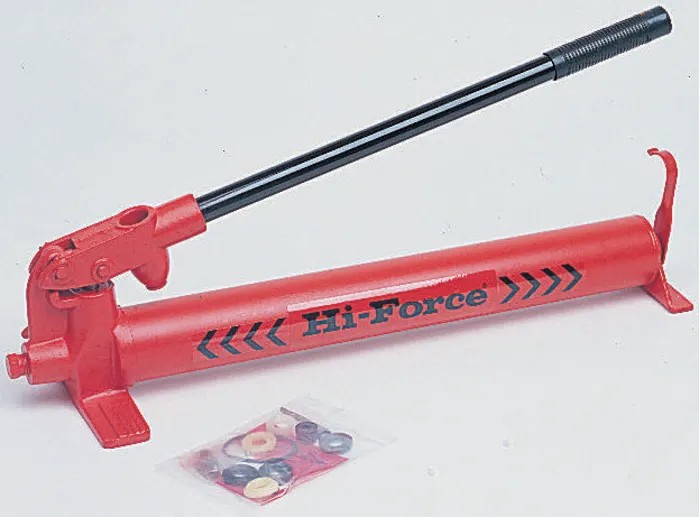

It supports maintenance and repair through available service kits specifically for stock no 807-889, HP110. Warning precautions advise care due to the extremely high pressures involved for safe usage. The pump is part of the HP series and covers a balance of performance and portability.
