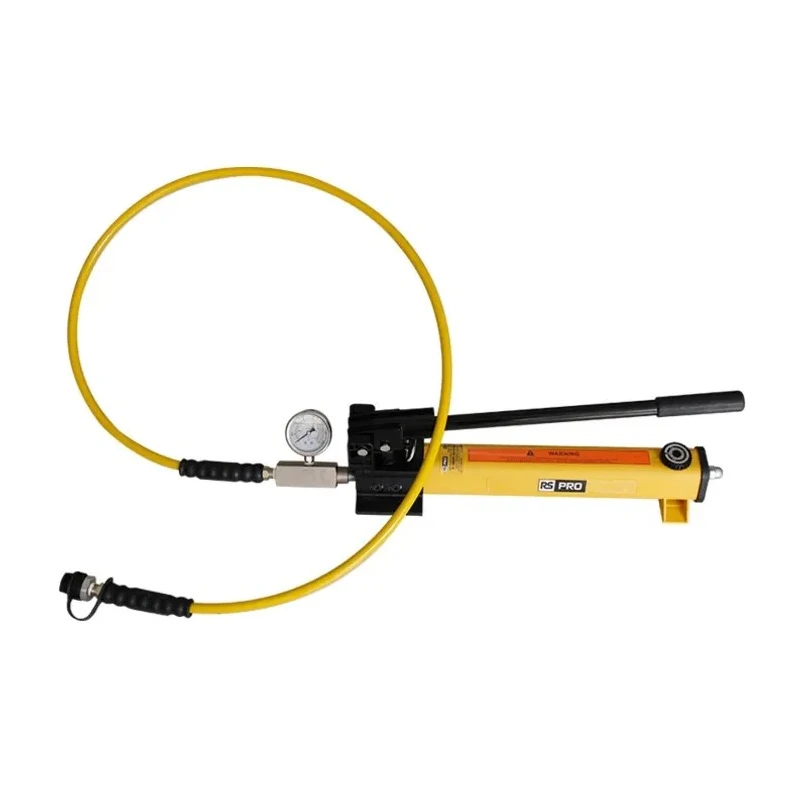

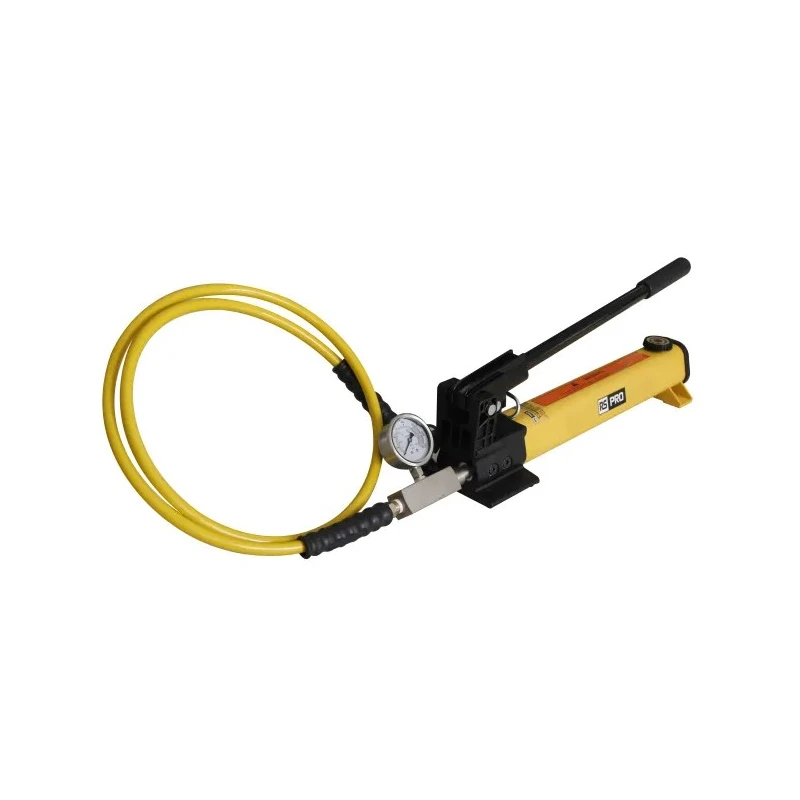

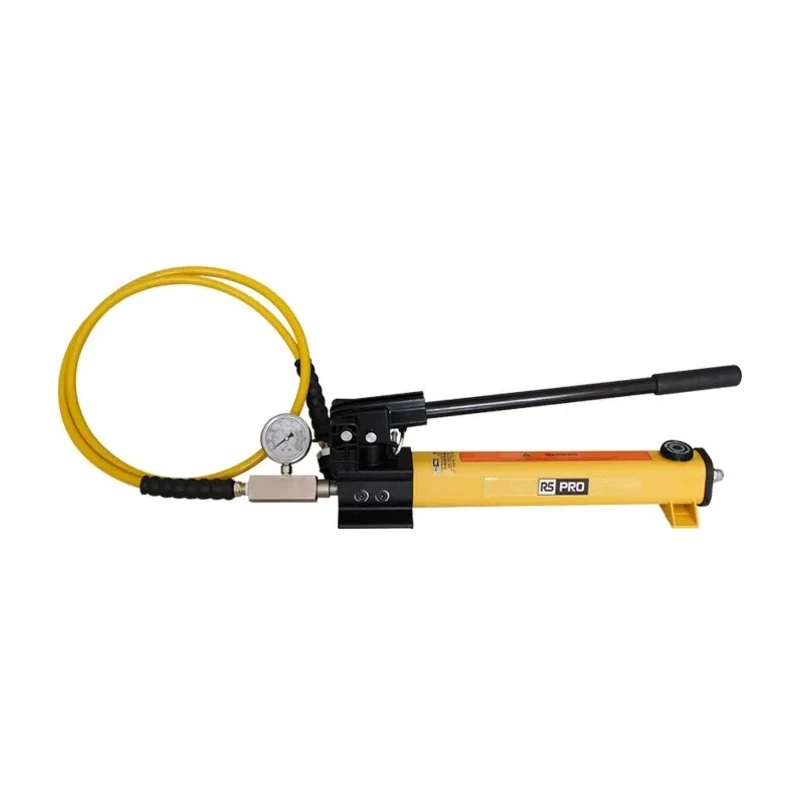

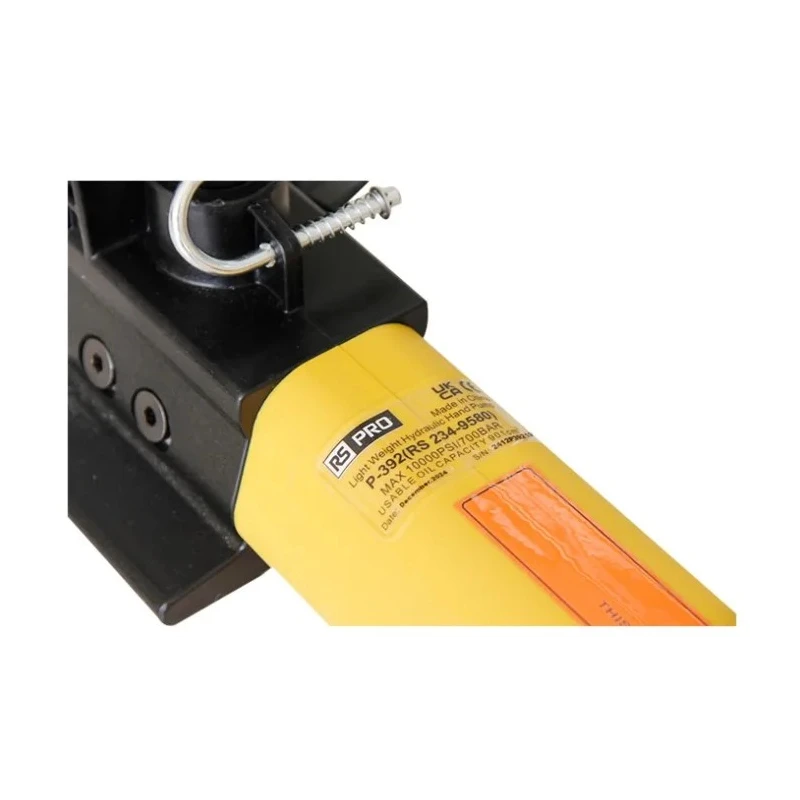

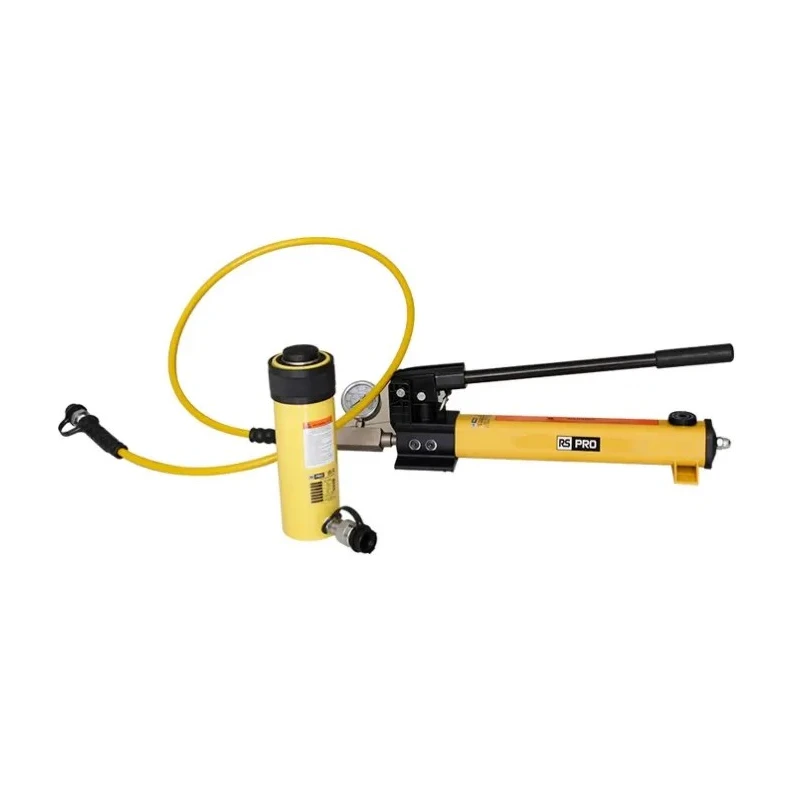

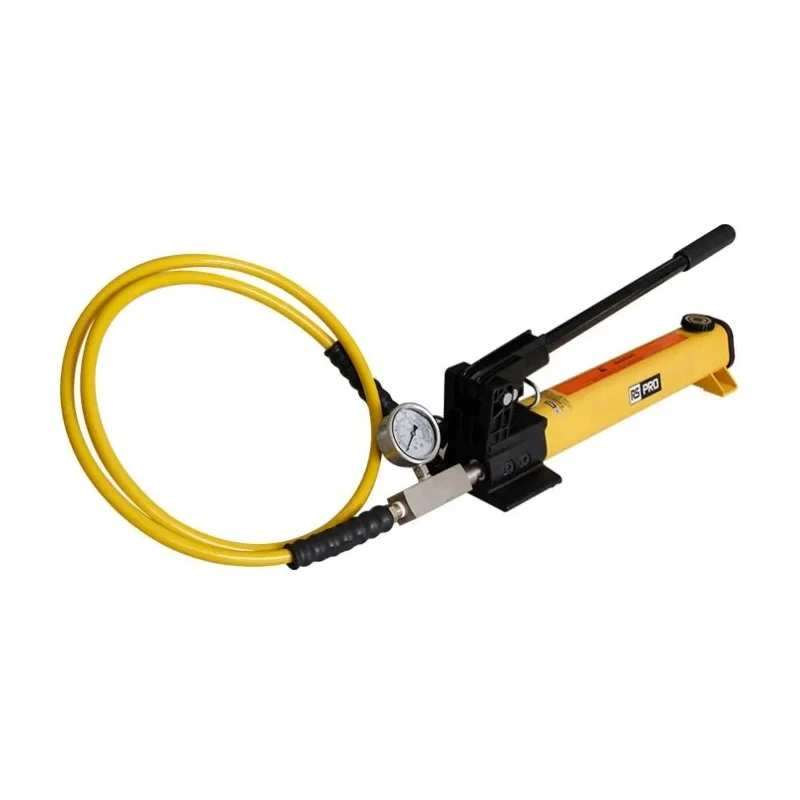

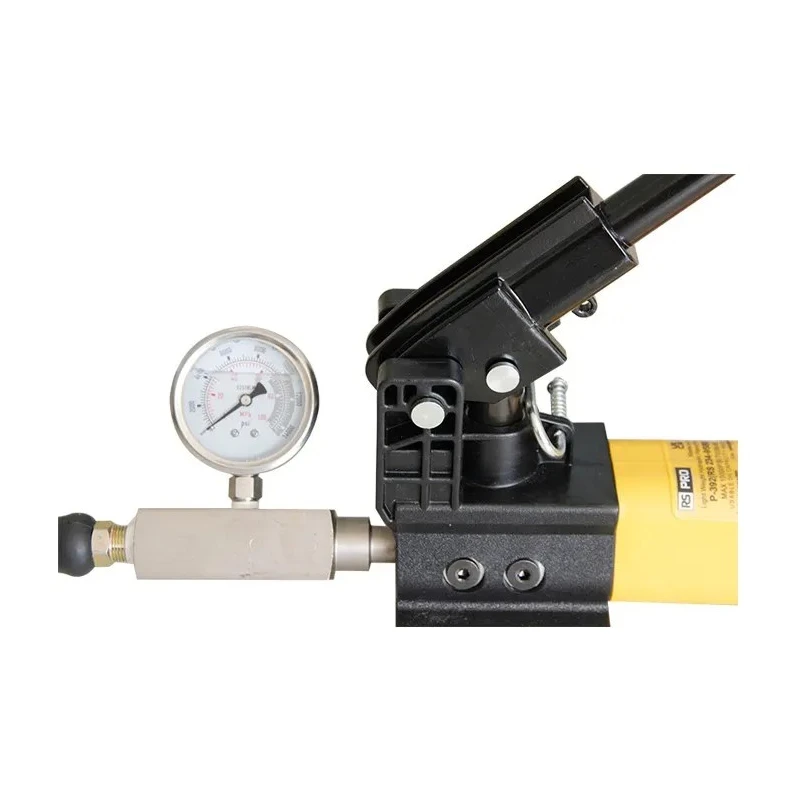

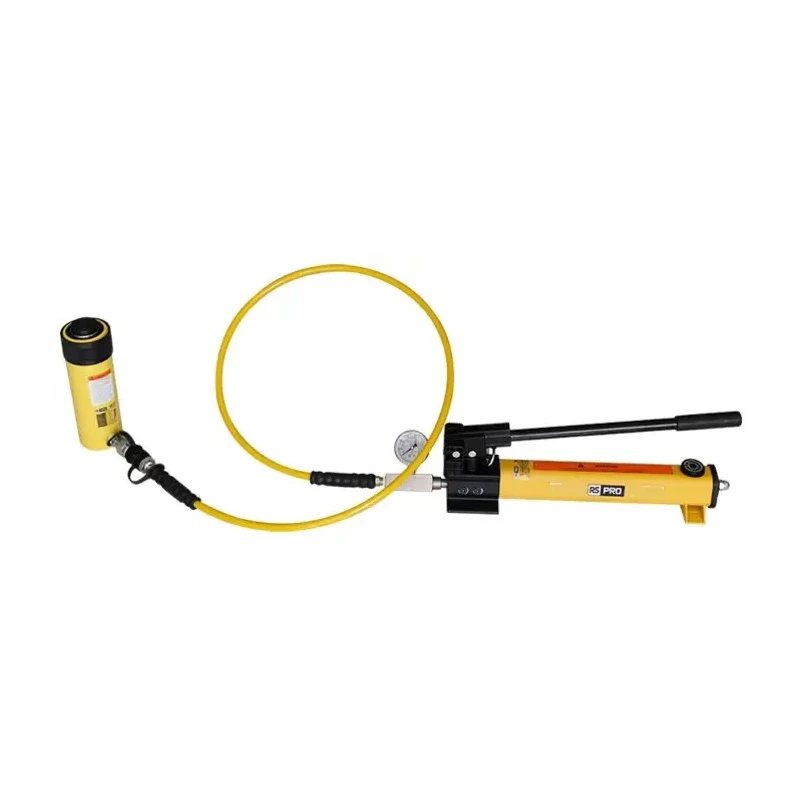

RS Pro Hydraulic Hand Pump, Two Speed Operation, 0.901 L Oil Capacity, 25.4 mm Cylinder Stroke, 700 bar Operating 234-9584

RS Pro 234-9584 Hydraulic Hand Pump is a high-performance, two-speed hydraulic pump designed for precise fluid power applications with a maximum operating pressure of 700 bar and a usable oil capacity of 0.901 L. Constructed from steel with a glass-filled nylon reservoir and a nylon encapsulated aluminium pump base, this pump ensures superior corrosion resistance and durability.

The pump features a 25.4 mm cylinder stroke and displacement per stroke of 11.26 cm³ and 2.47 cm³ for the first and second stages respectively, facilitating efficient hydraulic control with minimized operator effort of 42.2 kg maximum handle force.

Its compact construction with dimensions of 533 mm length, 127 mm width, and 157 mm height, combined with a manageable weight of 4.5 kg, makes it an ergonomic tool for various industrial uses including assembly, bending, cutting, and dismantling tasks.

This hydraulic hand pump is equipped with an internal pressure relief valve which protects against overload. Operating at two speeds with automatic switching, it is designed to reduce operator fatigue during extended use. The unit complies with international standards EN ISO 12100:2010, CE, EN 1494:2000+A1:2008 and UKCA, ensuring reliable and safe performance.

Ideal for pneumatic and hydraulic applications in construction, manufacturing, maintenance, and agricultural sectors, it comes with advanced features such as an NPT 3/8 outlet type and a robust steel pump material.

Features a 0.901 L usable oil capacity for efficient hydraulic fluid handling. Two-speed operation with automatic switching reduces operator fatigue. Steel pump body and glass-filled nylon reservoir ensure corrosion resistance and durability.

Includes internal pressure relief valve to prevent pump overload. Operates with 42.2 kg maximum handle effort for smooth user experience. Compact dimensions: Length 533 mm, Width 127 mm, Height 157 mm. Weighs 4.5 kg for easy portability and handling.

Compliant with EN ISO 12100:2010, CE, EN 1494:2000+A1:2008, and UKCA standards. Explore the range of RS Pro Hydraulic Pumps and power units at EnvMart for trusted industrial hydraulic solutions.
