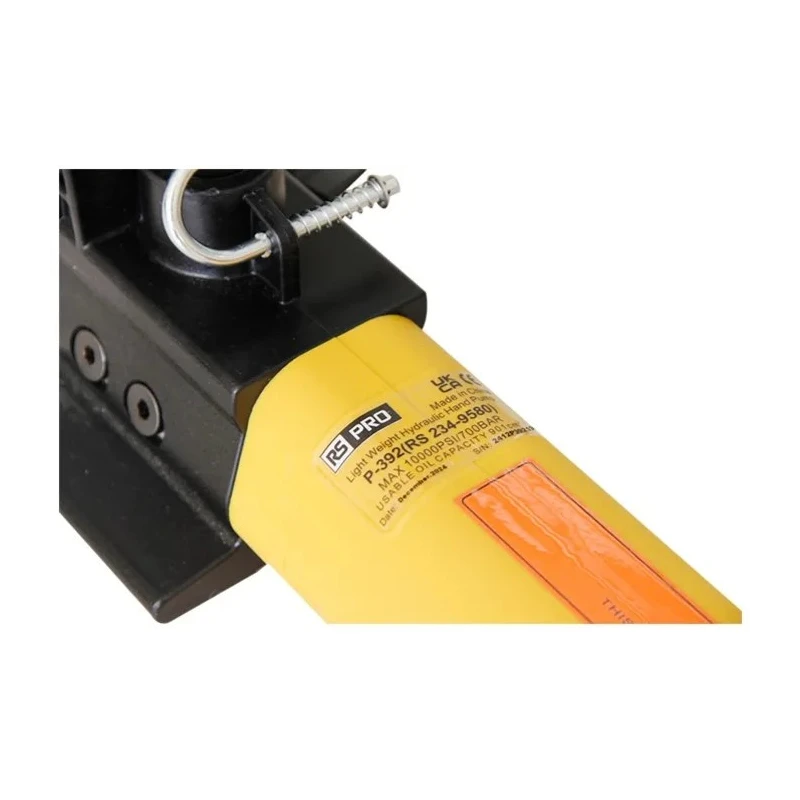

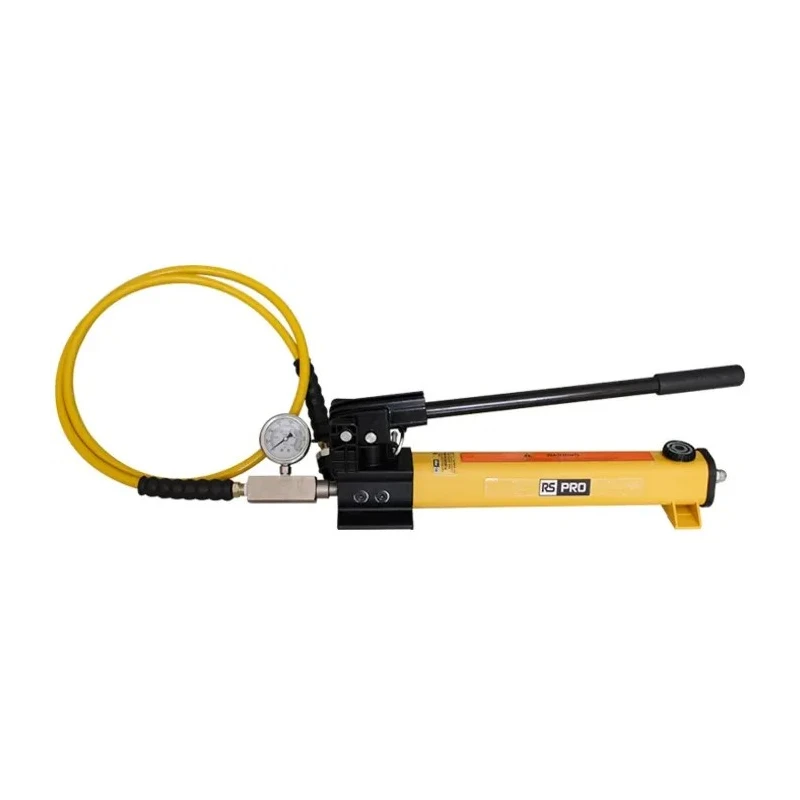

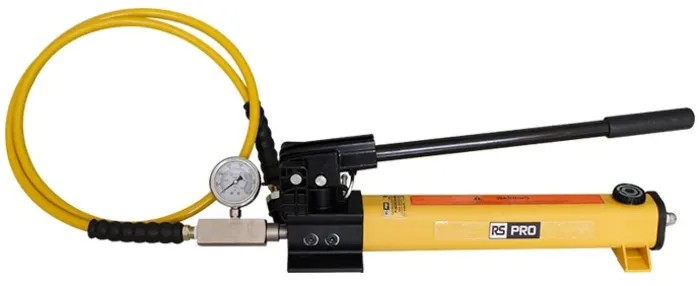

RS Pro Hydraulic Hand Pump 0.901 L Usable Oil Capacity, 25.4 mm Cylinder Stroke, 700 bar Maximum Operating Pressure 234-9582
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS Pro |
| Maximum Operating Pressure | 700 bar |
| Height | 157mm |
| Length | 533mm |
| Model | 234-9582 |
| Gross Weight | 4.5kg |
| Width | 127mm |
| Pump Type | Hand |
| Stroke | 54 mm |
| Oil Capacity | 78 cm³ |
| Interfaces | Landscaping |
| Pump Material | Steel |
| Outlet Type | NPT3/8 |
| Displacement Per Stroke 1st Stage | 11.26cm³ |
| Cylinder Effective Area | 14.5 cm2 |
| Usable Oil Capacity | 0.901L |
| Displacement Per Stroke 2nd Stage | 2.47cm³ |
| Maximum Handle Effort | 42.2kg |
| Cylinder Stroke | 25.4mm |
| Standards/ApprovalsEN 1494 | 2000+A1:2008, UKCA, EN ISO 12100:2010, CE |
| 1st Stage Operating Pressure | 13bar |
| 2nd Stage Operating Pressure | 700bar |
| Maximum Cylinder Capacity | 981kN |
| EN 1494 | 2000+A1:2008, UKCA, EN ISO 12100:2010, CE |
| Plunger Stroke | 25.4 mm |
| Plunger Type | Solid |
Key Features
- Equipped with a 25.4 mm cylinder stroke for efficient fluid displacement.
- Constructed from durable steel for long-lasting performance.
- Features a compact design measuring 533 mm length, 127 mm width, and 157 mm height.
- Lightweight at 4.5 kg to minimize operator fatigue during use.
- Includes a safety valve to prevent pump overload.
- Utilizes a two-speed operation with automatic switching for enhanced control.
- Designed with a non-conductive fibre-glass handle for operator safety.
- Ideal for industrial environments including construction, manufacturing, and fluid power operations.
Product Description

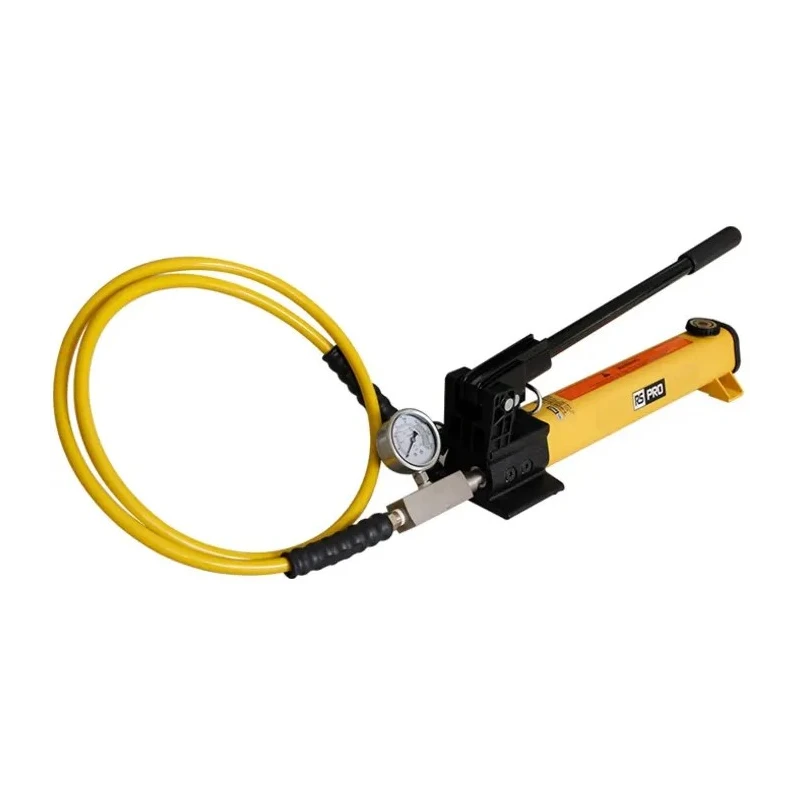

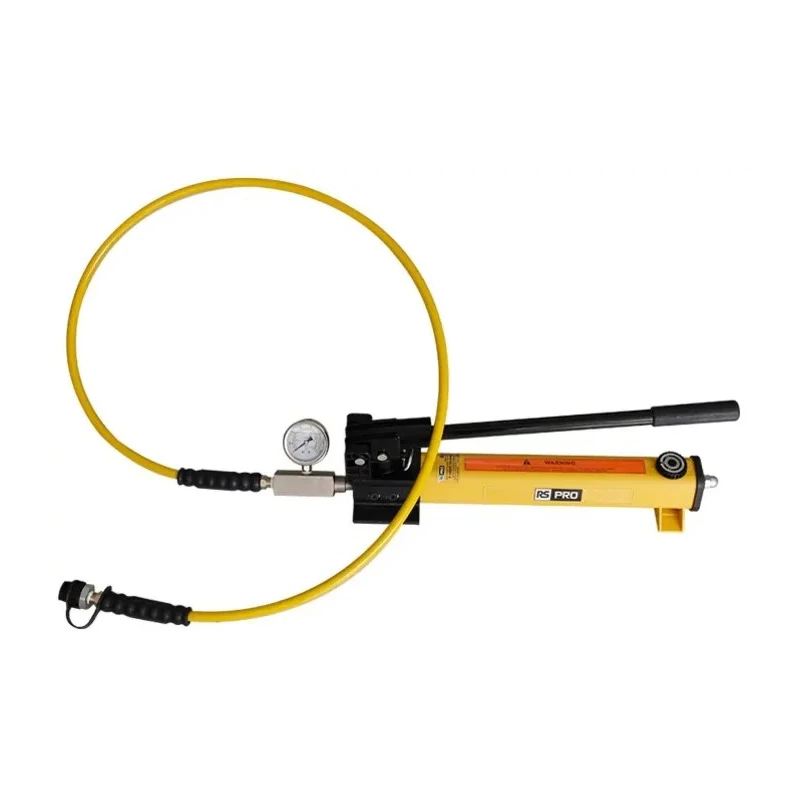

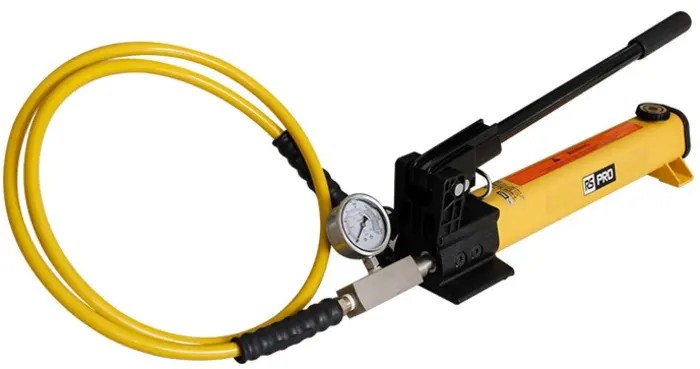

RS Pro 234-9582 Hydraulic Hand Pump is a high-quality, compact hand-operated pump designed for precise hydraulic applications. With a usable oil capacity of 0.901 L and a maximum operating pressure of 700 bar, this pump delivers reliable performance for hydraulic cylinder operation and fluid power tasks.
The pump features a two-speed operation with automatic switching, including a 25.4 mm cylinder stroke, and displacement per stroke values of 11.26 cm³ for the first stage and 2.47 cm³ for the second stage. The pump is constructed with corrosion-resistant steel and incorporates an internal pressure relief valve for safe and efficient operation.
Its ergonomic design with a non-conductive fibre-glass handle reduces operator fatigue, making it suitable for extended use in industrial settings such as manufacturing, construction, and maintenance operations.
Two-speed operation with automatic switching enhances control and efficiency. Internal pressure relief valve prevents overload conditions. Durable steel construction provides long service life and corrosion resistance. Compact size and lightweight design improve portability and ease of use.

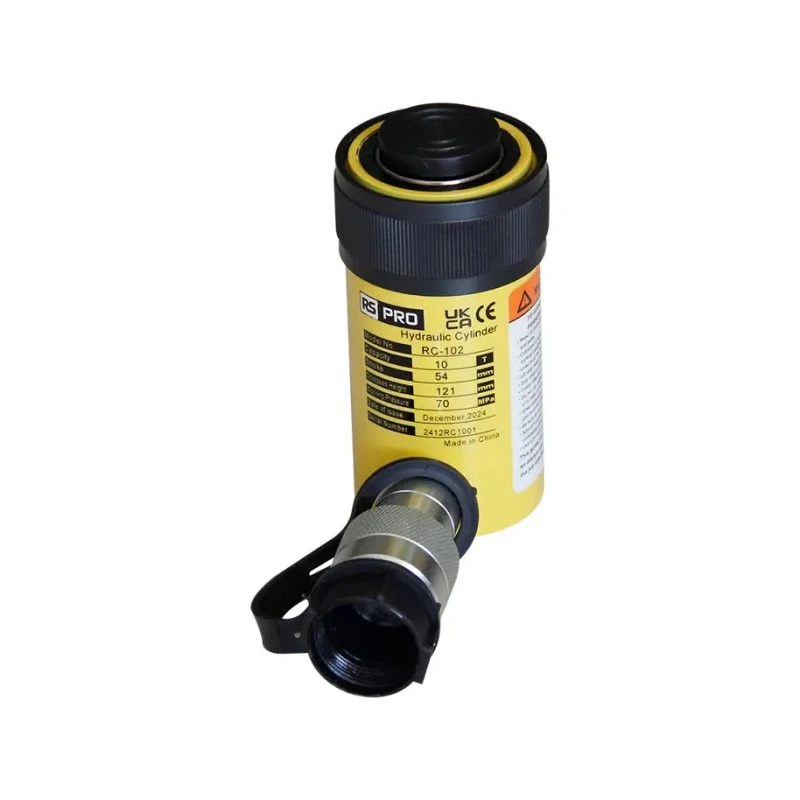

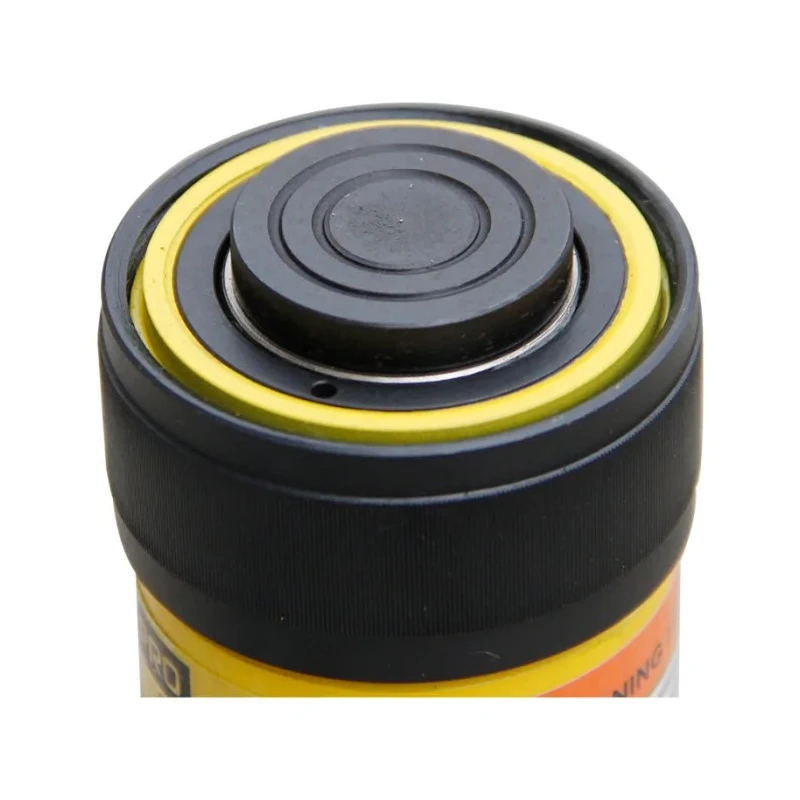

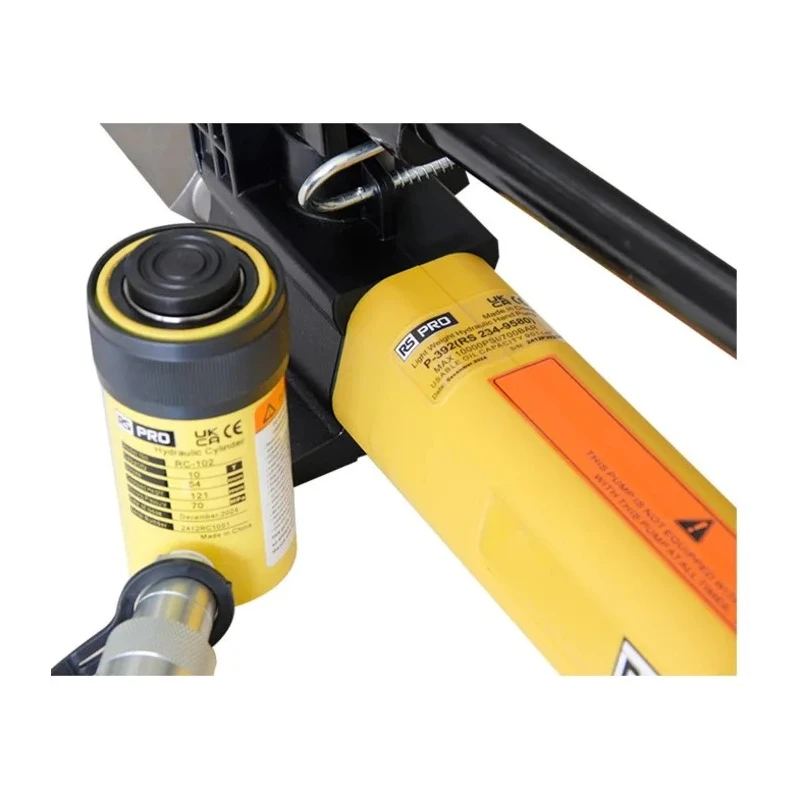

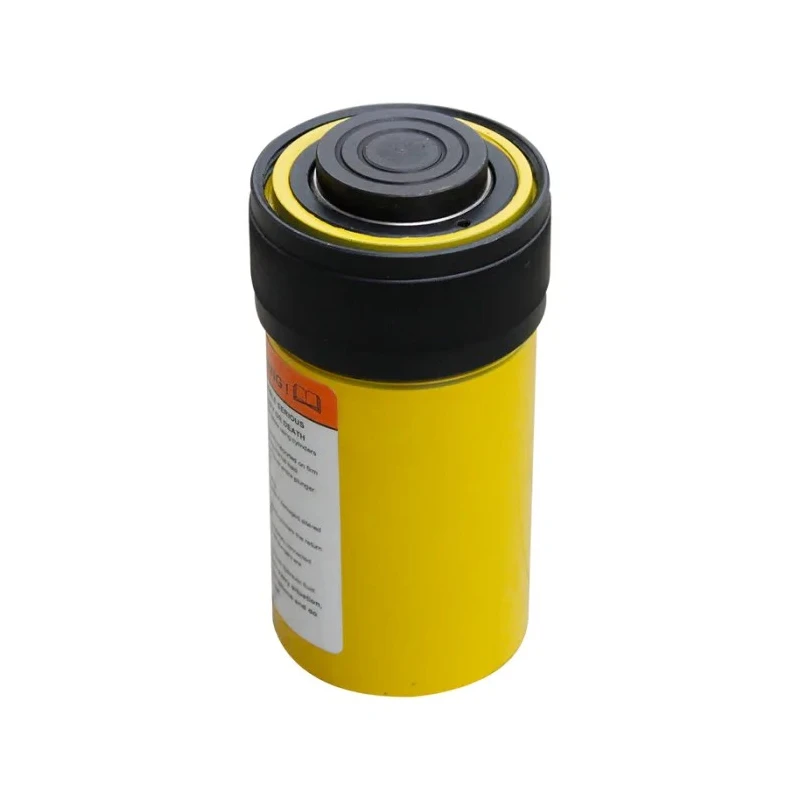

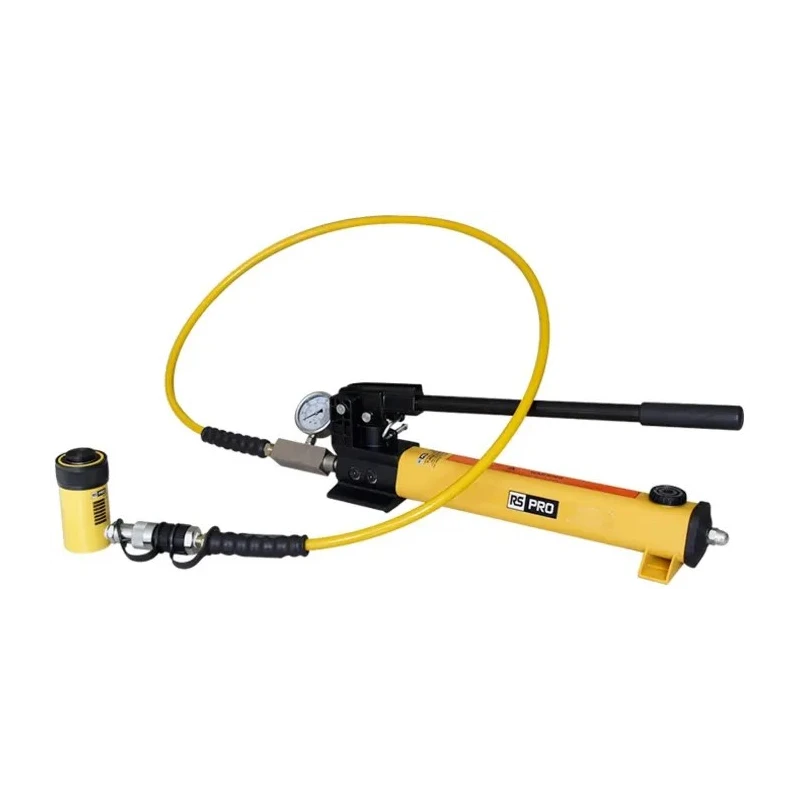

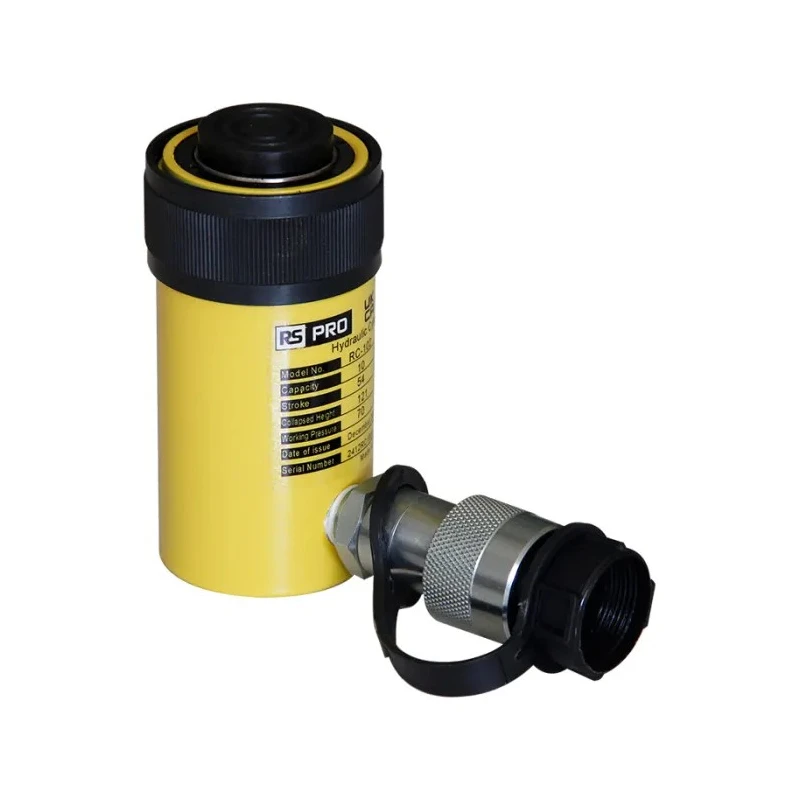

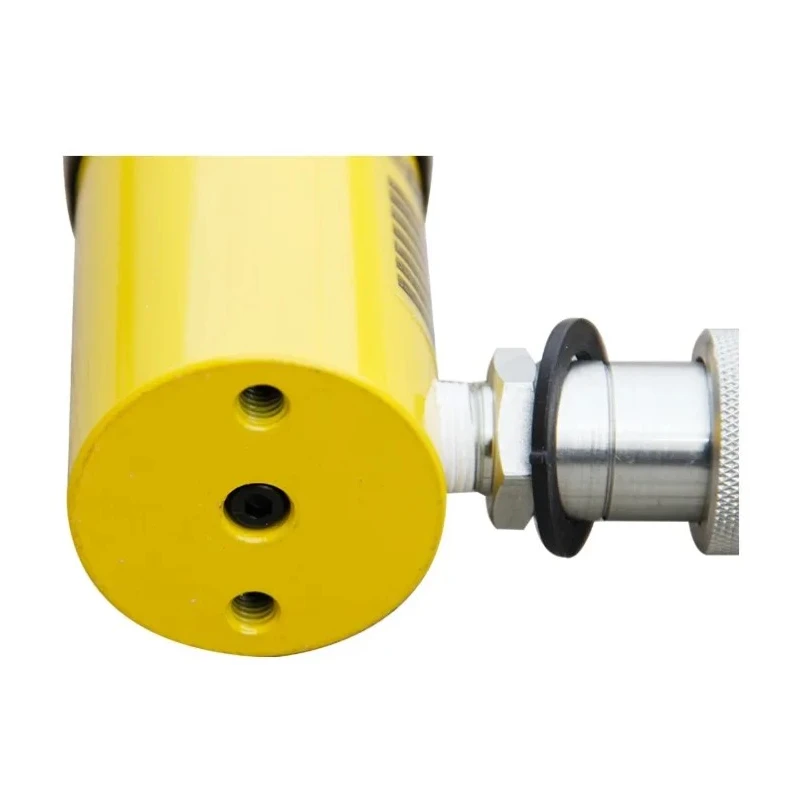

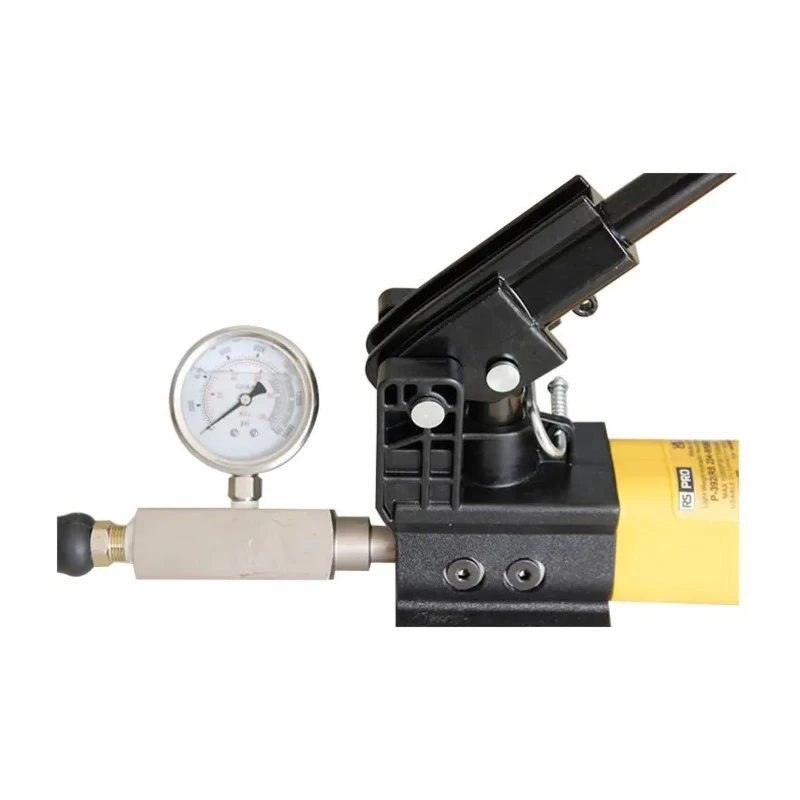

Compliance with international safety and quality standards ensures reliability. Includes a 10-ton single-acting hydraulic cylinder with a 54 mm stroke and 78 cm³ oil capacity for versatile lifting tasks. Equipped with a pressure gauge, safety hose, and quick-release couplings for complete system readiness.
The RS Pro 234-9582 Hydraulic Hand Pump is ideal for fluid power and tool applications requiring precise pressure control, including load positioning, jacking, and lifting in industrial and construction environments. Its robust features and ergonomic design make it a cost-effective and practical choice for hydraulic power needs.
Explore more Hydraulic Pumps and power units in EnvMart for comprehensive fluid power solutions designed to meet diverse industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this hydraulic hand pump is 700 bar.
This model has a usable oil capacity of 0.901 liters.
The dimensions of this hydraulic pump are 533 mm in length, 127 mm in width, and 157 mm in height.
The cylinder stroke length of this model is 25.4 mm.
This unit weighs 4.5 kg, making it lightweight for ease of use.
The displacement per stroke for the first stage is 11.26 cm³ and for the second stage is 2.47 cm³.
It includes an internal pressure relief valve to prevent overload conditions and enhance safe operation.
It features a non-conductive fibre-glass handle for operator safety.
It complies with EN 1494:2000+A1:2008, UKCA, EN ISO 12100:2010, and CE standards.
The maximum cylinder capacity of this pump is 981 kN.
This model is a hand-operated hydraulic pump.
It is suitable for industrial applications such as load positioning, jacking, and lifting in construction and manufacturing environments.
