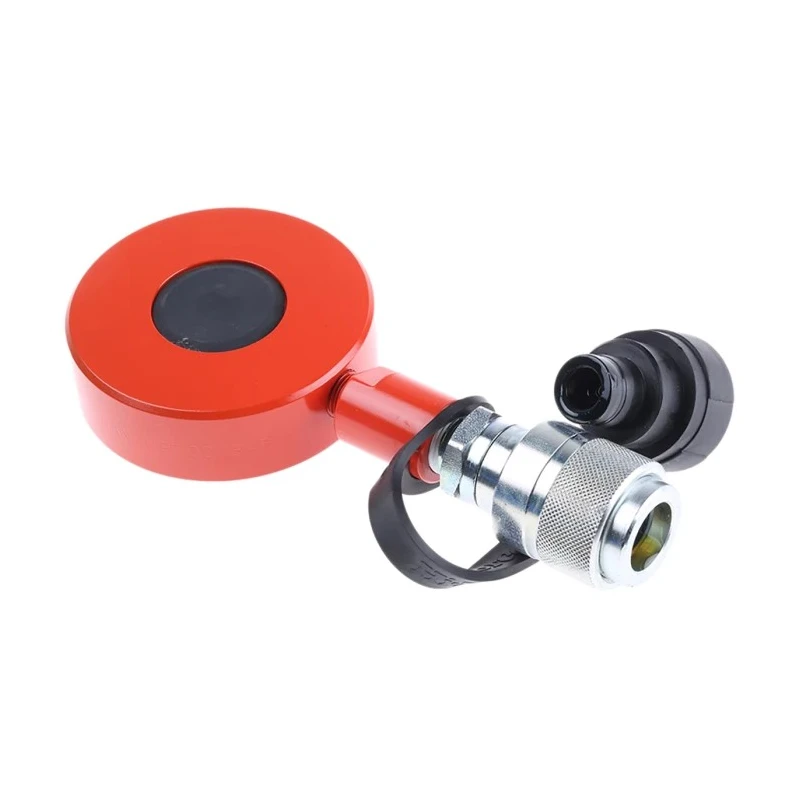

Hi-Force Portable Low Height Hydraulic Cylinder Single Acting 10t Capacity 6mm Stroke HVL10

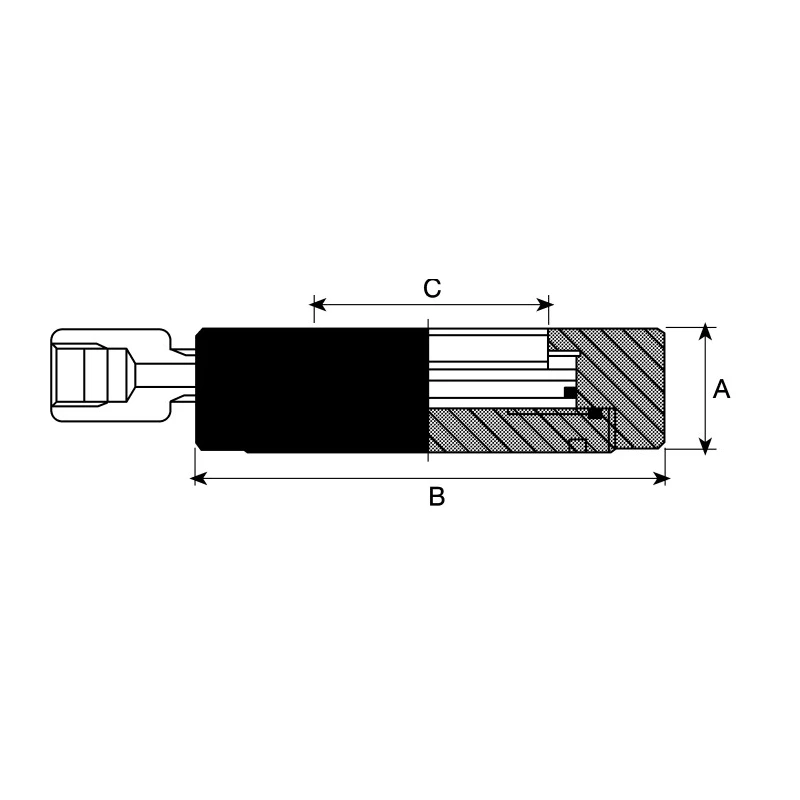

Hi-Force HVL10 Portable Low Height Hydraulic Cylinder is a single acting hydraulic cylinder designed for applications requiring compact form factor with a capacity of 10 tonnes and a stroke length of 6 mm. Manufactured from high strength alloy steels with a chrome plated piston rod, it offers excellent corrosion resistance and reliability. The cylinder features a very low closed height of 28 mm and extends to 34 mm, making it ideal for use in very confined work areas where traditional cylinders may not fit.

This cylinder operates at a maximum pressure of 700 bar and includes pressure-activated anti-extrusion seals to enhance durability and performance. Equipped with heavy duty return springs, the cylinder piston retracts fully and is restrained at full extension by steel stop rings, improving its resistance to side loads.

The hydraulic connections feature 3/8 inch NPT ports equipped with a high flow, quick release female half coupler as standard to facilitate quick and secure hose attachment. With a cylinder effective area of 14.4 cm² and oil capacity of 9 cm³, the HVL10 offers efficient hydraulic operation.

Each unit is rigorously pressure tested to 125% of its working pressure to ensure safety and reliability in demanding industrial environments such as manufacturing, construction, HVAC maintenance, and other fluid power applications.

The cylinder’s extremely low height design enables its use in restricted spaces without compromising lifting force. High strength alloy steel construction enhances structural integrity and service life. Spring return mechanism ensures quick piston retraction for repeated cyclic operations.

Chrome plated piston rods provide corrosion resistance in harsh environments. High pressure rating up to 700 bar supports demanding hydraulic tasks reliably. Standard hydraulic couplings allow seamless integration with other fluid power components.

This hydraulic cylinder from Hi-Force is a robust solution for industrial fluid power needs where space constraints and high force are critical factors. It is suitable for applications in industrial maintenance, manufacturing processes, and hydraulic system installations. Explore more Hydraulic Cylinders from Hi-Force and other brands on EnvMart for your specific applications.
