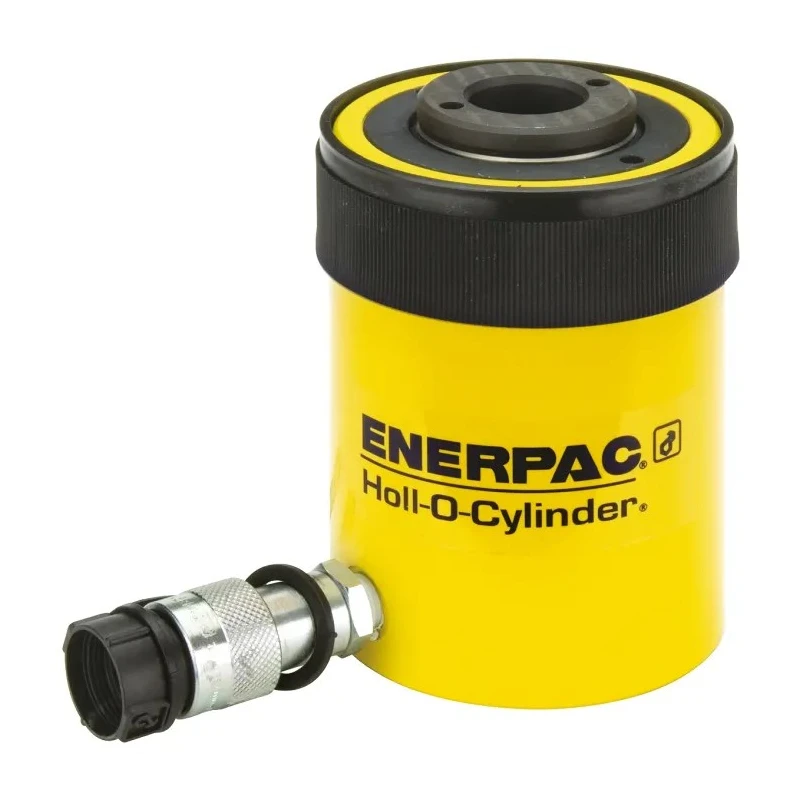

Enerpac Portable Hollow Plunger Hydraulic Cylinder Single Acting 12 t Capacity 700 bar Pressure RCH123

Enerpac RCH123 portable hollow plunger hydraulic cylinder is a precision-engineered single acting cylinder designed for high pressure industrial applications up to 700 bar. It features a durable construction from high strength alloy steel finished with baked enamel to resist environmental wear and corrosion. The cylinder includes a chrome plated plunger that ensures resistance to wear and rust, significantly extending operational life in demanding conditions.

The hardened saddle design eliminates piston jamming by maintaining smooth operation within the top bearing, supported by robust heavy-duty return springs which facilitate rapid piston retraction, improving operational efficiency. Port connections use standardized 3/8-18 NPT threads equipped with a female high flow coupler to ensure reliable hydraulic connectivity.

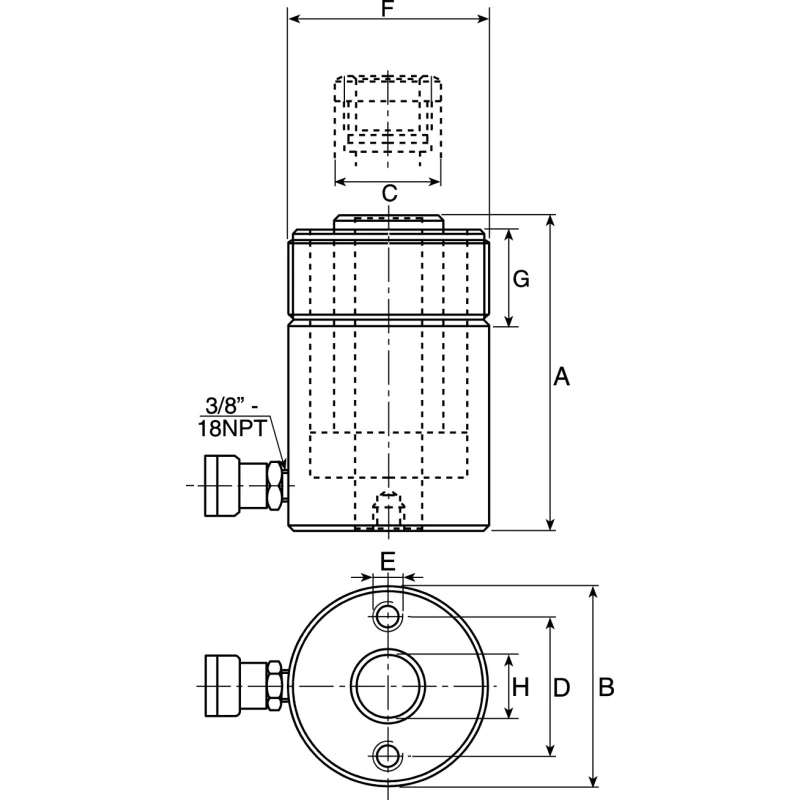

With a cylinder capacity rated at 12 tons (US short ton), the RCH123 model features a 76 mm stroke length and an effective cylinder area of 17.9 cm², accommodating incremental mechanical force in fluid power systems. The cylinder's compact form factor includes a closed height of 184 mm and an extended height of 260 mm with an outside diameter of 69 mm, enabling use in constrained industrial, construction, and maintenance environments.

Weighing only 4.4 kg, this Enerpac hydraulic cylinder offers excellent portability without compromising ruggedness. It conforms to ANSI B30.1 safety standards for hydraulic equipment, ensuring reliable and safe use in a variety of industrial sectors including manufacturing, heavy equipment servicing, and metal fabrication.

Oil capacity of 136 cm³ ensures consistent hydraulic fluid volume for effective actuation. The portable hollow plunger hydraulic cylinder is ideal for precision lifting, pressing, and clamping operations requiring controlled linear motion and substantial mechanical force.

Manufactured from high-strength alloy steel with baked enamel finish. Chrome plated plunger offers superior wear and rust resistance. Hardened saddles prevent piston jamming during extended use. Heavy-duty return springs enable fast and reliable piston retraction.

Standard 3/8-18 NPT port connections with female high flow coupler fittings. Designed and tested to ANSI B30.1 safety standards for hydraulic cylinders. Compact design with 76 mm stroke length and 12 t capacity for industrial applications.

Lightweight at 4.4 kg, facilitating portability and ease of handling. Operates up to a maximum pressure of 700 bar for high force output.

For users requiring durable, reliable high pressure Hydraulic Cylinders for industrial fluid power tasks, the Enerpac RCH123 model offers excellent performance backed by trusted engineering standards. Explore more on EnvMart for a comprehensive range of Enerpac hydraulic tools and accessories.
